Further procedure:

Connect the appropriate
cable grommets to all cables
that will be connected to the
DLT-V83.

Insert all cables into the DLT-V83 connection points.

Insert the cable grommets and cables into the outlets of the strain relief rail.
Tips for running the cables:
Try to make a small bend (a loop) when laying the cables. This supports the strain relief and
prevents the cables from being loosened at the connection points when too much force is
exerted.
Exception:
The power supply cable is relatively
stiff and should be straight (see
figure).

Try to lay all cables parallel to
each other without crossing
each other.

Close off the unused cable
outlets with dummy grommets.
Advantech-DLoG

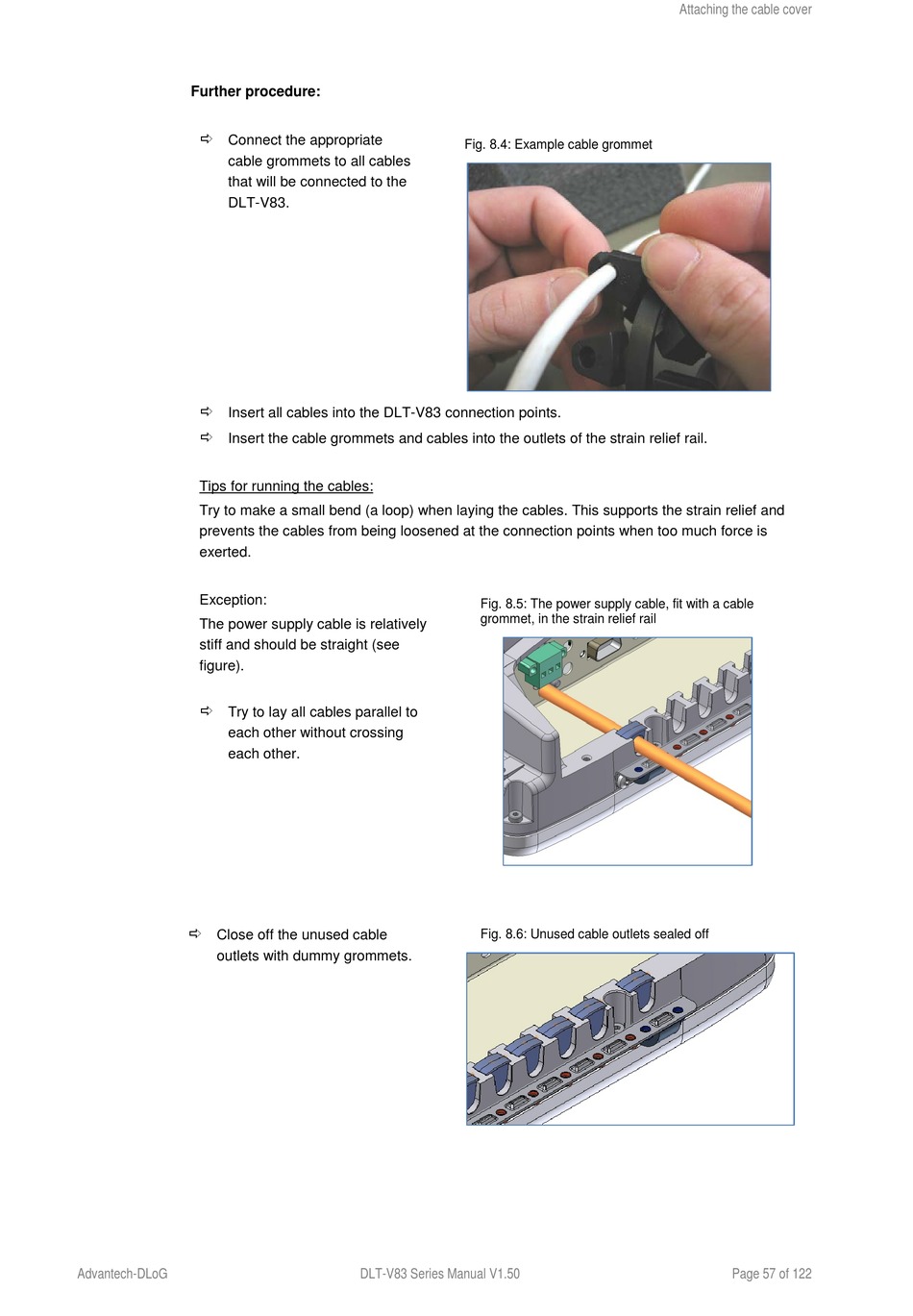

Fig. 8.4: Example cable grommet

Fig. 8.5: The power supply cable, fit with a cable
grommet, in the strain relief rail

Fig. 8.6: Unused cable outlets sealed off
