Relay Connection - Danfoss FC 102 Design Manual

Electrical Installation

6.1.5 Relay Connection

To set relay output, see parameter group 5-4* Relays.
No. 01 - 02
01 - 03
04 - 05
04 - 06
Table 6.18 Description of Relays
6 6

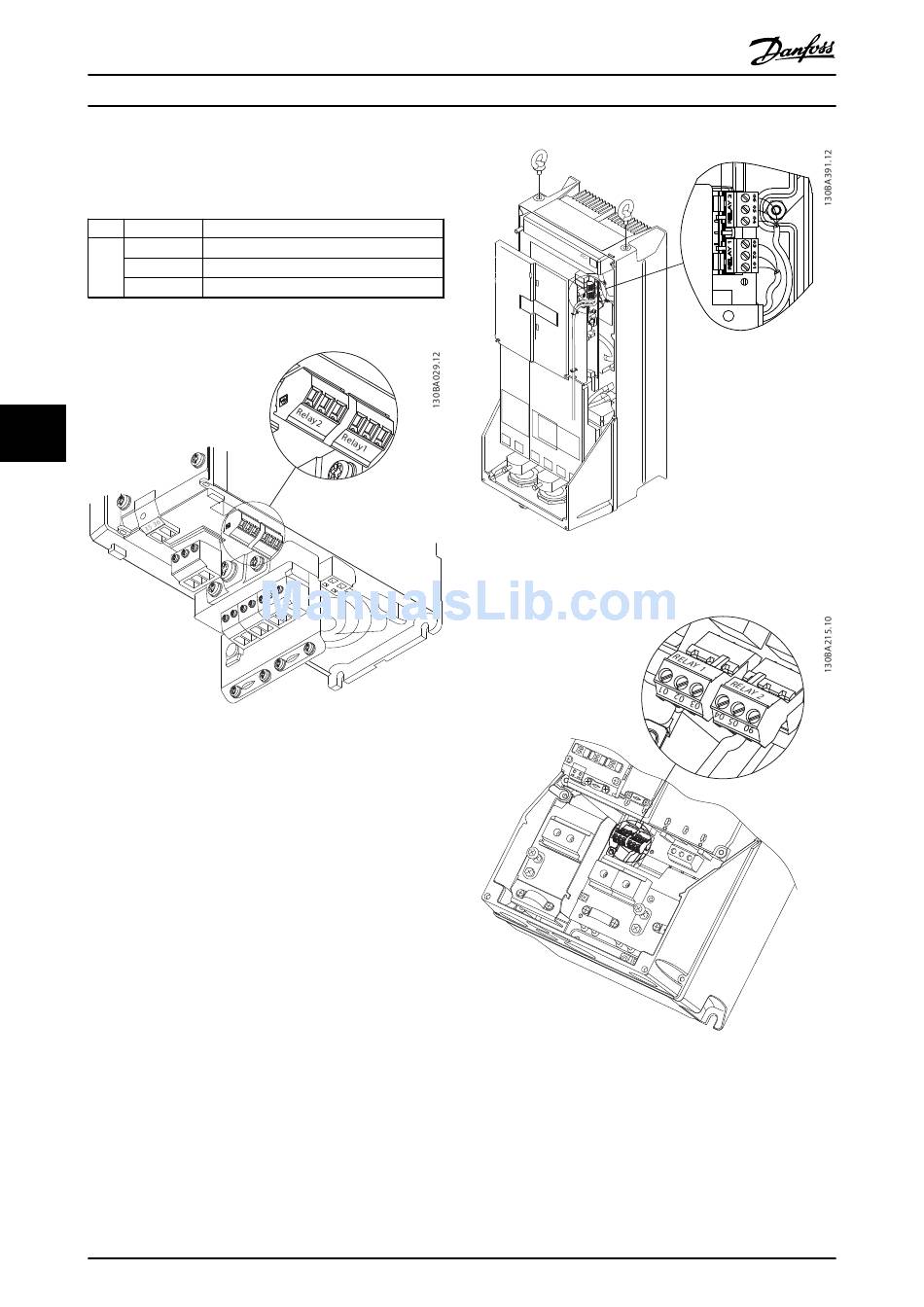

Illustration 6.36 Terminals for Relay Connection
(Enclosure Types A1, A2 and A3).
94
Design Guide
make (normally open)
break (normally closed)
make (normally open)
break (normally closed)
Danfoss A/S © Rev. 06/2014 All rights reserved.
Illustration 6.37 Terminals for Relay Connection
(Enclosure Types C1 and C2).
Illustration 6.38 Terminals for Relay Connection
(Enclosure Types A5, B1 and B2).
MG11BC02
