Electrical Wiring; Remote Mounting Kit For Lcp - Danfoss FC 102 Design Manual

Selection

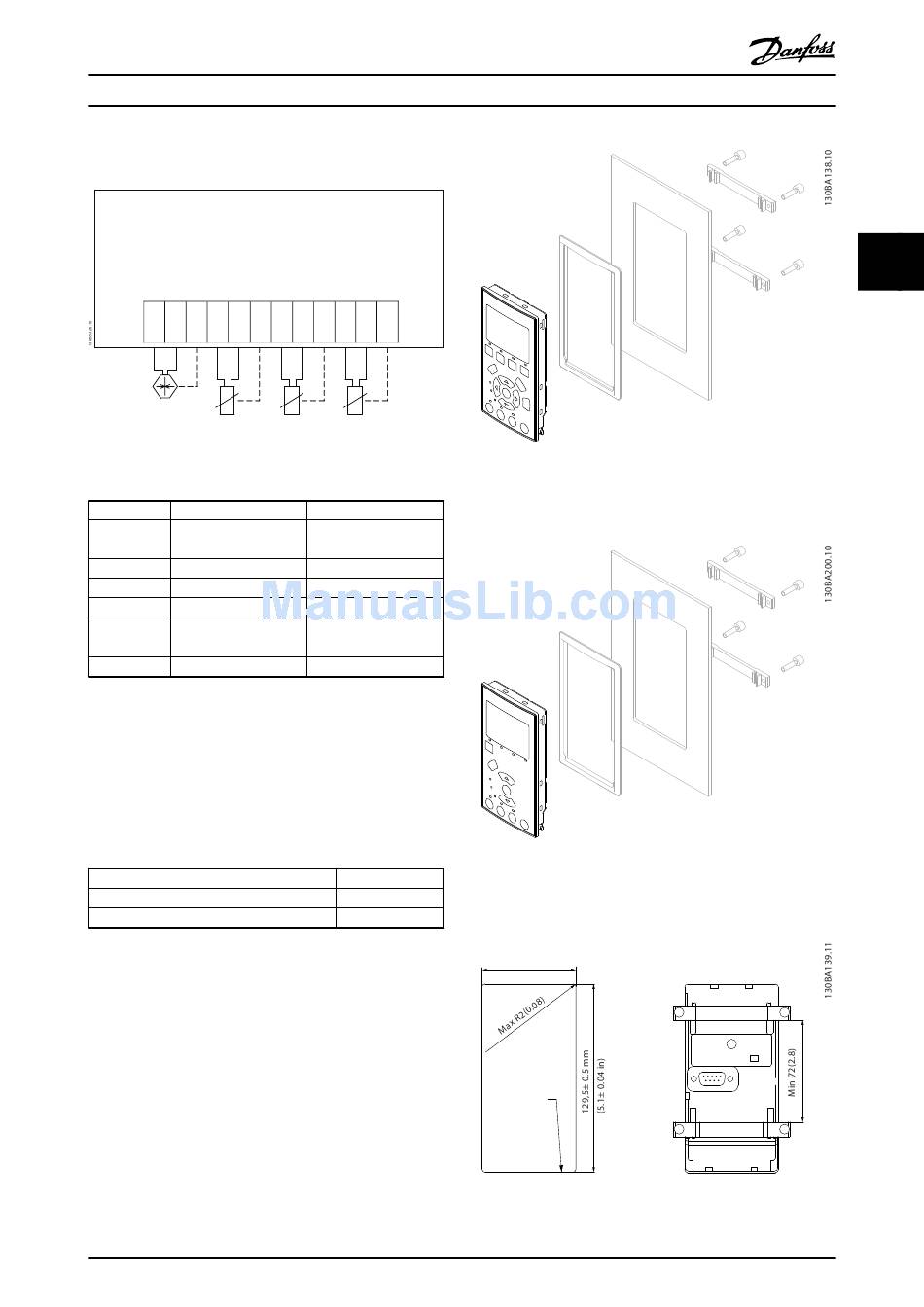

3.1.11.3 Electrical Wiring

MCB 114
Sensor Input
SW. ver. xx.xx
VDD I IN GND TEMP WIRE
GND TEMP
1 1
X48/ 1 2 3 4 5 6
4-20mA
2 or 3
2 or 3
wire
wire
Illustration 3.15 Electrical Wiring
Terminal Name
1 VDD
2 I in
3 GND
4, 7, 10 Temp 1, 2, 3
5, 8, 11 Wire 1, 2, 3
6, 9, 12 GND
Table 3.10 Terminals

3.1.12 Remote Mounting Kit for LCP

The LCP can be moved to the front of a cabinet by using
the remote built-in kit. The enclosure is the IP66. The
fastening screws must be tightened with a torque of max.
1 Nm.
Enclosure
Max. cable length between and unit
Communication std
Table 3.11 Technical Data
MG11BC02
Design Guide
Option B
Code No. 130B1272
WIRE GND TEMP WIRE GND
2 2 3 3
7 8 9 10 11 12
2 or 3
2 or 3
wire wire
Function
24V DC to supply
4-20mA sensor
4-20mA input
Analog input GND
Temperature input
rd
3 wire input if 3 wire
sensors are used
Temp. input GND
IP66 front
3 m
RS-485
Danfoss A/S © Rev. 06/2014 All rights reserved.
Illustration 3.16 LCP Kit with Graphical LCP, Fasteners, 3 m
Cable and Gasket
Ordering No. 130B1113
Illustration 3.17 LCP Kit with Numerical LCP, Fasteners and
Gasket
Ordering no. 130B1114
64,5± 0.5 mm
(2.54± 0.04 in)
Panel
cut out
Illustration 3.18 Dimensions
3 3
