Selection
Height A
Enclosure type
[mm]
A2 372
A3 372
B3 475
B4 670
C3 755
C4 950
Table 3.13 Dimensions
* If option A/B is used, the depth increases (see
chapter 5.1.2 Mechanical Dimensions for details)
A
B
C
D
E

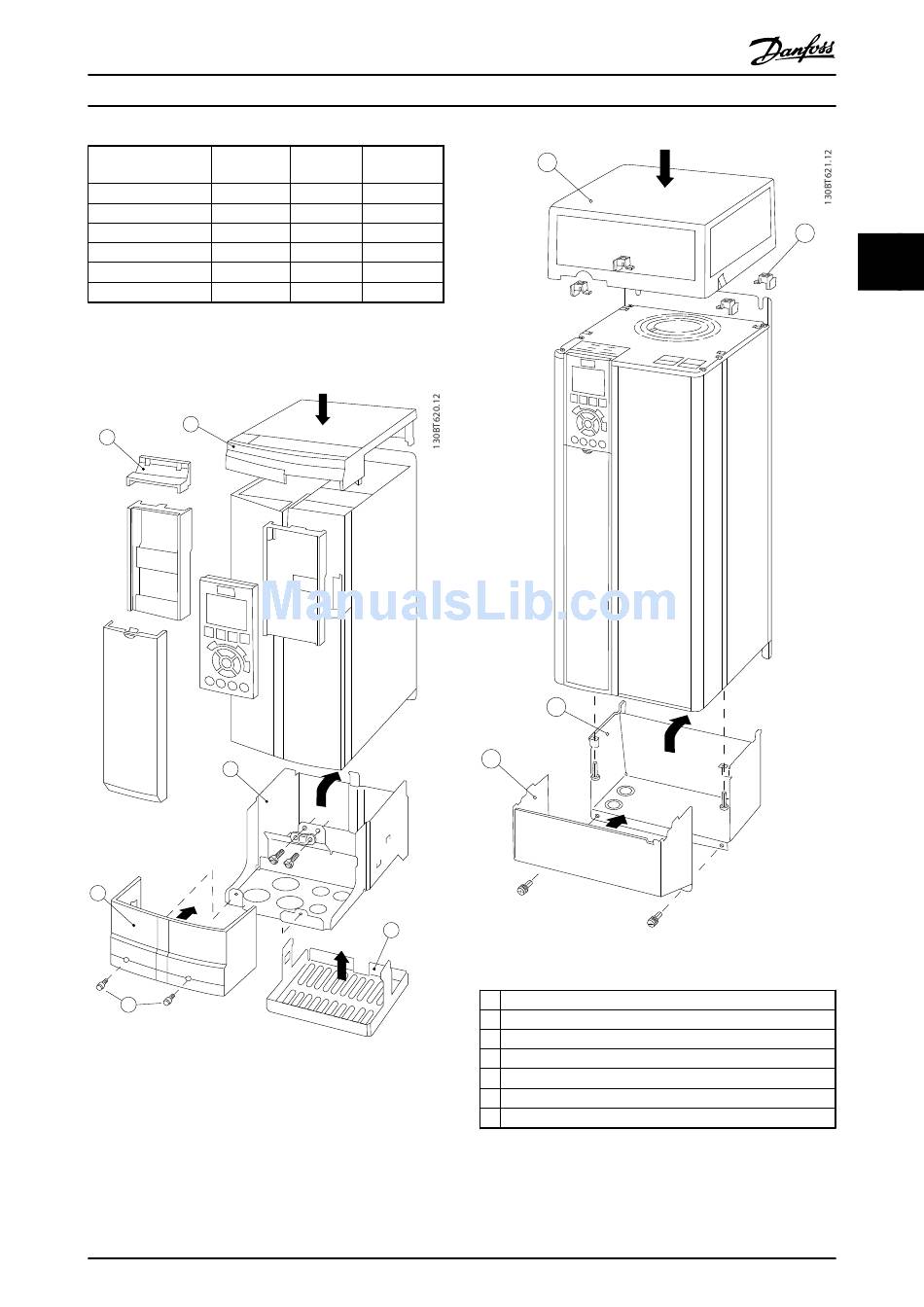

Illustration 3.21 Enclosure Type B3
MG11BC02
Design Guide
Width B Depth C*
[mm] [mm]
90 205
130 205
165 249
255 246
329 337
391 337
F
Danfoss A/S © Rev. 06/2014 All rights reserved.
A
C
D
Illustration 3.22 Enclosure Types B4 - C3 - C4
A Top cover
B Brim
C Base part
D Base cover
E Screw(s)
F Fan cover
G Top clip
Table 3.14 Legend to Illustration 3.21 and Illustration 3.21
