Danfoss FC 102 Design Manual page 59

Selection

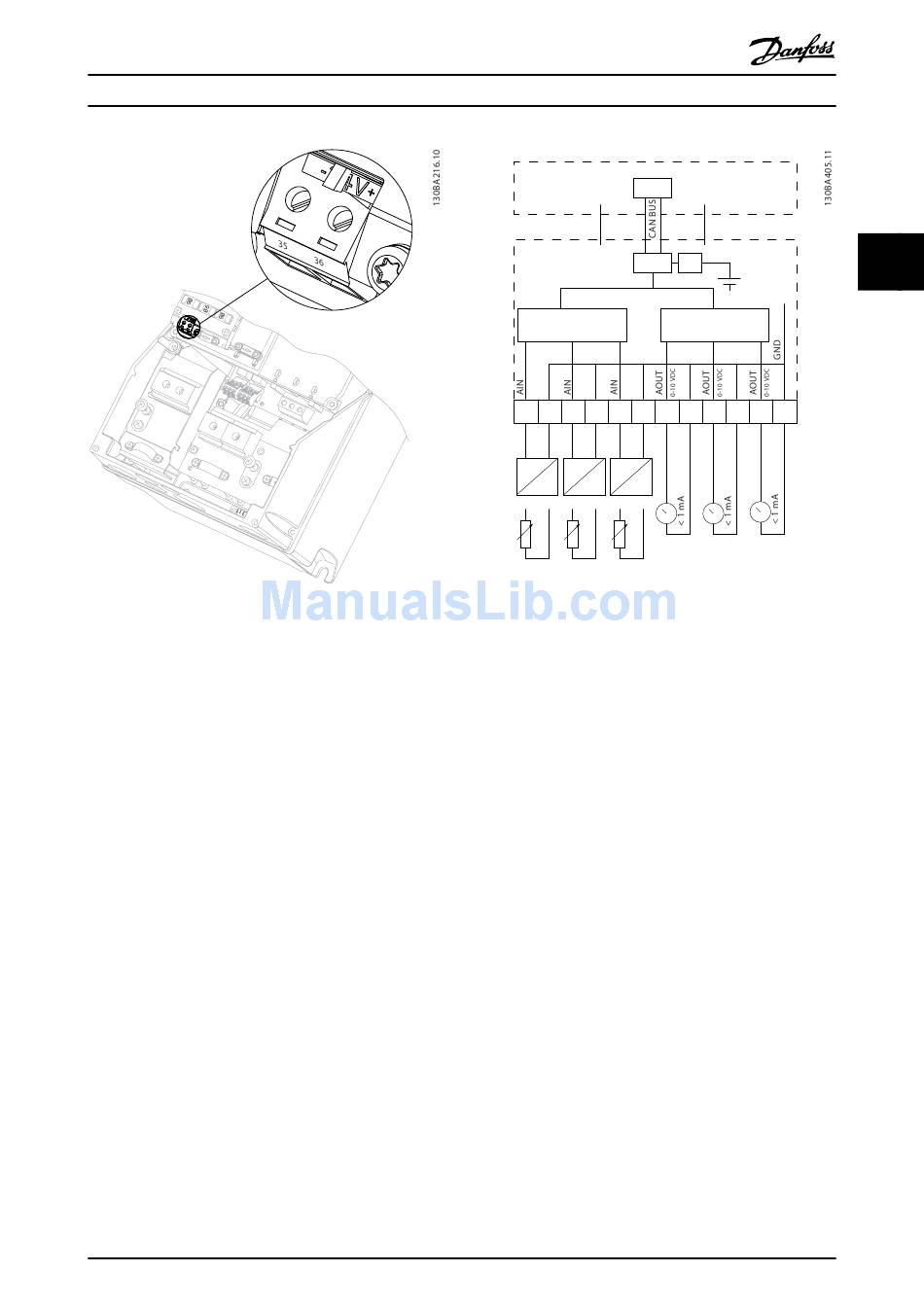

Illustration 3.11 Connection to 24 V Back-up Supplier (A5-C2).
3.1.9 Analog I/O option MCB 109
The Analog I/O card is to be used in e.g. the following
cases:
•
Providing battery back-up of clock function on
control card
•
As general extension of analog I/O selection
available on control card, e.g. for multi-zone
control with 3 pressure transmitters
•
Turning frequency converter into de-central I/O
block supporting Building Management System
with inputs for sensors and outputs for operating
dampers and valve actuators
•
Support Extended PID controllers with I/Os for set
point inputs, transmitter/sensor inputs and
outputs for actuators.
MG11BC02
Design Guide
CONTROL CARD (FREQUENCY CONVERTER)
ANALOG I/O
OPTION MCB 109
1
0-10
VDC
Pt1000/
Ni 1000
Illustration 3.12 Principle Diagram for Analog I/O Mounted in
Frequency Converter.
Analog I/O configuration
3 x analog inputs, capable of handling following:
•
OR
•
•
•
•
3 x Analog Outputs supplying 0-10 V DC.
Danfoss A/S © Rev. 06/2014 All rights reserved.
CPU
0 V 24 VDC
CPU RTC
ANALOG INPUT ANALOG OUTPUT
2 3 4 5 6 7 8
0-10 0-10
VDC VDC
0-10 V DC
0-20 mA (voltage input 0-10 V) by mounting a
510 Ω resistor across terminals (see NOTICE)
4-20 mA (voltage input 2-10 V) by mounting a
510 Ω resistor across terminals (see NOTICE)
Ni1000 temperature sensor of 1000 Ω at 0° C.
Specifications according to DIN43760
Pt1000 temperature sensor of 1000 Ω at 0° C.
Specifications according to IEC 60751
3
3V
LITHIUM
BATTERY
9 10 11 12
57
3
