Electrical Installation

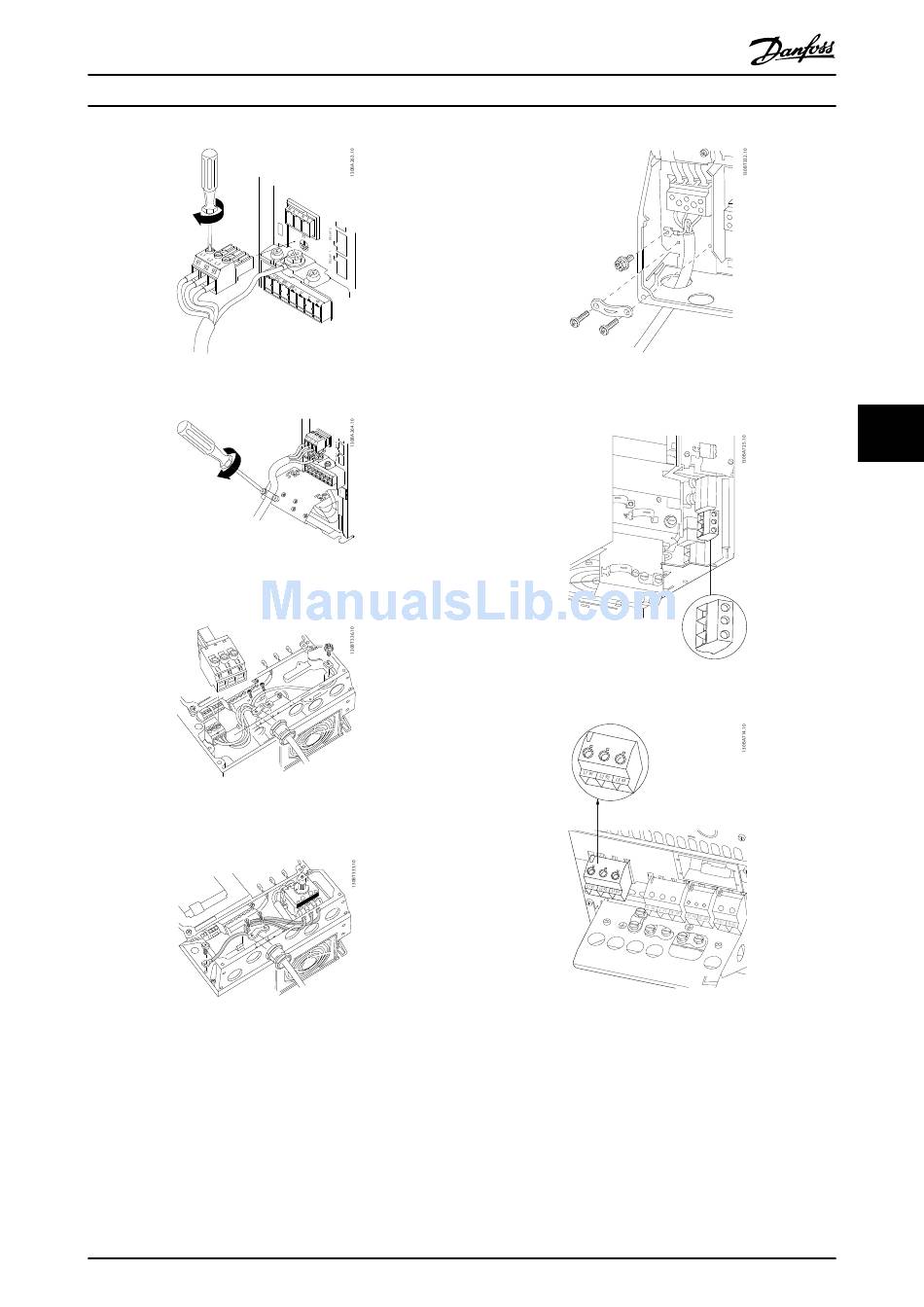

Illustration 6.4 Mounting Mains Plug and Tightening Wires
Illustration 6.5 Tighten Support Bracket
Mains connector enclosure type A4/A5 (IP55/66)
Illustration 6.6 Connecting to Mains and Earthing without
Disconnector
Illustration 6.7 Connecting to Mains and Earthing with Discon-
nector
When disconnector is used (enclosure type A4/A5) the PE
must be mounted on the left side of the frequency
converter.
MG11BC02
Design Guide
Illustration 6.8 Mains Connection Enclosure Types B1 and B2
(IP21/NEMA Type 1 and IP55/66/ NEMA Type 12)
Illustration 6.9 Mains Connection Enclosure Type B3 (IP20)
Illustration 6.10 Mains Connection Enclosure Type B4 (IP20)
