Electrical Installation

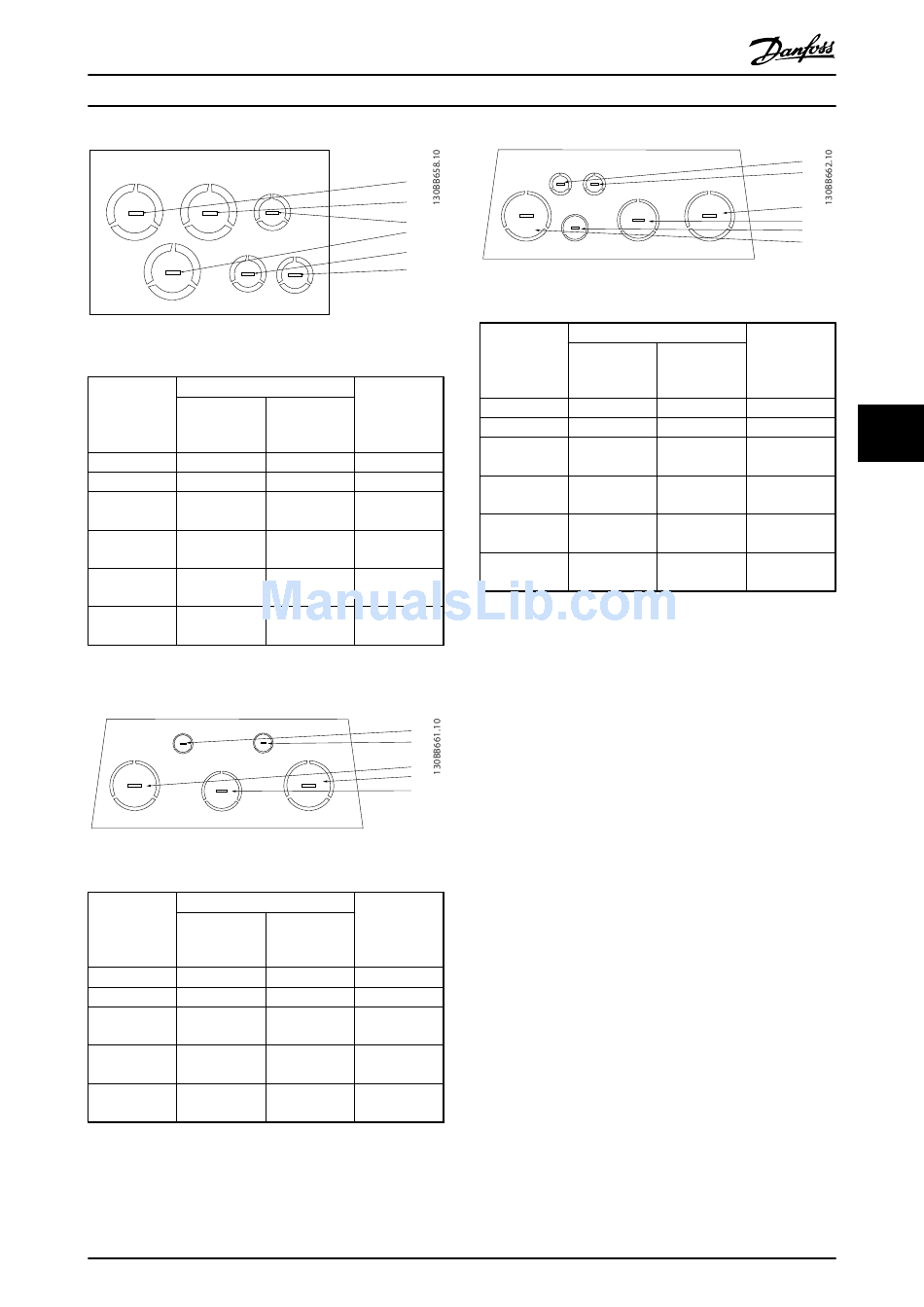

Illustration 6.33 B3 - IP21
Hole Number
Dimensions
and
UL [in]
recommended
use
1) Mains 1
2) Motor 1
3) Brake/Load 1
Sharing
4) Control 1/2
Cable
5) Control 1/2
Cable
6) Control 1/2
Cable
Table 6.15 Legend to Illustration 6.33
± 0.2 mm
1) Tolerance
Illustration 6.34 C1 - IP21
Hole Number
Dimensions
and
UL [in]
recommended
use
1) Mains 2
2) Motor 2
3) Brake/Load 1 1/2
Sharing
4) Control 3/4
Cable
5) Control 1/2
Cable
Table 6.16 Legend to Illustration 6.34
± 0.2 mm
1)
Tolerance
MG11BC02
Design Guide
[3]
[2]
[4]
[1]
[5]
[6]
1)
[mm]
Nearest metric
34.7 M32
34.7 M32
34.7 M32
22.5 M20
22.5 M20
22.5 M20
[5]
[4]
[2]
[3]
[1]
1)
[mm]
Nearest metric
63.3 M63
63.3 M63
50.2 M50
28.4 M25
22.5 M20
