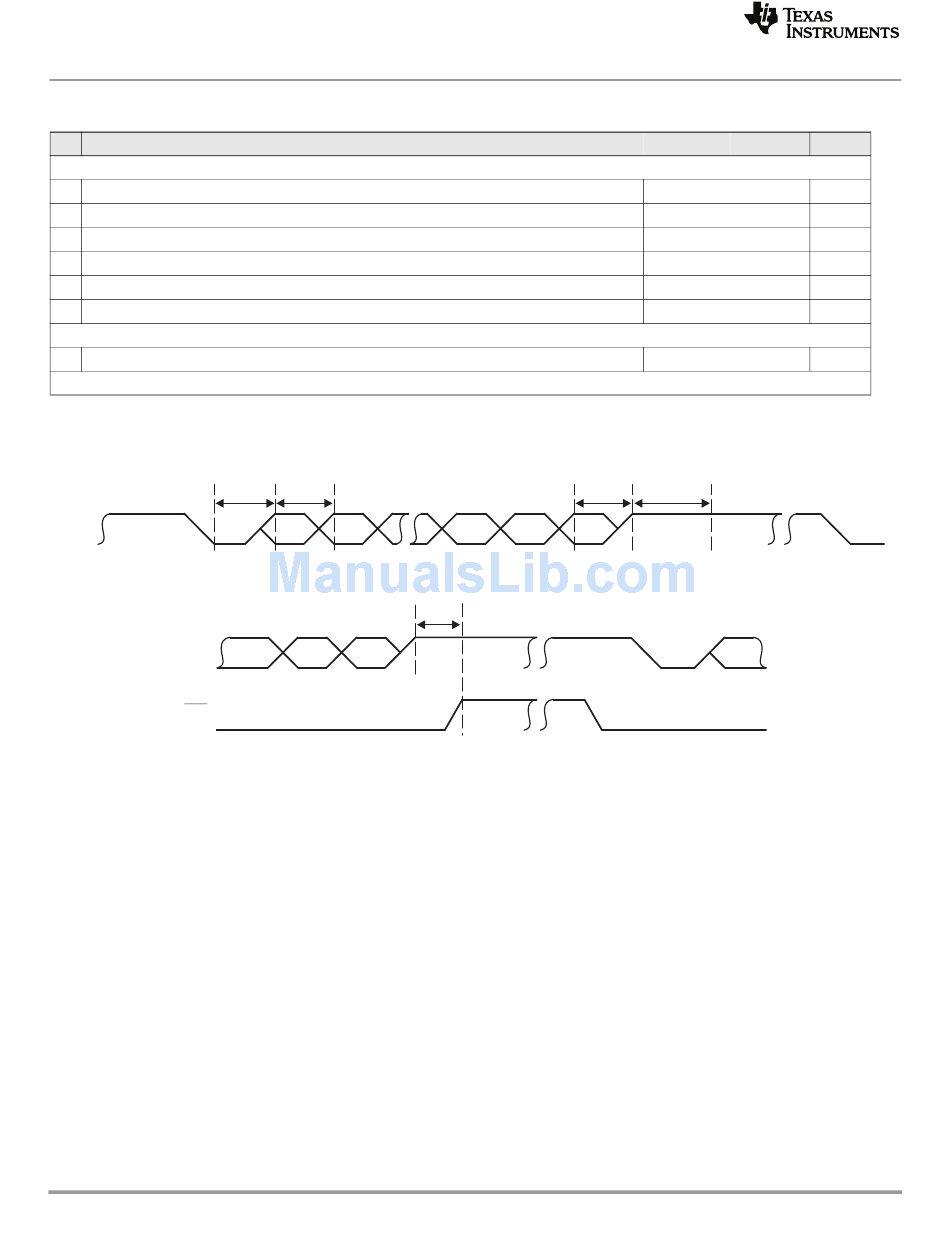

Table 7-73 UART Switching Characteristics
(See Figure 7-45 and Figure 7-46)
No.
1 tw(TXSTART) Pulse width, transmit start bit
2 tw(TXH) Pulse width, transmit data/parity bit high
2 tw(TXL) Pulse width, transmit data/parity bit low
3 tw(TXSTOP1) Pulse width, transmit stop bit 1
3 tw(TXSTOP15) Pulse width, transmit stop bit 1.5
3 tw(TXSTOP2) Pulse width, transmit stop bit 2
7 td(RX-RTSH) Delay time, STOP bit received to RTS deasserted
End of Table 7-73
1 U = UART baud time = 1/programmed baud rate
2 P = 1/SYSCLK7
Figure 7-45 UART Transmit Timing Waveform
TXD Start
Stop/Idle
Figure 7-46 UART RTS (Request-to-Send Output) – Autoflow Timing Waveform
RXD
CTS

7.16 PCIe Peripheral

The 2-lane PCI express (PCIe) module on TMS320C6670 provides an interface between the SoC and other
PCIe-compliant devices. The PCI express module provides low pin-count, high-reliability, and high-speed data
transfer at rates of 5.0 Gbps per lane on the serial links. For more information, see the Peripheral Component
Interconnect Express (PCIe) for KeyStone Devices User Guide in
Instruments'' on page 66.

7.17 Packet Accelerator

The Packet Accelerator provides L2 to L4 classification functionalities. It supports classification for Ethernet, VLAN,
MPLS over Ethernet, IPv4/6, GRE over IP, and other session identification over IP such as TCP and UDP ports. It
maintains 8k multiple-in, multiple-out hardware queues. It also provides checksum capability as well as some QoS
capabilities. It enables a single IP address to be used for a multi-core device. It can process up to 1.5 Mpps. The Packet
Accelerator is coupled with the Network Coprocessor. For more information, see the Packet Accelerator (PA) for
KeyStone Devices User Guide in
206 TMS320C6670 Peripheral Information and Electrical Specifications
Parameter
Transmit Timing
Autoflow Timing Requirements
2
1
Bit 0 Bit 1
Bit N-1 Bit N
2.9 ''Related Documentation from Texas Instruments'' on page
2
Bit N-1 Bit N Parity
7
Stop
2.9 ''Related Documentation from Texas
Min Max
(1)
U - 2 U + 2
U - 2 U + 2
U - 2 U + 2
U - 2 U + 2
1.5 * (U - 2) 1.5 * ('U + 2)
2 * (U - 2) 2 * ('U + 2)
(2)
P
3
Stop Idle
Start
66.
