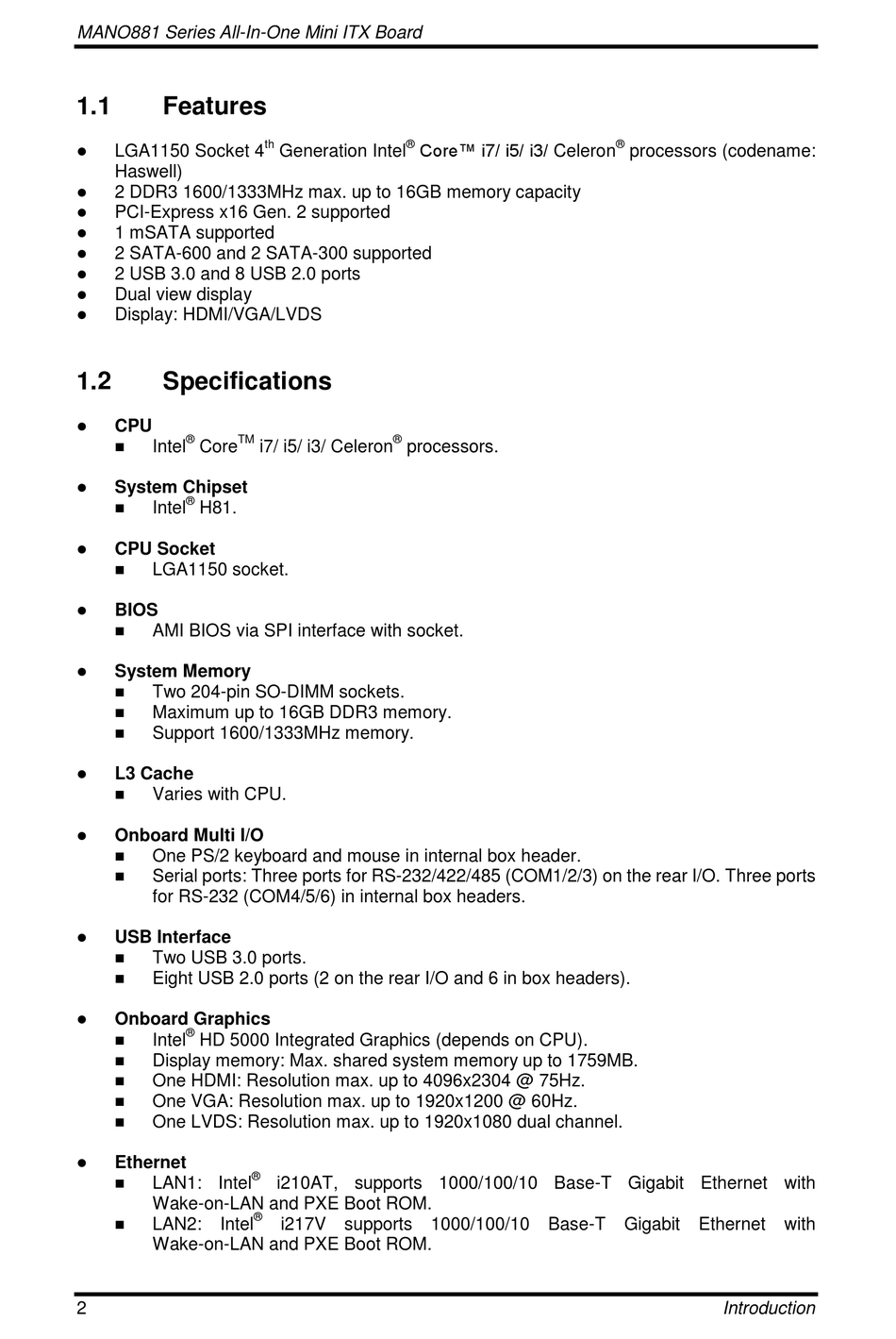

Features; Specifications - AXIOMTEK wm5201 User Manual

MANO881 Series All-In-One Mini ITX Board
1.1

Features

 LGA1150 Socket 4
Haswell)
 2 DDR3 1600/1333MHz max. up to 16GB memory capacity
 PCI-Express x16 Gen. 2 supported
 1 mSATA supported

2 SATA-600 and 2 SATA-300 supported
 2 USB 3.0 and 8 USB 2.0 ports
 Dual view display
 Display: HDMI/VGA/LVDS
1.2

Specifications

 CPU
® TM
 Intel Core

System Chipset
®
 Intel H81.
 CPU Socket
 LGA1150 socket.
 BIOS
 AMI BIOS via SPI interface with socket.
 System Memory
 Two 204-pin SO-DIMM sockets.
 Maximum up to 16GB DDR3 memory.
 Support 1600/1333MHz memory.
 L3 Cache
 Varies with CPU.
 Onboard Multi I/O
 One PS/2 keyboard and mouse in internal box header.
 Serial ports: Three ports for RS-232/422/485 (COM1/2/3) on the rear I/O. Three ports
for RS-232 (COM4/5/6) in internal box headers.
 USB Interface
 Two USB 3.0 ports.
 Eight USB 2.0 ports (2 on the rear I/O and 6 in box headers).
 Onboard Graphics
®

Intel HD 5000 Integrated Graphics (depends on CPU).
 Display memory: Max. shared system memory up to 1759MB.
 One HDMI: Resolution max. up to 4096x2304 @ 75Hz.
 One VGA: Resolution max. up to 1920x1200 @ 60Hz.
 One LVDS: Resolution max. up to 1920x1080 dual channel.
 Ethernet

LAN1: Intel
Wake-on-LAN and PXE Boot ROM.
 LAN2: Intel
Wake-on-LAN and PXE Boot ROM.
2
th ®
Generation Intel
®
i7/ i5/ i3/ Celeron processors.
®
i210AT, supports 1000/100/10 Base-T Gigabit Ethernet with
®
i217V supports 1000/100/10 Base-T
Core™ i7/ i5/ i3/ Celeron
®
processors (codename:
Gigabit Ethernet
Introduction
with
