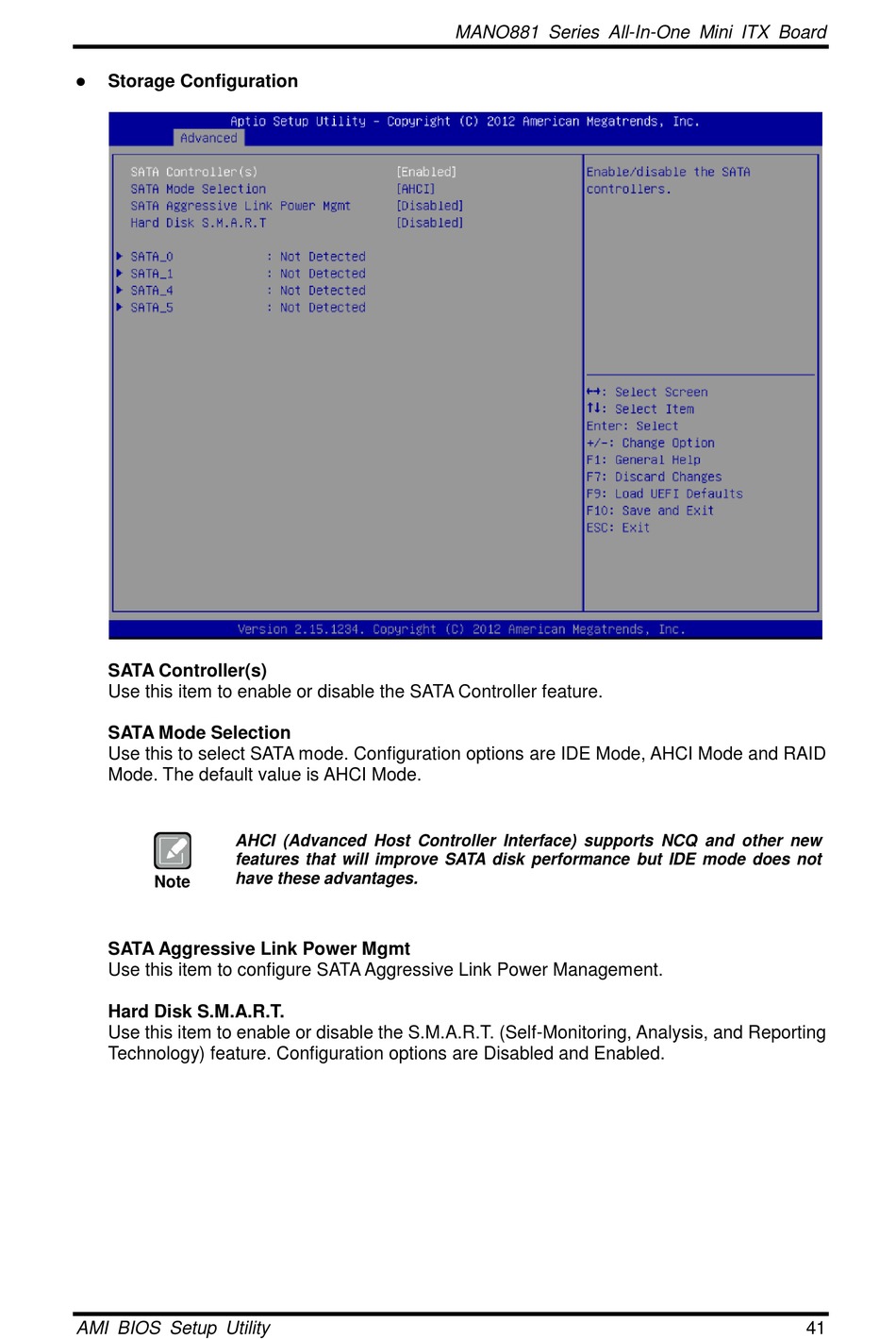

 Storage Configuration
SATA Controller(s)
Use this item to enable or disable the SATA Controller feature.
SATA Mode Selection
Use this to select SATA mode. Configuration options are IDE Mode, AHCI Mode and RAID
Mode. The default value is AHCI Mode.
AHCI (Advanced Host Controller Interface) supports NCQ and other new
features that will improve SATA disk performance but IDE mode does not
have these advantages.
Note
SATA Aggressive Link Power Mgmt
Use this item to configure SATA Aggressive Link Power Management.
Hard Disk S.M.A.R.T.
Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting
Technology) feature. Configuration options are Disabled and Enabled.
