MANO881 Series All-In-One Mini ITX Board
4.4

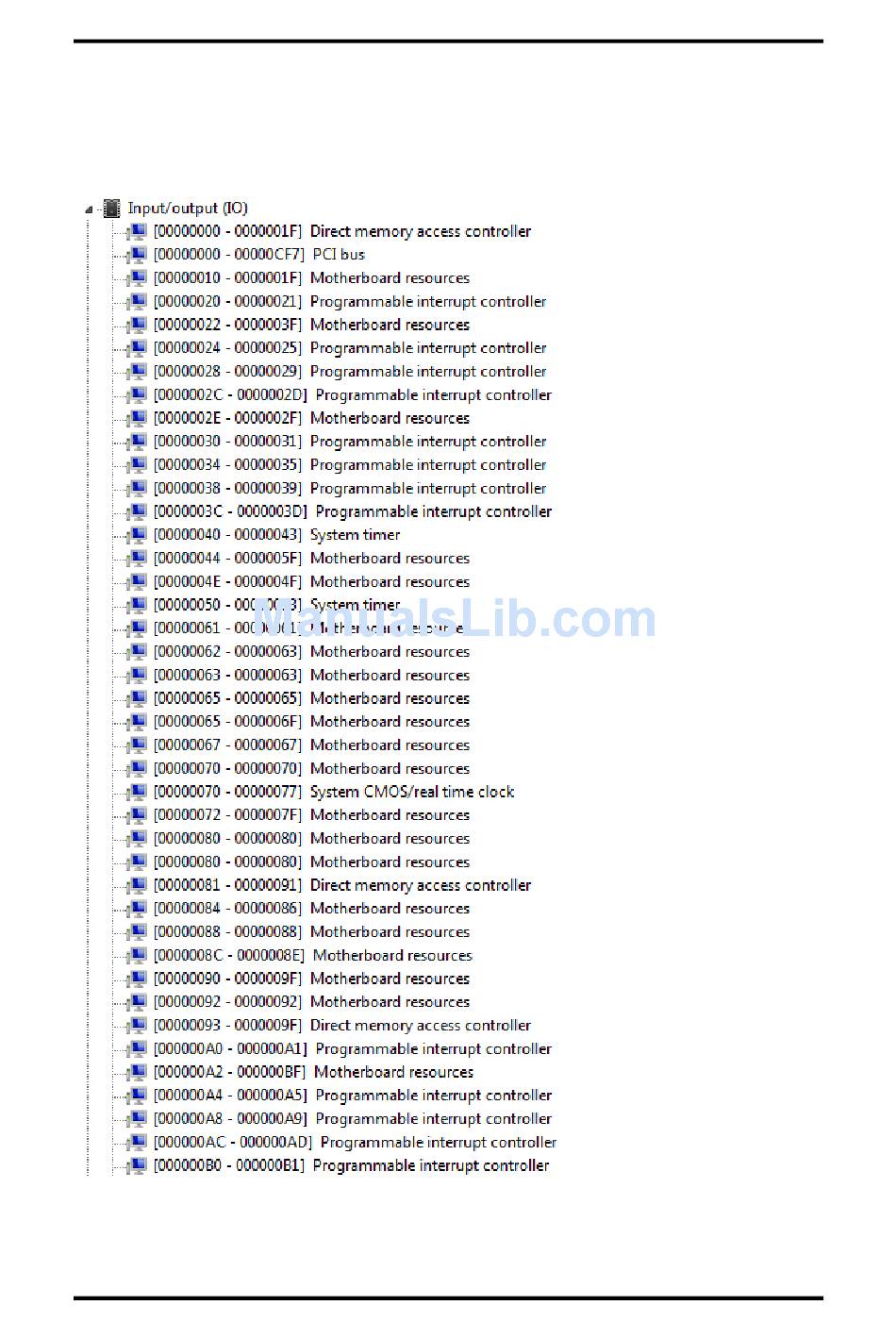

I/O Port Address Map
®
TM
The Intel
Core
i7/ i5/ i3/ Celeron
addresses are available for assigning to other devices via I/O expansion cards.
24
®
processors communicate via I/O ports. Total 1KB port
Hardware Description
