2.2

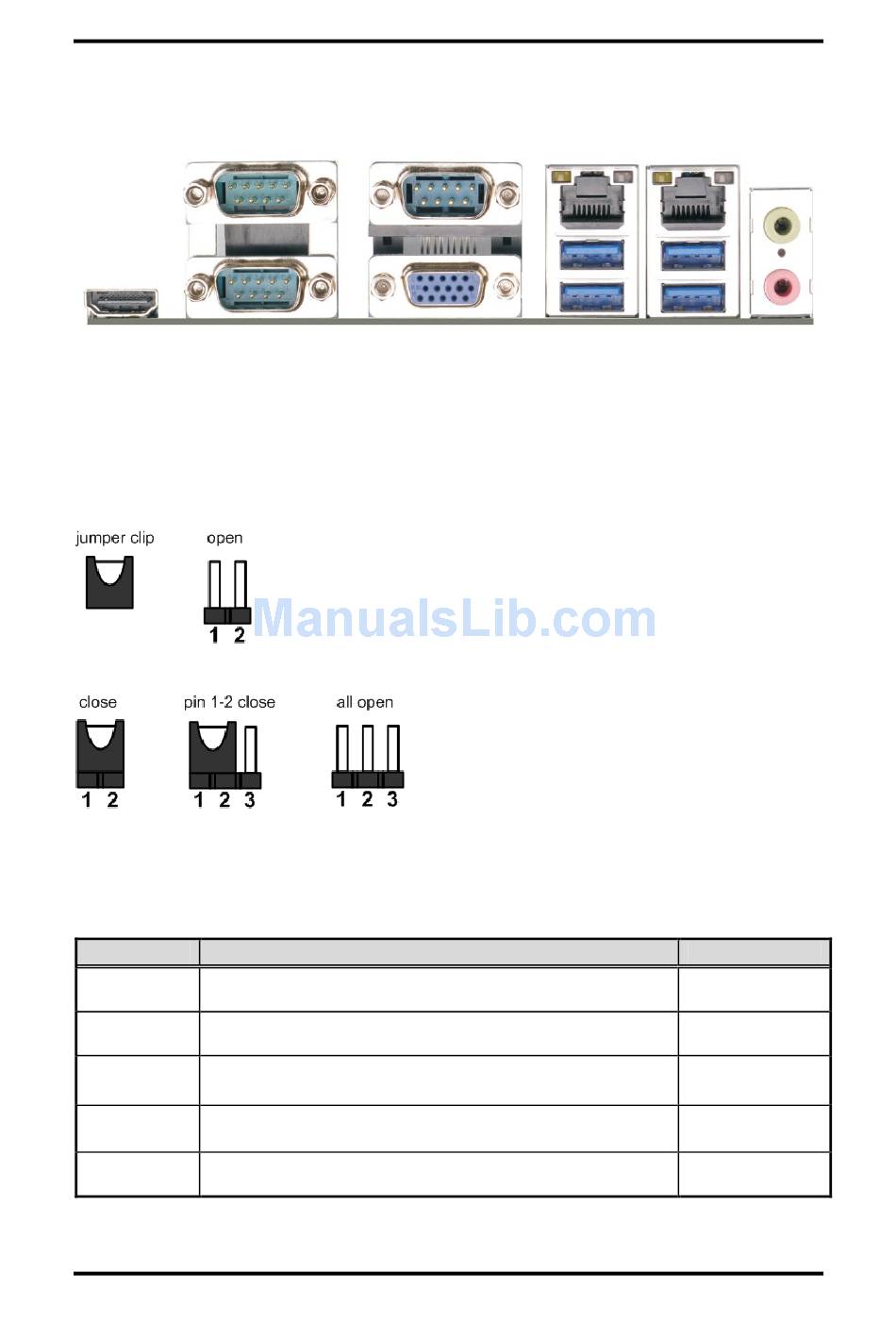

Rear Panel I/O

2.3

Jumper Settings

Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2
jumper pins to close. And remove jumper clip from 2 jumper pins to open. The following
illustration shows how to set up jumper.
Before applying power to MANO881 Series, please make sure all of the jumpers are in factory
default position. Below you can find a summary table of all jumpers and onboard default
settings.
Jumper Description
Restore BIOS Optimal Defaults
CLRCMOS1
Default: Normal Operation
Panel Power Selection
PNL_PWR1
Default: +3V
Backlight Power Selection
BKT_PWR1
Default: +5V
ATX/AT Power Mode Jumper
PWR_JP1
Default: ATX Mode
PWM Level Selection
BLT_PWM1
Default: +5V
Board and Pin Assignments
MANO881 Series All-In-One Mini ITX Board
Setting
1-2 Close
1-2 Close
1-2 Close
2-3 Close
2-3 Close
