2.4.14

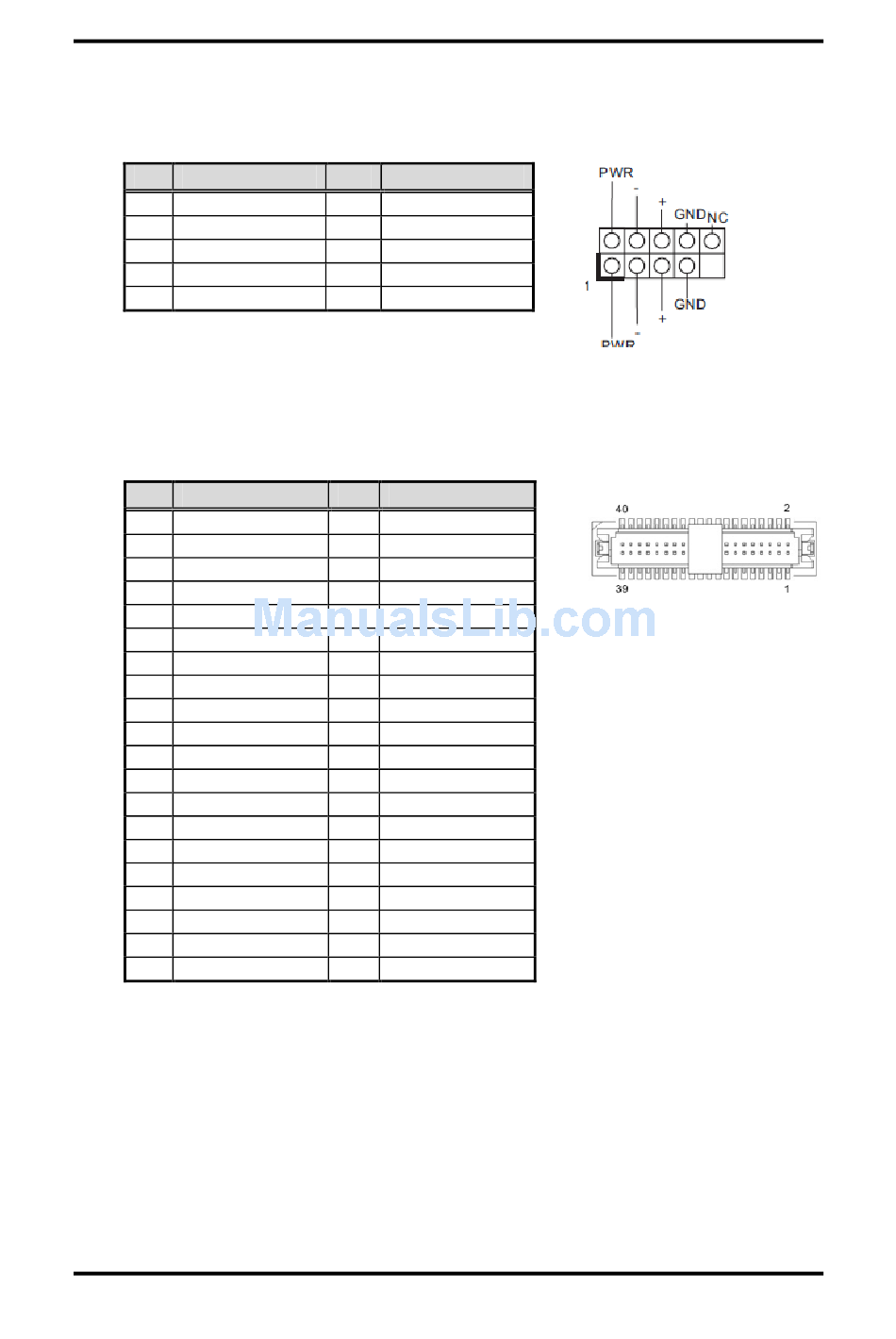

USB 2.0 Headers (USB4_5, USB8_9 and USB10_11)

There are three USB 2.0 headers on this motherboard. Each USB 2.0 header can
support two USB 2.0 ports.
Pin Signal
1 PWR
3 USB DX-
5 USB DX+
7 GND
2.4.15

LVDS Panel Connector (LVDS1)

This is an interface for LVDS panel.
Pin Signal
1 LVDD
3 +3V
5 N/A
7 LVDS_A_DATA0
9 LVDS_A_DATA1#
11 GND6
13 LVDS_A_DATA2
15 LVDS_A_DATA3#
17 GND7
19 LVDS_A_CLK
21 LVDS_B_DATA0#
23 GND8
25 LVDS_B_DATA1
27 LVDS_B_DATA2#
29 DPLVDD_EN
31 LVDS_B_DATA3
33 LVDS_B_CLK#
35 GND9
37 CON_LBKLT_CTR
39 LCD_BLT_VCC
Board and Pin Assignments
MANO881 Series All-In-One Mini ITX Board
Pin Signal
2 PWR
4 USB DY-
6 USB DY+
8 GND
10 NC
Pin Signal
2 LVDD
4 N/A
6 LVDS_A_DATA0#
8 GND1
10 LVDS_A_DATA1
12 LVDS_A_DATA2#
14 GND2
16 LVDS_A_DATA3
18 LVDS_A_CLK#
20 GND3
22 LVDS_B_DATA0
24 LVDS_B_DATA1#
26 GND4
28 LVDS_B_DATA2
30 LVDS_B_DATA3#
32 GND5
34 LVDS_B_CLK
36 CON_LBKLT_EN
38 LCD_BLT_VCC
40 LCD_BLT_VCC
