2.4.2

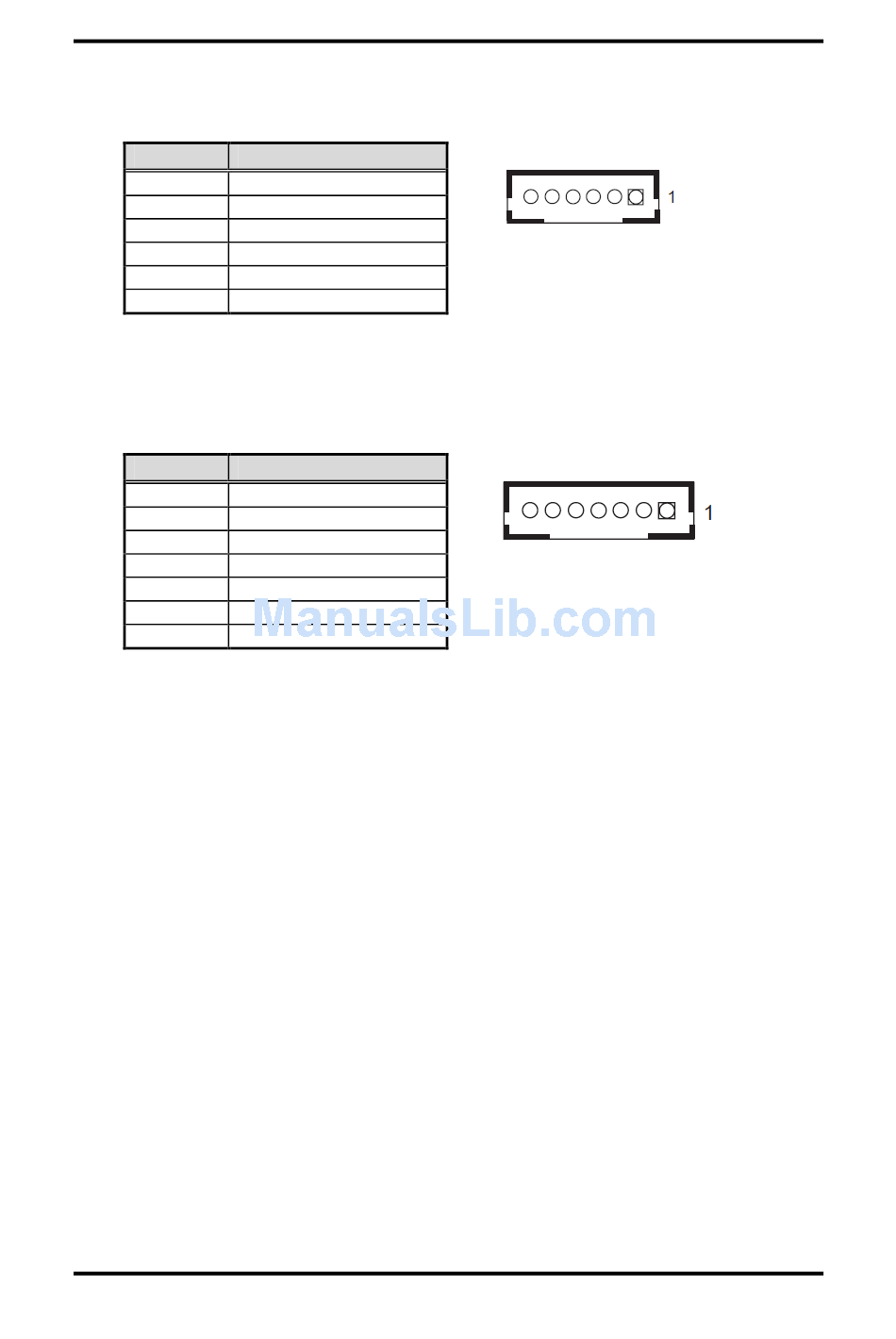

Backlight Power Connector (BLT_PWR1)

The backlight power interface is available through this connector.
Pin Signal
1 GND
2 GND
3 BL CTL
4 BL EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
2.4.3

Backlight Volume Control Connector (BLT_VOL1)

The backlight volume control interface is available through this connector.
Pin Signal
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 LVDS1 BLUP
5 LVDS1 BLDW
6 GND
7 GND
Board and Pin Assignments
MANO881 Series All-In-One Mini ITX Board
11
