MANO881 Series All-In-One Mini ITX Board

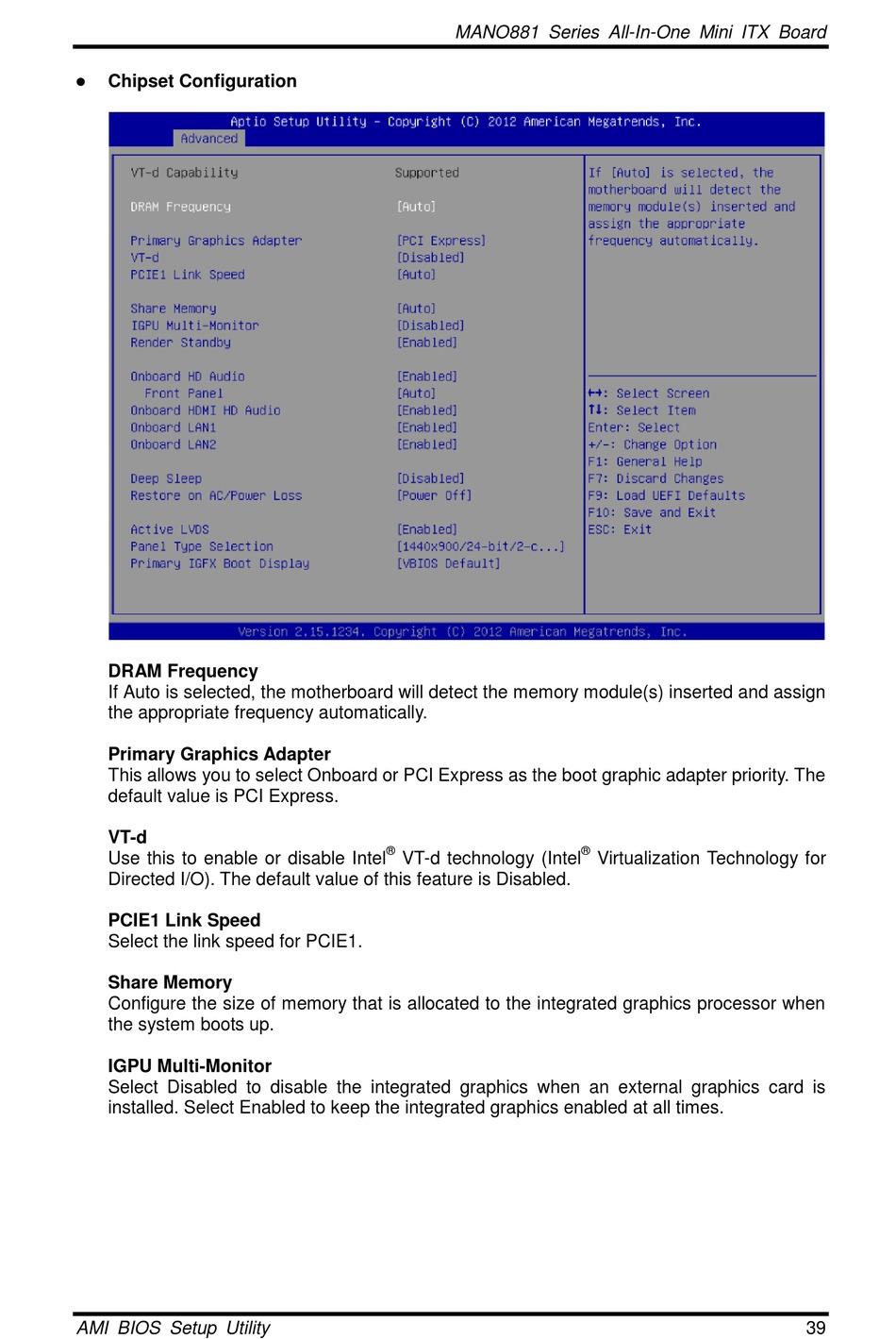

 Chipset Configuration
DRAM Frequency
If Auto is selected, the motherboard will detect the memory module(s) inserted and assign
the appropriate frequency automatically.
Primary Graphics Adapter
This allows you to select Onboard or PCI Express as the boot graphic adapter priority. The
default value is PCI Express.
VT-d
® ®
Use this to enable or disable Intel VT-d technology (Intel Virtualization Technology for
Directed I/O). The default value of this feature is Disabled.
PCIE1 Link Speed
Select the link speed for PCIE1.
Share Memory
Configure the size of memory that is allocated to the integrated graphics processor when
the system boots up.
IGPU Multi-Monitor
Select Disabled to disable the integrated graphics when an external graphics card is
installed. Select Enabled to keep the integrated graphics enabled at all times.
AMI BIOS Setup Utility 39
