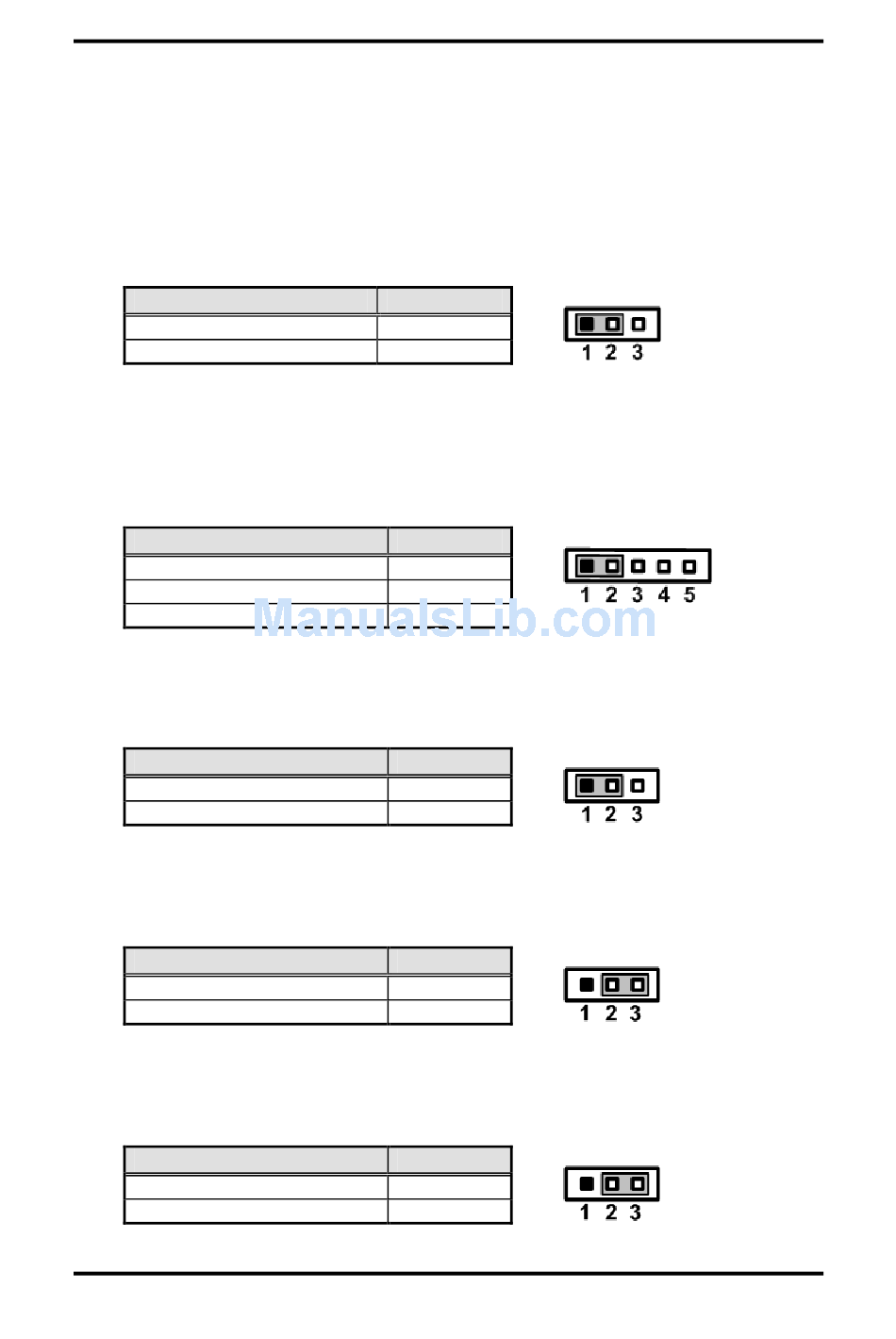

Restore BIOS Optimal Defaults (CLRCMOS1)

CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn off the computer and unplug the power cord
from the power supply. After waiting for 15 seconds, use a jumper clip to short pin 2 and
pin 3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after
you update the BIOS. If you need to clear the CMOS when you just finish updating the
BIOS, you must boot up the system first, and then shut it down before you do the
clear-CMOS action. Please be noted that the password, date, time, user default profile
and MAC address will be cleared only if the CMOS battery is removed.
Function
Normal (Default)
Restore BIOS optimal defaults
2.3.2

Panel Power Selection (PNL_PWR1)

This motherboard supports voltage selection for flat panel displays. Use this jumper to
set power of LVDS panel to +3V, +5V or +12V. To prevent hardware damage, before
connecting please make sure that the input voltage of LVDS panel is correct.
Function
+3V (Default)
+5V
+12V
2.3.3

Backlight Power Selection (BKT_PWR1)

This jumper allows you to select backlight power for LVDS panel.
Function
+5V (Default)
+12V
2.3.4

AT/ATX Power Mode Jumper (PWR_JP1)

This jumper allows you to select ATX power or AT power mode.
Function
AT mode
ATX mode (Default)
2.3.5

PWM Level Selection (BLT_PWM1)

This jumper allows you to select PWM level.
Function
+3V level
+5V level (Default)
8
Setting
1-2 close
2-3 close
Setting
1-2 close
2-3 close
4-5 close
Setting
1-2 close
2-3 close
Setting
1-2 close
2-3 close
Setting
1-2 close
2-3 close
Board and Pin Assignments
