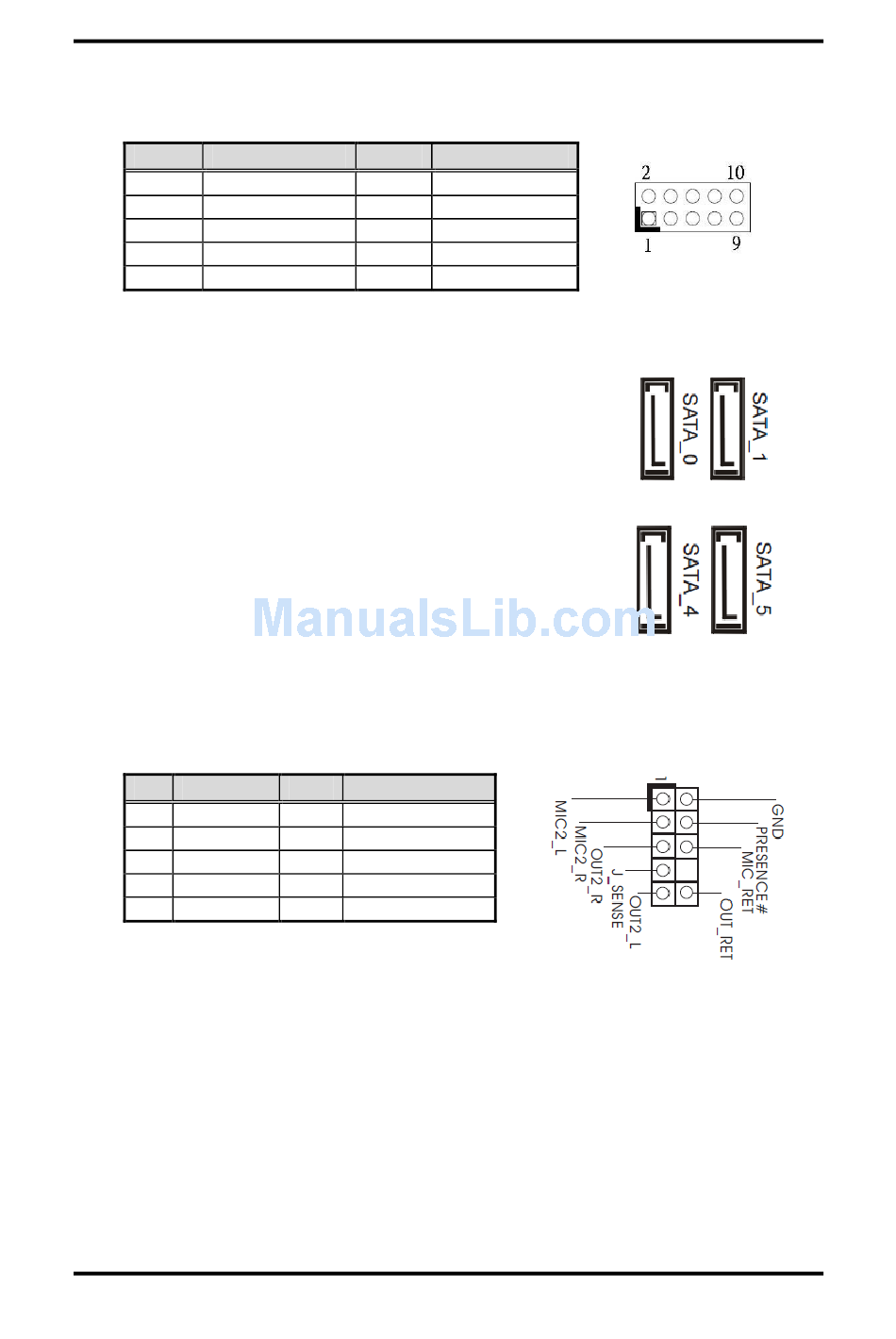

Digital I/O Header (JGPIO1)

The JGPIO1 is for digital I/O interface.
Pin Signal
1 SIO_GP24
3 SIO_GP25
5 SIO_GP26
7 SIO_GP27
9 JGPIO_PWR1
2.4.12

SATA Connectors (SATA_0~SATA_1 and SATA_4~SATA_5)

These two Serial ATA 3.0 (SATA 3.0) connectors support
SATA data cables for internal storage devices. The
current SATA 3.0 interface allows up to 6.0Gb/s data
transfer rate.
These two Serial ATA 2.0 (SATA 2.0) connectors support
SATA data cables for internal storage devices. The
current SATA 2.0 interface allows up to 3.0Gb/s data
transfer rate.
2.4.13

Front Panel Audio Header (HD_AUDIO1)

This is an interface for front panel audio cable that allows convenient connection and
control of audio devices.
Pin Signal
1 MIC2_L
3 MIC2_R
5 OUT2_R
7 J_SENSE
9 OUT2_L
16
Pin Signal
2 SIO_GP20
4 SIO_GP21
6 SIO_GP22
8 SIO_GP23
10 GND
Pin Signal
2 GND
4 PRESENCE#
6 MIC_RET
10 OUT_RET
Board and Pin Assignments
