MANO881 Series All-In-One Mini ITX Board
Chapter 1
Introduction
th ® TM

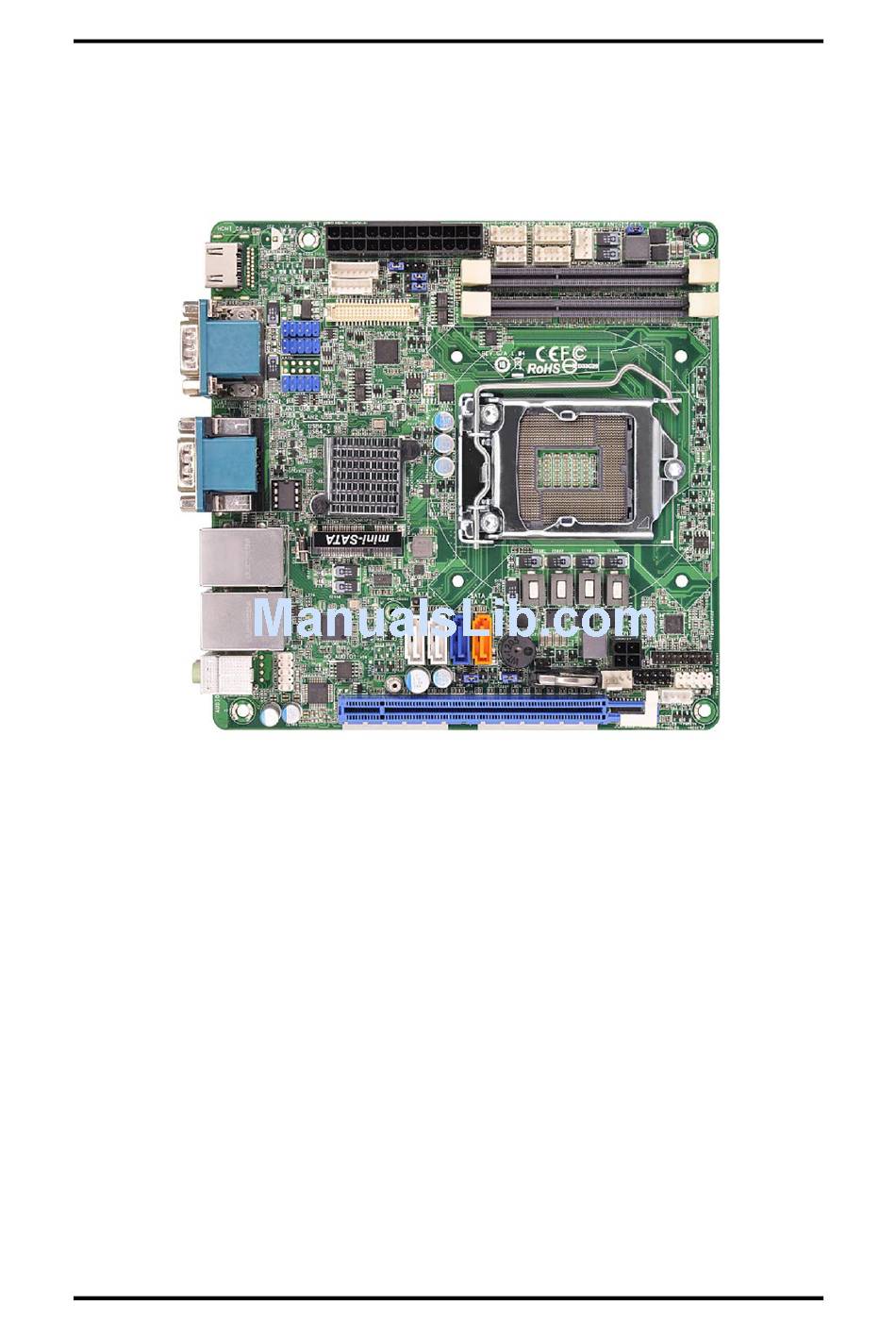

The MANO881 is a Mini ITX board based on the 4 Generation Intel Core i7 / i5 / i3 /
®
Celeron processors (codename: Haswell) in LGA1150 socket. This motherboard integrates
®
Intel H81 chipset that delivers outstanding system performance through high-bandwidth
interfaces, multiple I/O functions for interactive applications and various embedded computing
solutions. There are two 204-pin DDR3 SO-DIMM for dual channel DDR3 1600/1333MHz
memory with maximum capacity up to 16GB; assuming dual channel mode of two 8GB
double-sided unbuffered, non-ECC SO-DIMM memory configuration. It also features two
Gigabit Ethernet ports, two SATA 3.0 ports with maximum transfer rate up to 6Gb/s, two SATA
2.0 ports with maximum transfer rate up to 3Gb/s, two USB 3.0 and eight USB 2.0 high speed
compliant ports that can achieve the best stability and reliability for industrial applications.
Introduction 1
