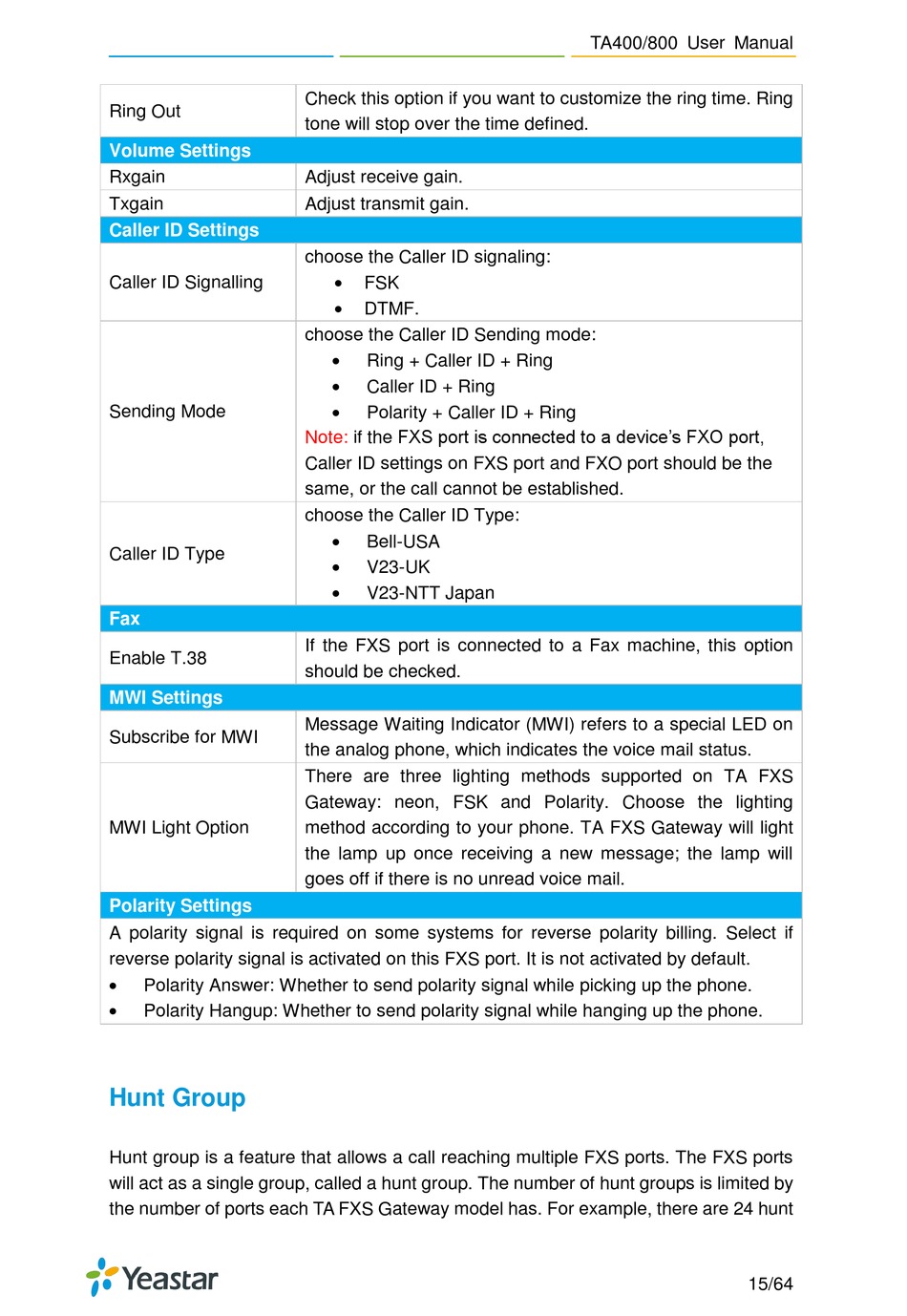

Ring Out
Volume Settings
Rxgain
Txgain
Caller ID Settings
Caller ID Signalling
Sending Mode
Caller ID Type
Fax
Enable T.38
MWI Settings
Subscribe for MWI
MWI Light Option
Polarity Settings
A polarity signal is required on some systems for reverse polarity billing. Select if
reverse polarity signal is activated on this FXS port. It is not activated by default.

Polarity Answer: Whether to send polarity signal while picking up the phone.

Polarity Hangup: Whether to send polarity signal while hanging up the phone.

Hunt Group

Hunt group is a feature that allows a call reaching multiple FXS ports. The FXS ports
will act as a single group, called a hunt group. The number of hunt groups is limited by
the number of ports each TA FXS Gateway model has. For example, there are 24 hunt
Check this option if you want to customize the ring time. Ring
tone will stop over the time defined.
Adjust receive gain.
Adjust transmit gain.
choose the Caller ID signaling:

FSK

DTMF.
choose the Caller ID Sending mode:

Ring + Caller ID + Ring

Caller ID + Ring

Polarity + Caller ID + Ring
if the FXS port is connected to a device's FXO port,
Note:
Caller ID settings on FXS port and FXO port should be the
same, or the call cannot be established.
choose the Caller ID Type:

Bell-USA

V23-UK

V23-NTT Japan
If the FXS port is connected to a Fax machine, this option
should be checked.
Message Waiting Indicator (MWI) refers to a special LED on
the analog phone, which indicates the voice mail status.
There are three lighting methods supported on TA FXS
Gateway: neon, FSK and Polarity. Choose the lighting
method according to your phone. TA FXS Gateway will light
the lamp up once receiving a new message; the lamp will
goes off if there is no unread voice mail.
TA400/800 User Manual
15/64
