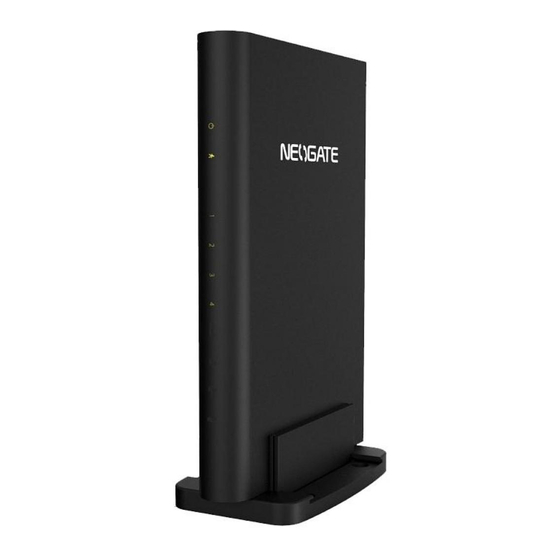

Yeastar Technology TA410 User Manual

Analog voip gateways
Hide thumbs Also See for TA410:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
TA410/810

User Manual

Version 41.19.0.15
Yeastar Information Technology Co. Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yeastar Technology TA410

Summary of Contents for Yeastar Technology TA410

  • Page 1: User Manual

    TA410/810 User Manual Version 41.19.0.15 Yeastar Information Technology Co. Ltd...

  • Page 2: Table Of Contents

    TA410/810 User Manual Contents Contents ........................2 Introduction......................4 Application Description..................5 Configuration Guide ....................9 1. Login........................9 2. Status ........................ 11 2.1 System Status ....................11 2.1.1 Port Status ....................11 2.1.2 Network status ..................12 2.1.3 System Info .................... 12 2.2 Reports ......................
  • Page 3 TA410/810 User Manual 4.1 FXO Port List ....................34 4.1.1 FXO Port List ..................34 4.1.2 Port Group ....................37 4.2 VoIP Settings ....................38 4.2.1 VoIP Trunk ....................38 4.2.2 Trunk Group.................... 40 4.2.3 SIP Settings .................... 41 4.2.4 IAX Settings .................... 46 4.3 Routes Settings.....................

  • Page 4: Introduction

    PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, TA410/810 is ideal for small and medium enterprises that wish to integrate a traditional phone system into IP-based system. TA410/810 helps them to preserve previous investment on legacy telephone system and reduce communication costs significantly with the true benefits of VoIP.

  • Page 5: Application Description

    “Call Source”, and choose the SIP account in the filed “Call Destination”. 3) When a call comes to PSTN trunk on TA410/810, the call will be routed to the destination of the SIP server inbound route.
  • Page 6 TA410/810 User Manual 1) Configure a IP-> Port route on TA410/810; choose the VoIP trunk in the field “Call Source”, and choose PSTN trunk in the field “Call Destination”.Enable Two-stage Dialing on the route. 2) Make a call from your SIP server, dial the SIP account number which is registered on TA410/810.
  • Page 7 TA410/810 User Manual For incoming calls from the PSTN to TA410/810, TA410/810 will forward the call to a configured SIP extension or to an inbound destination of IPPBX like IVR. 7/55...
  • Page 8 TA410/810 User Manual Connect TA FXO Gateway and FXS Gateway TA FXO gateway can be connected to a FXS gateway using SPS/SPX Mode. Imagine this, the FXO gateway is set up in Site A, and the FXS gateway in Site B. People in Site B can make and receive calls using the local PSTN lines (which is connnected to Site A’s provoider).

  • Page 9: Configuration Guide

    (e.g., the IP address, subnet mask, default gateway address and DNS address) by default. Please enable DHCP Server in your network to obtain the TA40/810 IP address. How to check TA410/810 IP address: 1. Download a DeviceFound tool from Yeastar website: FindTA.rar 2.
  • Page 10 TA410/810 User Manual In this example, the IP address is 192.168.10.125, the model is TA810. Figure1-2 TA Login page Click "Login" to get the welcome page. Figure1-3 Login TA 10/55...

  • Page 11: Status

    TA410/810 User Manual 2. Status Click to check the status of TA, including the system status and the detailed reports. 2.1 System Status In this page, we can check the status of the system, including trunk status, network status and system information.

  • Page 12: Network Status

    TA410/810 User Manual Disconnect There is no line connected to the FXO port. 2.1.2 Network status In this page, the IP address of LAN port will appear with their status. Figure 2-2 Network Status If your VLAN or VPN are configured, you can check the status in this page also.

  • Page 13: Call Logs

    TA410/810 User Manual 2.2.1 Call Logs The call log captures all call details, including call time, caller number, callee number, call type, call duration,etc. An administrator can search and filter call data by call date, caller/callee, trunk, duration, billing duration, status, or communication type.

  • Page 14: Packet Monitor Tool

    2.2.3 Packet Monitor Tool This feature is used to capture packets for technician. Integrate packet capture tool “Wireshark” is integrated in TA410/810. Users also could specify the destination IP address and port to get the packets. Figure 2-6 Packet Tool ·IP...

  • Page 15: System

    TA410/810 User Manual 3. System Click to access. In this page, we can configure the network settings, security settings and some system preferences. 3.1 Network Preferences 3.1.1 LAN Settings Figure 3-1 Static IP Address Mode Table 3-1 Description of LAN Settings...

  • Page 16: Service

    Figure 3-4 Service Settings Table 3-2 Description of Service Settings Items Description By using SSH, you can log in to TA410/810 and run commands. It's disabled by default. We don't recommend enabling it if not needed. The default port for SSH is 8022;...

  • Page 17: Vpn Settings

    A VPN can provide secure information transport by authenticating users, and encrypting data to prevent unauthorized persons from reading the information transmitted. The VPN can be used to send any kind of network traffic securely. TA410/810 supports OpenVPN. 17/55...

  • Page 18: Ddns Settings

    1. Uncomment “user” and “group” in the “config” file. You can get the config package from the OpenVPN provider. 2. TA410/810 works as VPN client mode only. 3.1.5 DDNS Settings DDNS (Dynamic DNS) is a method/protocol/network service that provides the...

  • Page 19: Static Route

    TA410/810 will have more than one Internet connection in some situations but it has only one default gateway. You will need to set some Static Route for TA410/810 to force it to go out through different gateway when accessing to different internet.

  • Page 20: Security Center

    Interface Define which internet port to go through. 3.2 Security Center 3.2.1 Security Center You can check TA410/810TA security configuration in “Security Center” page. And also, you can enter the relevant security settings page rapidly. Firewall: Figure 3-10 Firewall In the “Firewall” tab, you can check firewall configuration and alert settings. You can enter the configuration page directly by clicking the relevant button.

  • Page 21: Alert Settings

    TA410/810 User Manual Port: Figure 3-12 Port In “Port” tab, you can check SIP port, HTTP port and HTTPS port. You can also enter the relevant page by clicking the button in “Setting” column. We recommend changing the default port for security.
  • Page 22 TA410/810 User Manual Users will hear the prompt while receiving the phone Prompt notification. 2) E-mail Notification Settings Note: Please ensure that all voicemail settings are properly configured on the System Settings -> Voicemail Settings page before using this feature.
  • Page 23 TA410/810 User Manual Figure 3-14 IP ATTACK Alert 23/55...

  • Page 24: Ami Settings

    2. WEBLOGIN Web Login Alert Notification: entering the wrong password consecutively for five times when logging in TA410/810 Web interface will be deemed as an attack, the system will limit the IP login within 10 minutes and notify the user.

  • Page 25: Certificates

    CA. The relevant IPPBX should also have this certificate. Gateway Certificate This certificate is server certificate. No matter selecting “TLS Verify Client” as “Yes” or “NO”, you should upload this certificate to TA410/810. If IPPBX enables “TLS Verify 25/55...

  • Page 26: Firewall Rules

    TA410/810 User Manual server”, you should also upload this certificate on IPPBX. 3.2.5 Firewall Rules Figure 3-18 Firewall Rules 1) General Settings Table 3-8 Description of Firewall General Settings Items Description Enable the firewall to protect the device. You should reboot the Enable Firewall device to make the firewall run.

  • Page 27: Ip Blacklist

    TA410/810 User Manual Figure 3-19 Common Rule Table 3-9 Description of Common Rule Settings Items Description Name A name for this rule, e.g. “HTTP”. Simple description for this rule. E.g. Accept the specific host to access Description the Web interface for configuration.

  • Page 28: System Preferences

    TA410/810 User Manual Figure 3-20 IP Blacklist 1) Blacklist rules We can add the rules for IP blacklist rate as demanded. Figure 3-21 Auto Blacklist Rule Table 3-10 Description of Auto Blacklist Rule Settings Items Description Port Auto defense port Protocol Auto defense protocol.

  • Page 29: Date And Time

    You can choose your time zone here. Daylight Saving Time Set the mode to Automatic or disabled. Automatically Synchronize With Input the NTP server so that TA410/810 will update an Internet Time Server the time automatically. You can set the time to your local time manually Set Date &...

  • Page 30: Auto Provision Settings

    TA410/810 User Manual Figure 3-24 Email Settings Table 3-12 Description of SMTP Settings Items Description The E-mail Address that TA410/810 will use to send E-mail Address voicemail. Password The password for the email address used above The IP address or hostname of an SMTP server that...
  • Page 31 MyPBX to make it as a DHCP server. (System→Network Preferences→DHCP Server). Figure 3-27 Set MyPBX as a DHCP Server Then select DHCP mode on LAN settings page to make TA410/810 as a DHCP client. Figure 3-28 Set TA410/810 as a DHCP Client 31/55...

  • Page 32: Firmware Update

    TA410/810 User Manual Another way to do auto provision is to download configuration file from the configured server URL. Fill in the URL, user name, password, and set the time, TA410/810 will get the configuration file from the server automatically and regularly.

  • Page 33: Backup And Restore

    TA410/810 User Manual 3.3.7 Backup and Restore We can back up the configurations before resetting TA410/810 to factory defaults, and then restore it on this package. Figure 3-31 Backup and Restore Notes: 1. Only configurations, custom prompts will be backed up.

  • Page 34: Gateway

    TA410/810 User Manual 4. Gateway Click to access the gateway configuration page. Users can configure the details of FXO ports, VoIP settings, gateway settings and advanced settings. 4.1 FXO Port List 4.1.1 FXO Port List All the FXO ports are listed here. You can edit each FXO port by clicking the "Edit"...
  • Page 35 The date to clean the duration status each month. When Max. Call Duration(min) is configured a 0 (no Balance Alarm Settings limit), this feature is disabled. Cofigure the time duration when TA410/810 will Alarm threshold(min) send the alarm message. The value must be less than “Max Call Duration”.
  • Page 36 Answer Detection settings are configured for accurate billing. Select which type to detect the call as answered. 1) Default. TA410/810 will start to charge once you grab the PSTN trunk to call out, whether the call is answered or not.

  • Page 37: Port Group

    TA410/810 User Manual Duration Enable Min Ring Detection, which is useful for Min Ring complex situations, like when jitter or noise Detection occurs on the PSTN line. Generally it is disabled. Min Ring Min duration of the received tone. Duration Min Ring Interval Min pause between the two received tones.

  • Page 38: Voip Settings

    TA410/810 User Manual Figure4-1 Port Group 4.2 VoIP Settings To integrate with other IPPBX, we need to configure the VoIP settings in TA410/810 to setup VoIP trunk (SIP and IAX). 4.2.1 VoIP Trunk There are 3 types of trunks listed in this page, Account, Trunk and Service Provider.
  • Page 39 Set a password for this account. Password 2) VoIP Trunk It’s a SIP trunk configured in TA410/810 to register to the SIP provider, please make sure this trunk works properly in advance with provider before configuring TA410/TA810. Figure 4-4 VoIP Trunk Settings...

  • Page 40: Trunk Group

    TA410/810 User Manual Service provider’s hostname or IP address. Hostname/IP Note:5060 is the standard port number used by SIP protocol. Don’t change this part if it is not required. VoIP provider’s server domain name or IP address. Domain User name of SIP account provided from the SIP Server User Name provider.

  • Page 41: Sip Settings

    TA410/810 User Manual Figure 4-6 Trunk Group 4.2.3 SIP Settings This is the SIP settings in TA410/810, including General settings, NAT, Codecs, QoS, Response Code, and advanced settings. 1) General Figure 4-7 SIP General Settings 41/55...
  • Page 42 Port used for SIP registrations. The default is 5060. TLS Port Port used for SIP registrations. The default is 5061. When using TA410/810 as a TLS client, whether or not to TLS Verify Server verify server’s certificate. It is “No” by default.
  • Page 43 TA410/810 User Manual User Agent To change the user agent parameter of asterisk. 2) NAT Figure 4-8 NAT Settings Table 4-8 Description of SIP General Settings Items Description STUN (Simple Traversal of UDP through NATs) is a protocol for Enable STUN assisting devices behind a NAT firewall or router with their packet routing.
  • Page 44 3) Codecs We can choose the allowed codec in TA410/810, a codec is a compression or decompression algorithm that used in the transmission of voice packets over a network or the Internet. For more information about codec, you can refer to this page: http://en.wikipedia.org/wiki/List_of_codecs...
  • Page 45 TA410/810 User Manual You can change the response code on TA410/810 to the one you want before sending it to the VoIP server. It helps the VoIP server understands better the exact call status, like busy, no response and others.

  • Page 46: Iax Settings

    Choose the session-refresher, the default is Uas. 4.2.4 IAX Settings IAX is the Internal Asterisk Exchange protocol, you can connect to TA410/810 or register IAX trunk to another IAX server. It’s supported by the asterisk-based IPPBX. Figure 4-13 IAX Settings...

  • Page 47: Routes Settings

    TA410/810 User Manual 4.3 Routes Settings 4.3.1 IP->Port Configure IP->Port routes to control calls from your SIP server to TA410/810 FXO ports. Click “Edit” to check the route details, there are two modes for you. 1) Simple Mode Choose “Yes” for Simple Mode, the simple mode configuration page appears as below.
  • Page 48 TA410/810 User Manual Figure 4-15 Detailed Mode Route Table 4-12 Description of Match Incoming Calls Settings Items Description Choose the trunk or trunk group for the incoming calls. Call Source Match the prefix of caller ID for incoming calls. Inbound Caller Pattern Define the expected DID Number if this trunk passes DID on incoming calls.

  • Page 49: Ip->Port

    Port->IP/Port routes are used to control incoming calls to PSTN trunks on TA410/810 and route the calls to your SIP server or another PSTN trunk on TA410/810. Click “Edit” to check the route details, there are two modes for you.
  • Page 50 TA410/810 User Manual Table 4-14 Description of Simple Mode Route Items Description Define the route name. Route Name Choose the trunk or trunk group for the incoming calls. Call Source Choose the trunk or trunk group to route the incoming calls Call Destination Dial the number directly, The dial pattern is ignored.

  • Page 51: Blacklist

    TA410/810 User Manual Table 4-16 Description of Handle Matched lncoming Calls Settings Items Description Choose the trunk or trunk group to route the incoming calls Call Destination Direct number to the SIP Server. The parameter is ignored Hotline if a SIP Account is selected on this route.

  • Page 52: Gateway Settings

    TA410/810 User Manual Figure 4-19 Callback Settings 4.4 Gateway Settings 4.4.1 General Preferences Figure 4-20 General Settings Table4-16 Description of General Preferences General Settings The absolute maximum amount of time permitted for a MAX Call Duration call. A setting of 0 disables the timeout.

  • Page 53: Audio Settings

    TA410/810 User Manual Limiting,TIP/RING voltage adjustment, Minimum Operational Loop Current, and AC Impedance as predefined your country's analog line characteristics. The default setting is "FCC". Voice Settings Forces the use of a jitter buffer on the received side of a SIP channel. The call quality will be improved if this Enable Jitterbuffer option is enabled.

  • Page 54: Advanced Settings

    Figure 4-22 Tone Zone Settings Users may also configure the tone zone according to the national standard by selecting "User custom for Tone Zone". Please refer to the document below and configure the tone zone settings on TA410/810: http://www.itu.int/ITU-T/inr/forms/files/tones-0203.pdf Figure 4-23 Customize Tones...

  • Page 55: Dtmf Settings

    2nd Dial Tone Used for the second stage dial tone. 4.5.1 DTMF Settings DTMF signal sent from TA410/810 to the receiver can be set on this page. Digit Length and Dial Pause Between Digit: 100.100 (ms) Default Digit Volume: -10,-10 (dB)
