Yeastar Technology TA1600 User Manual

Hide thumbs Also See for TA1600:
Table of Contents

Advertisement

Quick Links

Sales Tel:
+86-592-5503309
E-mail:
sales@yeastar.com
Support Tel:
+86-592-5503301
E-mail:
support@yeastar.com
Web:
http://www.yeastar.com
Version: 47.0.0.49
Revised:
September 17, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA1600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yeastar Technology TA1600

Summary of Contents for Yeastar Technology TA1600

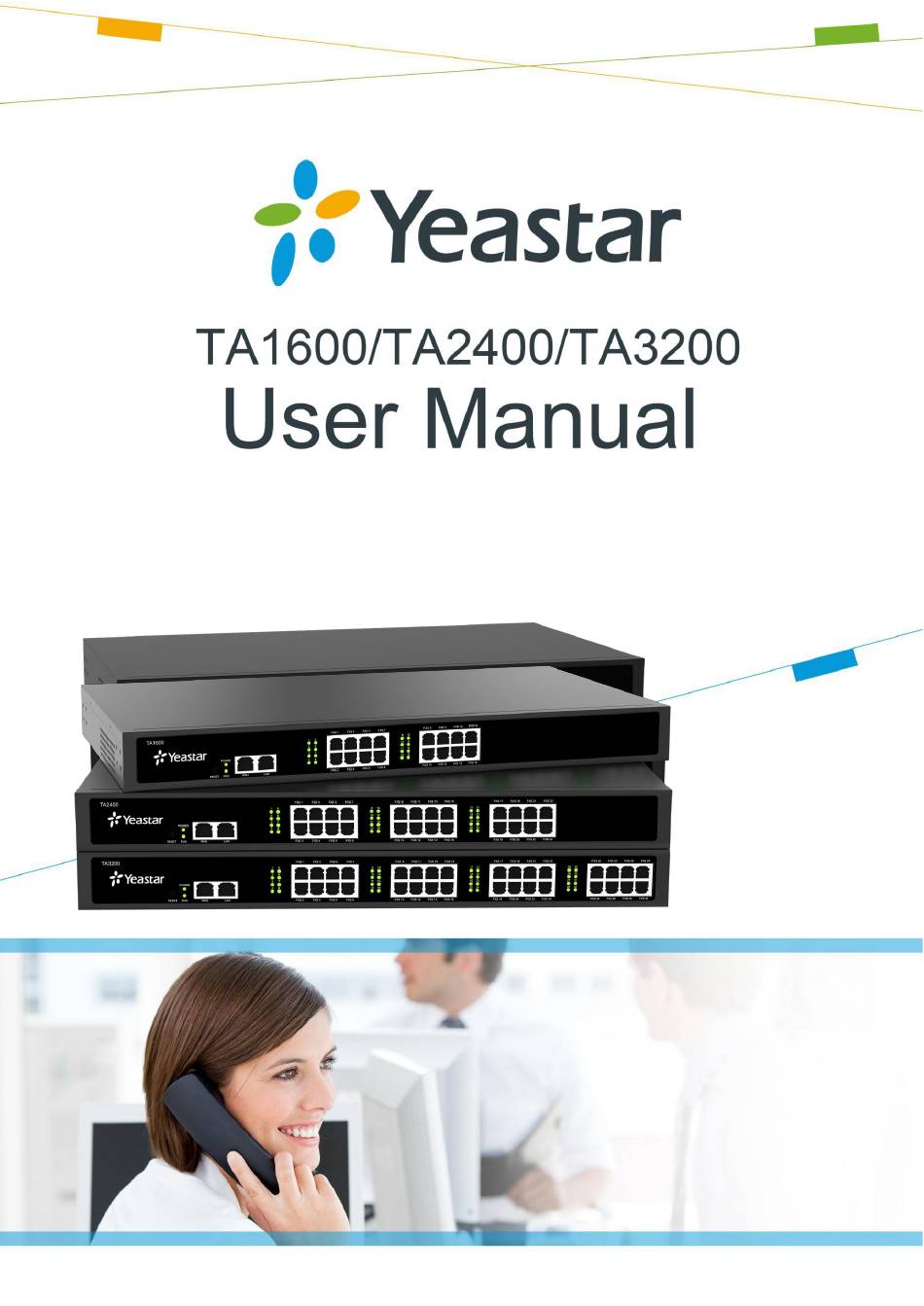

  • Page 1 Sales Tel: +86-592-5503309 E-mail: sales@yeastar.com Support Tel: +86-592-5503301 E-mail: support@yeastar.com Web: http://www.yeastar.com Version: 47.0.0.49 Revised: September 17, 2019...
  • Page 2 Declaration of Conformity Hereby, Yeastar Information Technology Co., Ltd. declares that TA1600/2400/3200 is in conformity with the essential requirements and other relevant provisions of the CE, FCC. Warranty The information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    Call Waiting ........................12 Call Transfer ........................13 Three-party Conference ....................14 Direct IP Call ........................14 Change TA1600/2400/3200’s IP Address Using Analog Phones ........14 FXS Port Settings ..................... 16 General Settings ......................16 Other Settings ........................ 19 Hunt Group ........................21 VoIP Settings.....................
  • Page 4 TA1600/2400/3200 User Manual Feature Codes ........................ 38 Speed Dial ........................42 Prompt Settings ....................43 Custom Prompts ......................43 Music on Hold Prompts ....................44 System Prompts ......................45 Advanced Settings.................... 46 Distinctive Ringtones ...................... 46 Tone Zone Settings ......................46 RADIUS Settings ......................
  • Page 5 TA1600/2400/3200 User Manual IP Blocklist ........................71 System Preferences ..................73 Password Settings ......................73 Date and Time ........................ 74 Auto Provision Settings ....................74 Firmware Upgrade ......................77 Upgrade through HTTP....................78 Upgrade through TFTP ....................78 Backup and Restore ....................... 80 Reset and Reboot ......................

  • Page 6: About This Guide

    VoIP. Audience This manual will help you learn how to operate and manage your TA1600/2400/3200 FXS Analog VoIP Gateway. In this guide, we describe every detail on the functionality and configuration of TA1600/2400/3200. We begin by assuming that you are interested in TA1600/2400/3200 and familiar with networking and other IT disciplines.
  • Page 7 TA1600/2400/3200 User Manual  Attended Transfer Blind Transfer   Support RADIUS protocol  Support SNMP  Support TR-069 Check the TA1600/2400/3200 Installation Guide here: www.yeastar.com/download/TAXX00/Yeastar_TA1600&2400&3200_V3_Installation_ Guide_en.pdf For more information, please click: https://www.yeastar.com/fxs-voip-gateways/ 7/87...

  • Page 8: Getting Started

     Making and Receiving Calls Accessing Web GUI The TA1600/2400/3200 attempts to contact a DHCP server in your network to obtain valid network settings (e.g., the IP address, subnet mask, default gateway address and DNS address) by default. Please enable DHCP Server in your network to obtain the TA1600/2400/3200 IP address.
  • Page 9 TA1600/2400/3200 User Manual Figure 2-1 TA1600/2400/3200 Login page 9/87...

  • Page 10: Web Configuration Panel

    TA1600/2400/3200 User Manual Web Configuration Panel There are 4 main sections on the Web Configuration Panel for users to check the TA1600/2400/3200’s status and configure it.  Status: check System Status, Port Status, Trunk Status, Network Status and check call logs, system logs.

  • Page 11: Basic Operations

    Change TA1600/2400/3200’s IP Address Voice Menu TA1600/2400/3200 provides a voice menu to guide you to configure the network settings for the device. You need to press *** on the analog phone which is connected to TA1600/2400/3200’s FXS port to enter the voice menu.

  • Page 12: Call Hold

    TA1600/2400/3200 User Manual Figure 3-1 TA1600/2400/3200 Voice Menu Tips: 1. Press “9” to listen to the prompt again. 2. Press “*” to return to the last menu. Call Hold An active call can be held by pressing "flash" key on the analog phone. Press the key again to resume the call.

  • Page 13: Call Transfer

    Figure 3-2 Enable Call Waiting Call Transfer Blind transfer and attended transfer are supported on TA1600/2400/3200. Users can achieve call transfer by pressing the feature code during the call. Blind Transfer Default feature code: *03 1.

  • Page 14: Three-Party Conference

    To call the IP phone, you should dial *96192*168*2*123*5060 on the analog phone. Change TA1600/2400/3200’s IP Address Using Analog Phones By default, TA1600/2400/3200 obtains a dynamic IP address from the DHCP server. You can change the device’s IP address via the analog phone which is connected to the FXS port.
  • Page 15  DHCP  Static IP Address  PPPoE Here we introduce how to set a static IP address for TA1600/2400/3200. IP address: 192.168.10.125 Subnet mask: 255.255.255.0 Gateway: 192.168.10.1 DNS: 8.8.8.8 1. Press *** to enter the voice menu. 2. Press 3 to enter the “Advanced Settings”.

  • Page 16: Fxs Port Settings

    TA1600/2400/3200 User Manual FXS Port Settings This chapter explains how to configure FXS port on TA1600/2400/3200, go to Gateway→ Port List→ Port List page to configure the FXS ports.  General Settings  Other Settings  Hunt Group Click "Edit" button to configure the FXS port.
  • Page 17 TA1600/2400/3200 User Manual Table 4-1 Description of FXS Port General Settings Items Description Caller ID Name A character-based name for this user. For example, Bob Jones. General Caller ID Number The Caller ID string used when this user calls another user.
  • Page 18 TA1600/2400/3200 User Manual an interoperation with a FXO gateway which is used for informing FXO gateway to generate the flash signal to the CO line. Sets the minimum time the phone is on hook Min Flash Time before being detected as a hook flash.

  • Page 19: Other Settings

    TA1600/2400/3200 User Manual Other Settings Figure 4-2 FXS Port Other Settings Table 4-2 Description of FXS Port Other Settings Follow Me Choose the forward type and configure the relevant destination number. In different conditions, the incoming calls to the account will be forwarded to different destinations.
  • Page 20 TA1600/2400/3200 User Manual  When Busy: forward the call when the account is busy. Features Check this option if the extension should have Call Waiting capability. If this option is checked, the “When busy” follow Call Waiting me options will not be available.

  • Page 21: Hunt Group

    TA1600/2400/3200 User Manual If the FXS port is connected to a Fax machine, this option Enable T.38 should be checked. MWI Settings Message Waiting Indicator (MWI) refers to a special LED on Subscribe for MWI the analog phone, which indicates the voice mail status.
  • Page 22 TA1600/2400/3200 User Manual Figure 4-3 Hunt Group Figure 4-4 Set Hount Group on "FXS Port" Page There are 3 strategies for hunt group on TA FXS Gateway.  Simultaneous All the FXS users will ring at the same time. 22/87...
  • Page 23 TA1600/2400/3200 User Manual  Circular In circular hunting, the calls are processed "round-robin". If a call is delivered to FXS port1, the next call will go to 2, the next to 3. The succession throughout each of the FXS users even if one of the previous local users becomes free. When the end of the hunting group is reached, the hunting starts over at the first local users.

  • Page 24: Voip Settings

    TA1600/2400/3200 User Manual VoIP Settings To integrate with other IPPBX, we need to configure the VoIP settings in TA FXS Gateway to set up VoIP trunk (SIP and IAX). In this chapter, we introduce the following settings:  VoIP Server Settings ...
  • Page 25 TA1600/2400/3200 User Manual Figure 5-1 Port Register  Template Register – register to your VoIP server and apply the template to FXS ports. The FXS ports will register to the server with the same account. Figure 5-2 Template Register 25/87...
  • Page 26 TA1600/2400/3200 User Manual Check VoIP settings below.  General Table 5-1 Description of VoIP Server General Settings Items Description Server ID The ID for the VoIP server template. Server Name The name for the VoIP server template. Type Choose the type of the VoIP server, SIP or IAX.

  • Page 27: Dial Pattern Template

    Define the codec for this sip trunk and its priority. Codec TA1600/2400/3200 supports the following codec: u-law, a-law, G726, G729A/B, GSM, ADPCM, G722, G723, iLBC. Dial Pattern Template Dial pattern template specifying how to route the calls from FXS ports to VoIP server extensions or external numbers.

  • Page 28: Sip Settings

    TA1600/2400/3200 User Manual Table 5-3 Description of Dial Pattern Template Settings Items Description Template ID The ID for this template. Template Name A name for this template. Calls from the FXS port should match the dial pattern set on this template, or the call cannot be established.
  • Page 29 TA1600/2400/3200 User Manual 1) General Figure 5-4 SIP General Settings Table 5-4 Description of SIP General Settings Items Description UDP Port Port used for SIP registrations. The default is 5060. Enable Random Port Enable or Disable Random SIP port. Random Port Update Set the Random Port Update Interval.
  • Page 30 TA1600/2400/3200 User Manual it as tlsv1, sslv2 or sslv3. RTP Port Start Beginning of the RTP port range. RTP Port End End of the RTP port range. Set the default mode for sending DTMF. Default setting: DTMF Mode rfc2833 Maximum duration (in seconds) of a SIP registration.
  • Page 31 TA1600/2400/3200 User Manual If you would like to use G.729 codec, please buy the G.729 License Key license and enter the license key here. 2) NAT Figure 5-5 NAT Settings Table 5-5 Description of SIP General Settings Items Description Enable...
  • Page 32 TA1600/2400/3200 User Manual Used to identify the local network using a network number/subnet mask pair when the system is behind a NAT or firewall. Some examples of this are as follows: “192.168.0.0/255.255.0.0”: All RFC 1918 addresses are local networks; External Refresh “10.0.0.0/255.0.0.0”: Also RFC1918;...
  • Page 33 TA1600/2400/3200 User Manual Note: It’s recommended that you configure the QoS in your router or switch instead of TA FXS Gateway side. 4) Response Code You can change the response code on TA FXS Gateway to the one you want before sending it to the VoIP server.
  • Page 34 TA1600/2400/3200 User Manual Table 5-6 Description of T.38 Settings Items Description Re-invite SDP Not Add T.38 If set to Yes, SDP in re-invite packet will not add Attributes T.38 attributes. Error Correction Re-invite SDP T38FaxUdpEc. T.38 Max BitRate Set T38 Max BitRate.

  • Page 35: Iax Settings

    TA1600/2400/3200 User Manual Table 5-7 Description of SIP Advanced Settings Items Description Call ID Field Where to get the caller ID in SIP packet. DID Field Where to get the DID in SIP packet. It is set when the telecom provider needs. Usually 180 Ringing it is not needed.
  • Page 36 TA1600/2400/3200 User Manual IPPBX. Figure 5-10 IAX Settings Table 5-8 Description of IAX Settings Items Description UDP Port Port used for IAX2 registrations. Default is 4569. Low/medium/high with this option you can control which Bandwidth codec to be used. Minimum Registration Minimum duration (in seconds) of an IAX2 registration.

  • Page 37: Gateway Settings

    TA1600/2400/3200 User Manual Gateway Settings This chapter explains Gateway settings, which can be applied globally to TA1600/2400/3200. The gateway settings can be configured under Gateway→ Gateway Settings.  Basic Preferences  Feature Codes  Speed Dial Basic Preferences Figure 6-1 Basic Preferences...

  • Page 38: Feature Codes

    Set the iLBC packet frame size. Feature Codes There are various feature codes on TA1600/2400/3200. The feature codes are used to acquire the gateway info or activate and inactivate supplementary services. The default feature codes are illustrated below. The parameters for feature codes are configurable.
  • Page 39 TA1600/2400/3200 User Manual  General Table 6-2 Description of General Feature Code Items Default Description Dial the feature code and the FXS port number when Internal Call making calls between the analog phones connected to Prefix multiple ports of the TA FXS Gateway without the use of a VoIP server.
  • Page 40 TA1600/2400/3200 User Manual  Call Forwarding Preferences Table 6-3 Description of Call Forwarding Preferences Items Default Description Users may reset all call forwarding defaults Reset to Defaults by calling *70 on their phone. Users may enable always forward by Enable Forward All Calls calling *71 on their phone.
  • Page 41 TA1600/2400/3200 User Manual Activate "Do Not Disturb". Once activated, Enable Do Not Disturb the FXS port will reject all incoming calls. Disable "Do Not Disturb" for the FXS port by pressing the feature code on the phone. Disable Do Not Disturb...

  • Page 42: Speed Dial

    The number you want to call. To make a speed dial, e.g. you want to call 18033334444, simply dial *981. The *98 tells TA1600/2400/3200 that you want to use the Speed Dial and the 1 is the Speed Dial Code for destination number 18033334444.

  • Page 43: Prompt Settings

    TA1600/2400/3200 User Manual Prompt Settings This chapter explains prompt settings on TA1600/2400/3200.  Custom Prompts  Music on Hold Prompts  System Prompts Custom Prompts We can upload the prompts in this page; you can also download it and save it as a backup.

  • Page 44: Music On Hold Prompts

    TA1600/2400/3200 User Manual Figure 7-2 Upload A Prompt Note: The file size must not be larger than 1.8 MB, and the file must be WAV format: GSM 6.10 8 kHz, Mono, 1 Kb/s; Alaw/Ulaw 8 kHz, Mono, 1 Kb/s; PCM 8 kHz, Mono, 16 Kb/s.

  • Page 45: System Prompts

    TA1600/2400/3200 User Manual Figure 7-4 Upload Music on Hold Prompt Note: The file size must not be larger than 1.8 MB, and the file must be WAV format: GSM 6.10 8 kHz, Mono, 1 Kb/s; Alaw/Ulaw 8 kHz, Mono, 1 Kb/s;...

  • Page 46: Advanced Settings

     RADIUS Settings Distinctive Ringtones TA1600/2400/3200 provides 10 configurable distinctive ringtones. Users could configure different ringtones to match different incoming caller ID. For example, if Inbound Caller Pattern is configured as “100.”, all the incoming calls start with digits “100” will ring using cadence “2000,4000” as the following figure shows.
  • Page 47 TA1600/2400/3200 User Manual Figure 8-2 Tone Zone Settings Users may also configure the tone zone according to the national standard by selecting "User custom for Tone Zone". Please refer to the document below and configure the tone zone settings on TA FXS Gateway: http://www.itu.int/ITU-T/inr/forms/files/tones-0203.pdf...

  • Page 48: Radius Settings

    TA1600/2400/3200 User Manual Configuration option for all FXS ports ring cadence for all Ring Cadence incoming calls. Dial Tone Prompt tone of off-hook dial tone. Ringback Tone The tone sent to caller when ringing is on. Busy Tone Used for busy line prompt.
  • Page 49 TA1600/2400/3200 User Manual Table 8-2 Description of RADIUS Settings Items Description Enable RADIUS Enable RADIUS on TA FXS Gateway. Primary Server IP Set IP address of the primary server. Primary Server Default is 1813. Specifies the port to be used for the primary Port RADIUS account.

  • Page 50: Network Preferences

     Static Route  SNMP Settings  TR-069 Settings LAN Settings After successfully logging in the TA1600/2400/3200 Web GUI for the first time, users could go System→Network Preferences→LAN Settings to configure the network for TA1600/2400/3200. Figure 9-1 LAN Settings 50/87...
  • Page 51 Set the primary DNS for TA1600/2400/3200. Secondary DNS Set the secondary DNS for TA1600/2400/3200. IP Address2 Set the second IP Address for TA1600/2400/3200. Subnet Mask2 Set the second subnet mask for TA1600/2400/3200. Figure 9-2 DHCP Mode Select DHCP mode to get network automatically from the local network.

  • Page 52: Wan Settings

    TA1600/2400/3200 User Manual WAN Settings WAN port is disabled by default. If you want to use dual network, you should enable WAN port, and configure the network settings and static routes to route network traffic through the proper Ethernet interface.
  • Page 53 TA1600/2400/3200 User Manual Default Gateway Set the gateway of the public network. Primary DNS Set the primary DNS of the public network. Secondary DNS Set the secondary DNS of the public network. Figure 9-5 DHCP Mode Select DHCP mode to get network automatically from the local network.

  • Page 54: Service

    Figure 9-7 Service Settings Table 9-3 Description of Service Settings Items Description By using SSH, you can log in to TA1600/2400/3200 and run commands. It's disabled by default. We don't recommend enabling it if not needed. The default port for SSH is 8022.

  • Page 55: Vpn Settings

    A VPN can provide secure information transport by authenticating users, and encrypting data to prevent unauthorized persons from reading the information transmitted. The VPN can be used to send any kind of network traffic securely. TA1600/2400/3200 supports OpenVPN. 55/87...

  • Page 56: Ddns Settings

    Notes: 1. Uncomment “user” and “group” in the “config” file. You can get the config package from the OpenVPN provider. 2. TA1600/2400/3200 works as VPN client mode only. DDNS Settings DDNS(Dynamic DNS) is a method/protocol/network service that provides the capability for a networked device, such as a router or computer system using the...

  • Page 57: Static Route

    TA1600/2400/3200 User Manual Figure 9-10 DDNS Settings Table 9-4 Description of DDNS Settings Items Description Select the DDNS server you sign up for service. DDNS Server User name the DDNS server provides you. User Name User account’s password. Password The host name you have got from the DDNS server...
  • Page 58 TA1600/2400/3200 User Manual Figure 9-11 Static Route 1) Route Table The current route rules of TA FXS Gateway. 2) Static Route Rules You can add new static route rules here. Table 9-5 Description of Static Route Settings Items Description Destination The destination network to be accessed to by TA FXS Gateway.

  • Page 59: Snmp Settings

    SOAP/HTTP-based protocol, it provides the communication between customer-premises equipment (CPE) and Auto Configuration Servers (ACS). Yeastar TA1600/2400/3200 acts as a CPE, enable TR-069 and configure the parameters in the corresponding fields, if configured correctly, the gateway will establish the TR-069 session with the ACS.
  • Page 60 TA1600/2400/3200 User Manual Figure 9-13 TR-069 Settings Table 9-6 Description of TR-069 Settings Items Description URL of the TR-069 ACS. This is the URL the Yeastar CPEs will ACS URL send TR-069 messages to. Username for HTTP authentication against the ACS. Leave it ACS Username blank if no ASC username.

  • Page 61: Remote Management

    TA1600/2400/3200 User Manual Request Address Connection Username used to authenticate an ACS making a Connection Request to the CPE. Request Leave it blank if no username. Username Connection Password used to authenticate an ACS making a Connection Request Request to the CPE.
  • Page 62 TA1600/2400/3200 User Manual  Connect to Remote Management by Yeastar ID If you can access the TA gateway, you can enter your Yeastar ID in the TA gateway, the device will be added to Yeastar Remote Management. Log in the web interface of TA gateway, and go to System>Network Preferences>...

  • Page 63: Security Center

    Security Center This chapter describes how to secure your TA1600/2400/3200. It is strongly recommended that users configure firewall and other security options on TA1600/2400/3200 to prevent the attack fraud and the system failure or calls loss.  Security Center ...
  • Page 64 TA1600/2400/3200 User Manual Figure 10-1 Security Center—Firewall 2) Service In “Service” tab, you can check AMI/SSH status. For AMI/SSH, you can enter the according page by clicking the button in “Setting” column. Figure 10-2 Security Center—Service 3) Port In “Port” tab, you can check SIP port and HTTP port. You can also enter the relevant page by clicking the button in “Setting”...

  • Page 65: Alert Settings

    TA1600/2400/3200 User Manual Alert Settings If the device is under attack, the system will alert users via call or E-mail. The attack modes include IP attack and Web Login.  IPATTACK When the system is attacked by IP address, the firewall will add the IP to auto IP Blocklist and notify the user if it matches the protection rule.
  • Page 66 TA1600/2400/3200 User Manual Table 10-1 Description of Alert Settings Phone Notification Settings PHONE Whether to enable phone notification or not. Notification The numbers could be set for alert notification; users can setup multiple extension and outbound phone numbers. Please separate them by “;”.

  • Page 67: Ami Settings

    There are two main types of messages on the Asterisk Manager Interface: manager events and manager actions. The 3 party software can work with TA1600/2400/3200 using AMI interface. It is disabled by default. If necessary, you can enable it. Figure 10-5 AMI Settings ...

  • Page 68: Certificates

    TA1600/2400/3200 User Manual  Permitted "IP address/Subnet mask" You can set which IP is allowed to log in TA1600/2400/3200 AMI interface. Certificates TA1600/2400/3200 supports TLS transport, you can configure FXS port with TLS transport. To use TLS, you should upload certificates first.

  • Page 69: Firewall Rules

    TA1600/2400/3200 User Manual Firewall Rules Firewalls are used to prevent unauthorized Internet users from accessing private networks connected to the Internet, especially intranets. All messages entering or leaving the intranet pass through the firewall, which examines each message and blocks those that do not meet the specified security criteria.
  • Page 70 TA1600/2400/3200 User Manual 2) Common Rules There is no default rule; you can create one as required. Figure 10-8 Common Rules Table 10-3 Description of Common Rules Items Description A name for this rule, e.g. “HTTP”. Name Simple description for this rule. E.g. accept the specific host to Description access the Web interface for configuration.

  • Page 71: Ip Blocklist

    TA1600/2400/3200 User Manual Drop: Drop the access from remote hosts. Ignore: Ignore the access. Note: the MAC address will be changed when it’s a remote device, so it will not be working to filter using MAC for remote devices. 3) Auto Defense...
  • Page 72 TA1600/2400/3200 User Manual it will be set as a black IP address and be blocked automatically. Figure 10-10 IP Blocklist Settings Page 1) Blocklist rules We can add the rules for IP Blocklist rate as demanded. Figure 10-11 Add Blocklist Rule...

  • Page 73: System Preferences

    2. Enter a new password and retype the new password to confirm. The password complexity will be detected, which will help users to set a strong password and make TA1600/2400/3200 safer. A strong password is comprised of letters, numbers and characters.

  • Page 74: Date And Time

     Automatically Synchronize with an Internet Time Server TA1600/2400/3200 will adjust its internal clock to a central network server. Please note the TA1600/2400/3200 should be able to access to the Internet if you choose this method.  Set Date & Time Manually Enter the time using the numbers on your keyboard.
  • Page 75 TA1600/2400/3200 will find and get the configuration file from MyPBX during boots In PNP mode, you just need to place the TA1600/2400/3200 in the same IP range network with MyPBX, then you can find the TA1600/2400/3200 and provision it on MyPBX ”TA Provisioning”...
  • Page 76 TA1600/2400/3200 User Manual Figure 11-5 Set MyPBX as a DHCP Server Then select DHCP mode on LAN settings page to make TA1600/2400/3200 as a DHCP client. Figure 11-6 Set TA1600/2400/3200 as a DHCP Client Another way to do auto provision is to download configuration file from the configured server URL.

  • Page 77: Firmware Upgrade

    With Yes, it will always apply the updated configuration file. Firmware Upgrade TA1600/2400/3200 can be upgraded to a new firmware version via network or locally. Users could upgrade firmware via HTTP or TFTP. Please go to System→ System Preferences→ Firmware Update to do upgrade.

  • Page 78: Upgrade Through Http

    TA1600/2400/3200 User Manual website to get the firmware file, causing the upgrade fail. Upgrade through HTTP On the Firmware Upgrade page, choose HTTP URL. Step1. Enter the download link of the firmware file. Note: the HTTP URL should be a BIN file download link.
  • Page 79 TA1600/2400/3200 User Manual Figure 11-9 Configure Tftpd32 Step3. Logon the TA1600/2400/3200’s Web page and go to System→System Preferences→Firmware Update, choose “TFTP Server”. 1) TFTP Server: fill in IP address of tftpd32 server (your PC’s IP address). 2) File Name: enter the name of firmware update. It should be a BIN file name.

  • Page 80: Backup And Restore

    TA1600/2400/3200 configurations to a file. Notes: 1. When you have updated the firmware version, it’s not recommended to restore using an old package. 2. Backup from an earlier version cannot be restored on TA1600/2400/3200 of a later version.  Create a New Backup Click to create a new backup.

  • Page 81: Reset And Reboot

    TA1600/2400/3200 User Manual Reset and Reboot Users could reset and reboot the system under System→ System Preferences→ Reset and Reboot. Figure 11-12 Reset and Reboot 81/87...

  • Page 82: Status

    TA1600/2400/3200 User Manual Status Users could check the system status on Status→System Status, where FXS Port Status, Network Status and System Info can be checked.  FXS Port Status  Network Status  System Info FXS Port Status Figure 12-1 FXS Port Status...

  • Page 83: Network Status

    TA1600/2400/3200 User Manual Failed Trunk registration failed. Voice Mail (New/Old) Showing the number of unread voicemail and old voicemail. *Only when the FXS port is registered as one of the VoIP Server’s accounts, can you see the voice mail status.

  • Page 84: System Info

    TA1600/2400/3200 User Manual System Info In this page, we can check the hardware/firmware version, or the disk usage of TA FXS Gateway. Figure 12-3 System Info 84/87...

  • Page 85: Reports

    TA1600/2400/3200 User Manual Reports Users could check the call logs, system logs on Status→Reports page, and use the packet Tool and Port Monitor Tool to capture debug logs from TA1600/2400/3200.  Call Logs  System Logs  Packet Tool ...

  • Page 86: Packet Tool

    Figure 13-2 System Logs Packet Tool This feature is used to capture packets for technician. Integrate packet capture tool “Wireshark” in TA1600/2400/3200. Users also could specify the destination IP address and port to get the packets. Figure 13-3 Packet Tool ...

  • Page 87: Port Monitor Tool

    TA1600/2400/3200 User Manual Specify the destination IP address to get the packets.  Port Specify the destination Port to get the packets. Port Monitor Tool This tool is used to debug a FXS port. Select a FXS port and click “Start” to monitor the FXS port, stop monitoring by clicking “Stop”...
