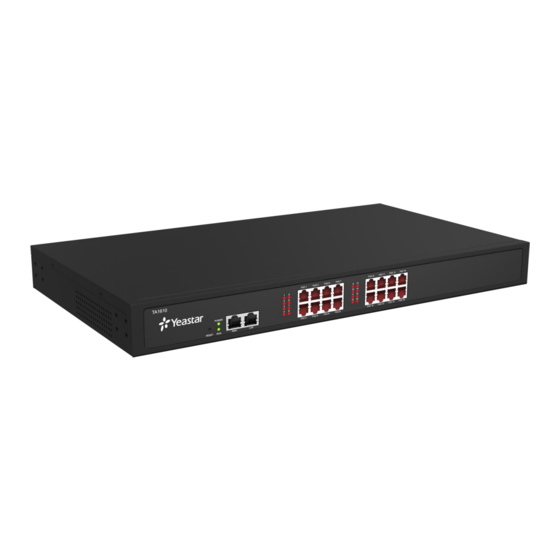

- Page 1 Sales Tel: +86-592-5503309 E-mail: sales@yeastar.com Support Tel:+86-592-5503301 E-mail: support@yeastar.com Web: http://www.yeastar.com Version: 40.19.0.15 Revised: January 25, 2016 https://arttel.ru/shop/voip-shlyuzy/yeastar-neogate-ta1610...
- Page 2 Declaration of Conformity Hereby, Yeastar Information Technology Co., Ltd. declares that TA1610 is in conformity with the essential requirements and other relevant provisions of the CE, FCC. Warranty The information in this document is subject to change without notice.
-
Page 3: Table Of Contents
TA1610 User Manual Contents About This Guide ....................5 Getting Started ......................6 Accessing Web GUI ......................6 Web Configuration Panel ...................... 7 Application Description ......................7 FXO Port Settings ....................11 FXO Port Settings ....................... 11 Port Group .......................... 15 VoIP Settings ...................... - Page 4 TA1610 User Manual Security Center ..................... 42 Security Center ........................42 Alert Settings........................43 AMI Settings ........................45 Certificates .......................... 46 Firewall Rules ........................47 IP Blacklist .......................... 49 System Preferences ..................... 51 Password Settings ......................51 Date and Time........................51 Auto Provision Settings .......................
-
Page 5: About This Guide
VoIP. Audience This manual will help you learn how to operate and manage your TA1610 FXO Analog VoIP Gateway. In this guide, we describe every detail on the functionality and configuration of TA1610. We begin by assuming that you are interested in TA1610 and familiar with networking and other IT disciplines. -
Page 6: Getting Started
TA1610 User Manual Getting Started In this chapter, we guide you through the basic steps to start with a new TA1610: Accessing Web GUI Web Configuration Panel Application Description Accessing Web GUI The TA1610 attempts to contact a DHCP server in your network to obtain valid network settings (e.g., the IP address, subnet mask, default gateway address and... -
Page 7: Web Configuration Panel
Three modes are available for you to connect your SIP server and TA1610 gateway. We call them SIP Account Mode, VoIP Mode and SPS (Service Provider SIP) Mode. You can choose any one of the 3 modes to connect your SIP server and TA1610. SPS Mode is recommended. - Page 8 TA1610 and receive incoming calls on your SIP phone or softphone. In this way, you don’t have to set up any SIP server. VoIP Mode Take a SIP account from your SIP server, and register it on TA1610 as a VoIP trunk. In this way, TA1610 and your SIP server are connected. ...
- Page 9 TA1610 route. Figure 2-2 Connect IPPBX and TA FXO Gateway For incoming calls from the PSTN to TA1610, TA1610 will forward the call to a configured SIP extension or to an inbound destination of IPPBX like IVR. Connect TA FXO Gateway and FXS Gateway TA FXO gateway can be connected to a FXS gateway using SPS/SPX Mode.
- Page 10 TA1610 User Manual Figure 2-3 Connect TA FXO Gateway and FXS Gateway 10/62 https://arttel.ru/shop/voip-shlyuzy/yeastar-neogate-ta1610...
-
Page 11: Fxo Port Settings
TA1610 User Manual FXO Port Settings This chapter explains how to configure FXO port on TA1610, go to Gateway→ Port List→ Port List page to configure the FXO ports. FXO Port Settings Port Group FXO Port Settings Click "Edit"... - Page 12 TA1610 User Manual 6 - 370 Ohm + (820 Ohm || 110nF) 7 - 275 Ohm + (78 Ohm || 150 nF) 8 - 120 Ohm + (820 Ohm || 110 nF) 9 - 350 Ohm + (1000 Ohm || 210nF) 10 - 0 Ohm + (900 Ohm || 30nF) 11 - 600 Ohm + 2.16 uF...
- Page 13 TA1610 User Manual limit), this feature is disabled. Cofigure the time duration when TA1610 will send Alarm threshold(min) the alarm message. The value must be less than “Max Call Duration”. Port Choose the port to dial the alarm call.
- Page 14 Answer Detection TA1610 starts to bill. Type 3) Ring back Tone: If you choose this option, TA1610 will charge the call according to PSTN ring back tone detection. When the "ring duration" or the "ring interval duration" detected on TA1610 is larger than the standard or custom parameters, the call is detected as ANSWERED.
-
Page 15: Port Group
TA1610 User Manual Max Ring Interval Max pause between the two ring tones. Duration Enable Min Ring Detection, which is useful for complex Min Ring situations, like when jitter or noise occurs on the PSTN line. Detection Generally it is disabled. - Page 16 TA1610 User Manual Figure 3-4 Port Group 16/62 https://arttel.ru/shop/voip-shlyuzy/yeastar-neogate-ta1610...
-
Page 17: Voip Settings
There are 3 types of trunks listed in this page, Account, Trunk and Service Provider. Figure 4-1 VoIP Trunk 1) Account It’s an SIP account created in TA1610 so that the other devices can register SIP trunk at their side using these information. Figure 4-2 Account... - Page 18 TA1610 User Manual 2) VoIP Trunk It’s a SIP trunk configured in TA1610 to register to the SIP provider, please make sure this trunk works properly in advance with provider before configuring TA1610. Figure 4-3 VoIP Trunk Settings Table 4-2 Description of VoIP Trunk Settings...
-
Page 19: Trunk Group
TA1610 User Manual Figure 4-4 Service Provider Trunk Settings Table 4-3 Description of Service Provider Trunk Settings Items Description Choose the type of trunk, “Service Provider”. Trunk Type A unique label to help you identify this trunk when Provider Name listed in outbound rules, incoming rules etc. -
Page 20: Sip Settings
TA1610 User Manual SIP Settings It is wise to leave the default setting as provided on this page. However, for a few fields, you need to change them to suit your situation. 1) General Figure 4-6 SIP General Settings... - Page 21 TA1610 User Manual rfc2833 Maximum duration (in seconds) of a SIP registration. Registration/Subscription The default is 3600 seconds. Time Minimum duration (in seconds) of a SIP registration. Registration/Subscription The default is 60 seconds. Time Default Incoming/Outgoing Registration Time: the...
- Page 22 3) Codecs We can choose the allowed codec in TA1610, a codec is a compression or decompression algorithm that used in the transmission of voice packets over a network or the Internet. For more information about codec, you can refer to this page: http://en.wikipedia.org/wiki/List_of_codecs...
- Page 23 TA1610 User Manual Figure 4-8 Codecs If you want to use codec G729, we recommend buying a license key and input it here. 4) Qos QoS (Quality of Service) is a major issue in VoIP implementations. The issue is how to guarantee that packet traffic for a voice or other media connection will not be delayed or dropped due interference from other lower priority traffic.
- Page 24 TA1610 User Manual Figure 4-11 SIP Advanced Settings Table 4-6 Description of SIP Advanced Settings Items Description Call ID Field Where to get the caller ID in SIP packet. DID Field Where to get the DID in SIP packet.
-
Page 25: Iax Settings
TA1610 User Manual IAX Settings IAX is the Internal Asterisk Exchange protocol, you can connect to TA FXO Gateway or register IAX trunk to another IAX server. It’s supported by the asterisk-based IPPBX. Figure 4-12 IAX Settings Table 4-7 Description of IAX Settings... -
Page 26: Routes Settings
TA1610 User Manual Routes Settings After connecting Yeastar TA1610 gateway with the VoIP server, you need to configure the routes settings on TA1610 to route the calls through the gateway. In this chapter, we introduce the following sections: IP->Port ... - Page 27 TA1610 User Manual 2) Detail Mode Choose “No” for Simple Mode, you will see the detailed configuration page as the following picture shows. Detailed settings for Match Incoming Calls and Handle Matched Incoming Calls are provided in Detailed Mode.
-
Page 28: Port->Ip/Port
Port->IP/Port routes are used to control incoming calls to PSTN trunks on TA1610 and route the calls to your SIP server or another PSTN trunk on TA1610. Click “Edit” to check the route details, there are two modes for you. - Page 29 TA1610 User Manual Table 5-3 Description of Simple Mode Route Items Description Define the route name. Route Name Choose the trunk or trunk group for the incoming calls. Call Source Choose the trunk or trunk group to route the incoming calls to.
-
Page 30: Blacklist
TA1610 User Manual Table 5-5 Description of Handle Matched lncoming Calls Settings Items Description Choose the trunk or trunk group to route the incoming calls Call Destination Direct number to the SIP Server. The parameter is ignored Hotline if a SIP Account is selected on this route. - Page 31 TA1610 User Manual Figure 5-6 Callback Settings 31/62 https://arttel.ru/shop/voip-shlyuzy/yeastar-neogate-ta1610...
-
Page 32: Gateway Settings
TA1610 User Manual Gateway Settings This chapter explains Gateway settings, which can be applied globally to TA1610. The gateway settings can be configured under Gateway→ Gateway Settings. General Preferences General Preferences Figure 6-1 General Preferences Table 6-1 General Preferences... -
Page 33: Audio Settings
TA1610 User Manual Audio Settings This chapter explains prompt settings on TA1610. Custom Prompts Custom Prompts We can upload the prompts in this page; you can also download it and save it as a backup. Figure 7-1 Custom Prompts The administrator can upload prompts by doing the following: 1)Click “Upload Prompt”. -
Page 34: Advanced Settings
TA1610 User Manual Advanced Settings This chapter explains SIP settings and Distinctive Ringtones. Tone Zone Settings DTMF Settings Tone Zone Settings Advanced ring tones for all the FXO ports can be configured on this page. There are pre-grogrammed tone zone settings for some countries and regions. -
Page 35: Dtmf Settings
2nd Dial Tone Used for the second stage dial tone. DTMF Settings DTMF signal sent from TA1610 to the receiver can be set on this page. Digit Length and Dial Pause Between Digit: 100.100 (ms) Default Digit Volume: -10,-10 (dB) -
Page 36: Network Preferences
DDNS Settings Static Route LAN Settings After successfully logging in the TA1610 Web GUI for the first time, users could go System→Network Preferences→LAN Settings to configure the network for TA1610. Figure 9-1 LAN Settings Table 9-1 LAN Settings... -
Page 37: Service
Figure 9-4 Service Settings Table 9-2 Description of Service Settings Items Description By using SSH, you can log in to TA1610 and run commands. It's disabled by default. We don't recommend enabling it if not needed. The default port for SSH is 8022. -
Page 38: Vlan Settings
A VPN can provide secure information transport by authenticating users, and encrypting data to prevent unauthorized persons from reading the information transmitted. The VPN can be used to send any kind of network traffic securely. TA1610 supports OpenVPN. 38/62 https://arttel.ru/shop/voip-shlyuzy/yeastar-neogate-ta1610... -
Page 39: Ddns Settings
Notes: 1. Uncomment “user” and “group” in the “config” file. You can get the config package from the OpenVPN provider. 2. TA1610 works as VPN client mode only. DDNS Settings DDNS(Dynamic DNS) is a method/protocol/network service that provides the capability for a networked device, such as a router or computer system using the... -
Page 40: Static Route
TA1610 User Manual Host Name The host name you have got from the DDNS server Note: DDNS allows you to access your network using domain names instead of IP address. The service manages changing IP address and updates your domain information dynamically. -
Page 41: Snmp Settings
Interface Define which internet port to go through. SNMP Settings Simple Network Management Protocol (SNMP) is an Internet-standard protocol for managing devices on IP networks. Yeastar TA1610 gateway supports three versions: V1, V2C and V3. Figure 9-9 SNMP Settings 41/62... -
Page 42: Security Center
TA1610 User Manual Security Center This chapter describes how to secure your TA1610. It is strongly recommended that users configure firewall and other security options on TA1610 to prevent the attack fraud and the system failure or calls loss. -
Page 43: Alert Settings
TA1610 User Manual 3) Port In “Port” tab, you can check SIP port and HTTP port. You can also enter the relevant page by clicking the button in “Setting” column. Figure 10-3 Security Center—Port Alert Settings If the device is under attack, the system will alert users via call or E-mail. - Page 44 TA1610 User Manual Figure 10-4 Alert Settings Table 10-1 Description of Alert Settings Phone Notification Settings PHONE Whether to enable phone notification or not. Notification The numbers could be set for alert notification; users can setup multiple extension and outbound phone numbers.
-
Page 45: Ami Settings
TA1610 using AMI interface. It is disabled by default. If necessary, you can enable it. Figure 10-5 AMI Settings User Name, Password & Port After enabling AMI, you can use this username and password to log in TA1610. The default port is 5038. 45/62 https://arttel.ru/shop/voip-shlyuzy/yeastar-neogate-ta1610... -
Page 46: Certificates
Gateway Certificate This certificate is server certificate. No matter selecting “TLS Verify Client” as “Yes” or “NO”, you should upload this certificate to TA1610. If the VoIP provider enables “TLS Verify server”, you should also upload the relevant CA certificate on the VoIP provider. -
Page 47: Firewall Rules
TA1610 User Manual Firewall Rules Firewalls are used to prevent unauthorized Internet users from accessing private networks connected to the Internet, especially intranets. All messages entering or leaving the intranet pass through the firewall, which examines each message and blocks those that do not meet the specified security criteria. - Page 48 TA1610 User Manual Figure 10-8 Common Rules Table 10-3 Description of Common Rules Items Description A name for this rule, e.g. “HTTP”. Name Simple description for this rule. E.g. accept the specific host to Description access the Web interface for configuration.
-
Page 49: Ip Blacklist
TA1610 User Manual Table 10-4 Description of Auto Defense Items Description The port you want to auto defense, for example, 8022. Port Select the protocol. You can select UDP or TCP. Protocol The maximum packets or connections can be handled per unit time. - Page 50 TA1610 User Manual Table 10-5 Description of Auto Blacklist Rules Items Description Auto defense port Port Auto defense protocol. TCP or UDP. Protocol Allowed IP packets number in the specific time interval. IP Packets The time interval to receive IP packets. For example, IP packets 90, Time interval time interval 60 means 90 IP packets are allowed in 60 seconds.
-
Page 51: System Preferences
4. Log in TA1610 using the new password. Figure 11-1 Password Settings Date and Time Please adjust the time of TA1610 (including the time zone) consistent with your local time. Go to System→System Preferences→Date and Time to configure the system date and time. -
Page 52: Auto Provision Settings
MyPBX during boots up. In PNP mode, you just need to place the TA1610 in the same IP range network with MyPBX, then you can find the TA1610 and provision it on MyPBX ”TA Provisioning”... - Page 53 Figure 11-6 Set TA1610 as a DHCP Client Another way to do auto provision is to download configuration file from the configured server URL. Fill in the URL, user name, password, and set the time, TA1610 will get the configuration file from the server automatically and regularly.
-
Page 54: Firmware Update
When updating the firmware, please don’t turn off the power. Or the system will be damaged. If you are trying to upgrade through HTTP, please make sure that your TA1610 is able to visit external network, or it cannot access Yeastar website to get the firmware file, causing the upgrade fail. -
Page 55: Upgrade Through Tftp
TA1610 User Manual Figure 11-8 Upgrade through HTTP Upgrade through TFTP Step1.Download firmware file from Yeastar website. Step2. Create a tftp Server (For example, tftpd on Windows). 1) Install tftpd32 software on computer . http://tftpd32.jounin.net/tftpd32_download.html Download link: 2) Configure tftpd32. -
Page 56: Backup And Restore
TA1610 configurations to a file. Notes: 1. When you have updated the firmware version, it’s not recommended to restore using an old package. 2. Backup from an earlier version cannot be restored on TA1610 of a later version. Create a New Backup Click to create a new backup. - Page 57 TA1610 User Manual Reset and Reboot. Figure 11-12 Reset and Reboot 57/62 https://arttel.ru/shop/voip-shlyuzy/yeastar-neogate-ta1610...
-
Page 58: Status
TA1610 User Manual Status Users could check the system status on Status→System Status, where FXO Port and trunk Status, Network Status and System Info can be checked. Port/Trunk Status Network Status System Info Port/Trunk Status Figure 12-1 Port/Trunk Status ... -
Page 59: Network Status
TA1610 User Manual VoIP Trunk Status 1) SIP/IAX Type Table 12-2 Description of SIP/IAX Trunk Status Status Description Registered Successful registration, trunk is ready for use. Unregistered Trunk registration failed. Request Sent Registering. Waiting for Wrong password. Authentication... -
Page 60: System Info
TA1610 User Manual System Info In this page, we can check the hardware/firmware version, or the disk usage of TA FXO Gateway. Figure 12-3 System Info 60/62 https://arttel.ru/shop/voip-shlyuzy/yeastar-neogate-ta1610... -
Page 61: Reports
TA1610 User Manual Reports Users could check the call logs, system logs on Status→Reports page, and use the packet Tool and Port Monitor Tool to capture debug logs from TA1610. Call Logs System Logs Packet Tool ... -
Page 62: Packet Tool
Figure 13-2 System Logs Packet Tool This feature is used to capture packets for technician. Integrate packet capture tool “Wireshark” in TA1610. Users also could specify the destination IP address and port to get the packets. Figure 13-3 Packet Tool ...
