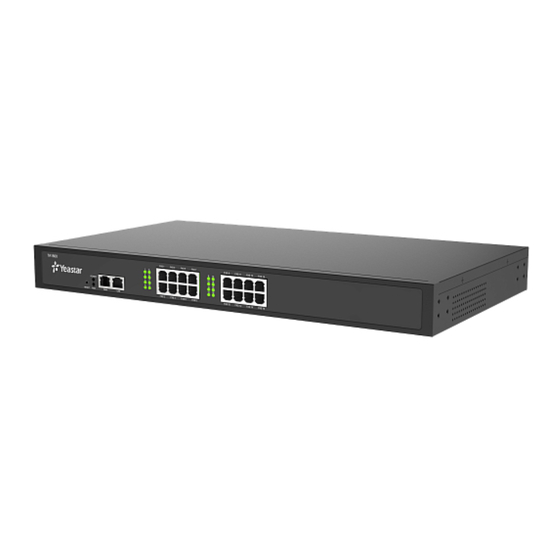

Yeastar Technology TA1600 Installation Manual
Fxs voip gateway
Hide thumbs
Also See for TA1600:
- User manual (87 pages) ,
- Installation manual (20 pages) ,
- Installation manual (17 pages)
Related Manuals for Yeastar Technology TA1600
Summary of Contents for Yeastar Technology TA1600
- Page 1 Installation Guide blank Yeastar TA1600/2400/3200 V3/V4 FXS VoIP Gateway TA1600/2400/3200 Installation Guide Version: 1.0 Date: 2022-02-15...
-
Page 2: Table Of Contents
Contents Safety Disclaimers and Installation Warnings................1 Packing List........................... 2 Hardware Overview........................3 TA1600 Hardware Overview....................3 TA2400 Hardware Overview....................4 TA3200 Hardware Overview....................6 Connect Yeastar TA Gateway...................... 8 Connect Yeastar TA Gateway (Frame Ground)................9... -
Page 3: Safety Disclaimers And Installation Warnings
Safety Disclaimers and Installation Warnings To avoid unexpected accident, personal injury or device damage, read the safety disclaimers and installation warnings. Power • Use only the power cord provided with the Yeastar TA device. • Keep the power off during the installation. •... -
Page 4: Packing List
Upon receiving Yeastar TA 1600/2400/3200 gateway, you can open the package and check if all the items are supplied as per packing list. Note: If there are any problems, contact your provider. Table 2. TA1600/2400/3200 packing list Item Unit Description TA1600/2400/3200 Device unit. -
Page 5: Hardware Overview
Hardware Overview TA1600 Hardware Overview TA1600 front panel Table 3. Feature Description Press and hold for 7 seconds to reset to factory defaults. ① Note: Reset Button Do NOT press this button for a long time, or the sys tem would break down. -
Page 6: Ta2400 Hardware Overview
TA1600/2400/3200 Installation Guide | 3 - Hardware Overview | 4 Table 3. (continued) Feature Description ⑦ RJ11 FXS Ports For connection to analog phones or fax machines. TA1600 back panel Table 4. Feature Description ⑧ For connection to analog phones or fax machines with one RJ21 FXS Ports RJ21 to RJ11 cable. - Page 7 TA1600/2400/3200 Installation Guide | 3 - Hardware Overview | 5 Table 5. (continued) Feature Description Note: Do NOT press this button for a long time, or the sys tem would break down. Indicates the power status. ② Power LED • On: The power is switched on.
-
Page 8: Ta3200 Hardware Overview
TA1600/2400/3200 Installation Guide | 3 - Hardware Overview | 6 Table 6. (continued) Feature Description ⑪ Protective Earth Protect the personnel and the equipment. TA3200 Hardware Overview TA3200 front panel Table 7. Feature Description Press and hold for 7 seconds to reset to factory defaults. - Page 9 TA1600/2400/3200 Installation Guide | 3 - Hardware Overview | 7 Table 7. (continued) Feature Description • Solid green: The port is idle or no line is connected to the port. • Green light blinking: There is a call reaches the port or the port is busy in a call.
-
Page 10: Connect Yeastar Ta Gateway
Connect Yeastar TA Gateway Follow the steps to connect Yeastar TA1600/2400/3200 FXS VoIP gateway. 1. Connect TA gateway to the Internet LAN port can be connected to router or PBX. 2. Connect TA gateway to analog phones FXS ports can be connected to analog phones. -
Page 11: Connect Yeastar Ta Gateway (Frame Ground)
Connect Yeastar TA Gateway (Frame Ground) Yeastar TA1600/2400/3200 FXS VoIP gateway supports ground protection. Follow the in structions to connect the TA gateway to the ground. Warning: • The ground wire must be installed by the service person. • Proper grounding (connection to ground) is very important to reduce the risk to the user of electrocution or to protect the TA device from the bad effects of external noise in the case of a lightning strike.
