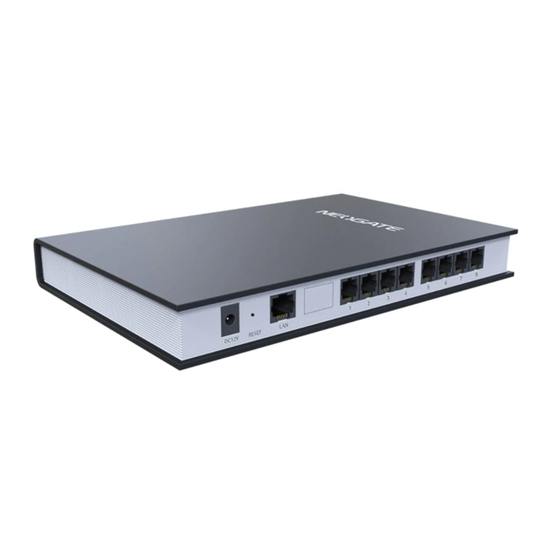

Yeastar Technology TA400 User Manual
Hide thumbs
Also See for TA400:
- Installation manual (20 pages) ,
- User manual (20 pages) ,
- Installation manual (17 pages)
Related Manuals for Yeastar Technology TA400
Summary of Contents for Yeastar Technology TA400
- Page 1 Sales Tel: +86-592-5503309 E-mail: sales@yeastar.com Support Tel:+86-592-5503301 E-mail: support@yeastar.com Web: http://www.yeastar.com Version: 41.19.0.16 Revised: January 25, 2016...
-
Page 2: Declaration Of Conformity
Declaration of Conformity Hereby, Yeastar Information Technology Co., Ltd. declares that TA400/800 is in conformity with the essential requirements and other relevant provisions of the CE, FCC. Warranty The information in this document is subject to change without notice. -
Page 3: Table Of Contents
Call Waiting ........................... 9 Call Transfer .......................... 9 Three-party Conference ...................... 10 Direct IP Call ........................10 Change TA400/800’s IP Address Using Analog Phones ............ 10 FXS Port Settings ....................12 General Settings ......................... 12 Other Settings ........................14 Hunt Group ......................... 15 VoIP Settings ...................... - Page 4 TA400/800 User Manual Network Preferences .................... 38 LAN Settings ........................38 Service ..........................39 VLAN Settings........................40 VPN Settings........................40 DDNS Settings ........................41 Static Route ......................... 42 TR-069 Settings ........................43 Security Center ..................... 45 Security Center ........................45 Alert Settings........................
-
Page 5: About This Guide
VoIP. Audience This manual will help you learn how to operate and manage your TA400/800 FXS Analog VoIP Gateway. In this guide, we describe every detail on the functionality and configuration of TA400/800. We begin by assuming that you are interested in TA400/800 and familiar with networking and other IT disciplines. -
Page 6: Getting Started
TA400/800 User Manual Getting Started In this chapter, we guide you through the basic steps to start with a new TA400/800: Accessing Web GUI Web Configuration Panel Making and Receiving Calls Accessing Web GUI The TA400/800 attempts to contact a DHCP server in your network to obtain valid network settings (e.g., the IP address, subnet mask, default gateway address and... -
Page 7: Web Configuration Panel
TA400/800 User Manual Web Configuration Panel There are 4 main sections on the Web Configuration Panel for users to check the TA400/800’s status and configure it. Status: check System Status, Port Status, Trunk Status, Network Status and check call logs, system logs. -
Page 8: Basic Operations
Change TA400/800’s IP Address Voice Menu TA400/800 provides a voice menu to guide you to configure the network settings for the device. You need to press *** on the analog phone which is connected to TA400/800’s FXS port to enter the voice menu. -
Page 9: Call Hold
Figure 3-2 Enable Call Waiting Call Transfer Blind transfer and attended transfer are supported on TA400/800. Users can achieve call transfer by pressing the feature code during the call. Blind Transfer Default feature code: *03 1. -
Page 10: Three-Party Conference
To call the IP phone, you should dial *96192*168*2*123*5060 on the analog phone. Change TA400/800’s IP Address Using Analog Phones By default, TA400/800 obtains a dynamic IP address from the DHCP server. You can change the device’s IP address via the analog phone which is connected to the FXS port. - Page 11 TA400/800 User Manual Here we introduce how to set a static IP address for TA400/800. IP address: 192.168.10.125 Subnet mask: 255.255.255.0 Gateway: 192.168.10.1 DNS: 8.8.8.8 1. Press *** to enter the voice menu. 2. Press 3 to enter the ―Advanced Settings‖.
-
Page 12: Fxs Port Settings
TA400/800 User Manual FXS Port Settings This chapter explains how to configure FXS port on TA400/800, go to Gateway→ Port List→ Port List page to configure the FXS ports. General Settings Other Settings Hunt Group Click "Edit" button to configure the FXS port. - Page 13 TA400/800 User Manual example, Bob Jones. Caller ID Number The Caller ID string used when this user calls another user. Choose a VoIP server, where the account will be VoIP Server registered. User Name User name provided by VoIP server.
-
Page 14: Other Settings
TA400/800 User Manual Other Settings Figure 4-2 FXS Port Other Settings Table 4-2 Description of FXS Port Other Settings Follow Me Choose the forward type and configure the relevant destination number. In different conditions, the incoming calls to the account will be forwarded to different destinations. -
Page 15: Hunt Group
TA400/800 User Manual Check this option if you want to customize the ring time. Ring Ring Out tone will stop over the time defined. Volume Settings Rxgain Adjust receive gain. Txgain Adjust transmit gain. Caller ID Settings choose the Caller ID signaling: ... - Page 16 TA400/800 User Manual groups on TA FXS Gateway2400. Hunt group will be chosen when configuring the FXS port "Follow Me". The hunt group will work when a call reaches the FXS port associated user which is busy or no answer.
- Page 17 TA400/800 User Manual of the FXS users even if one of the previous local users becomes free. When the end of the hunting group is reached, the hunting starts over at the first local users. Linear Linear hunting is also referred to serial hunting. In linear hunting, calls are always...
-
Page 18: Voip Settings
TA400/800 User Manual VoIP Settings To integrate with other IPPBX, we need to configure the VoIP settings in TA FXS Gateway to set up VoIP trunk (SIP and IAX). In this chapter, we introduce the following settings: VoIP Server Settings ... - Page 19 TA400/800 User Manual Figure 5-2 Template Register Check VoIP settings below. General Table 5-1 Description of VoIP Server General Settings Items Description Server ID The ID for the VoIP server template. Server Name The name for the VoIP server template.
-
Page 20: Dial Pattern Template
Set default mode for sending DTMF of this trunk. Default DTMF Mode setting: rfc2833 Define the codec for this sip trunk and its priority. TA400/800 Codec supports the following codec: u-law, a-law, G726, G729A/B, GSM, ADPCM, G722, G723, iLBC. -
Page 21: Sip Settings
TA400/800 User Manual Table 5-3 Description of Dial Pattern Template Settings Items Description Template ID The ID for this template. Template Name A name for this template. Calls from the FXS port should match the dial pattern set on this template, or the call cannot be established. - Page 22 TA400/800 User Manual Table 5-4 Description of SIP General Settings Items Description UDP Port Port used for SIP registrations. The default is 5060. Enable Random Port Enable or Disable Random SIP port. Random Port Update Set the Random Port Update Interval.
- Page 23 TA400/800 User Manual more than one IP address. To change the user agent parameter of asterisk, the default is ―TA FXS Gateway‖; you can change it if User Agent needed. If you would like to use G.729 codec, please buy the G.729 License Key...
- Page 24 TA400/800 User Manual Please refer to RFC1918 for more information. Global NAT configuration for the system; the options for this setting are as follows: Yes = Use NAT. Ignore address information in the SIP/SDP headers and reply to the sender's IP address/port.
- Page 25 TA400/800 User Manual 5) T.38 Settings on this page is for the purpose of improving receiving and sending T.38 FAX. Figure 5-8 T.38 Settings Table 5-6 Description of T.38 Settings Items Description Re-invite SDP Not Add T.38 If set to Yes, SDP in re-invite packet will not add Attributes T.38 attributes.
-
Page 26: Iax Settings
TA400/800 User Manual DID Field Where to get the DID in SIP packet. It is set when the telecom provider needs. Usually 180 Ringing it is not needed. Whether to send Remote-Party-ID on SIP header Remote Party ID or not. Default: no. - Page 27 TA400/800 User Manual codec to be used. Minimum Registration Minimum duration (in seconds) of an IAX2 registration. Time/Subscription Time Default is 60 seconds Maximum Registration Maximum duration (in seconds) of an IAX2 registration. Time/Subscription Time Default is 1200 seconds. 27/64...
-
Page 28: Gateway Settings
TA400/800 User Manual Gateway Settings This chapter explains Gateway settings, which can be applied globally to TA400/800. The gateway settings can be configured under Gateway→ Gateway Settings. Basic Preferences Feature Codes Speed Dial Basic Preferences Figure 6-1 Basic Preferences... -
Page 29: Feature Codes
Set the iLBC packet frame size. Feature Codes There are various feature codes on TA400/800. The feature codes are used to acquire the gateway info or activate and inactivate supplementary services. The default feature codes are illustrated below. The parameters for feature codes are configurable. - Page 30 TA400/800 User Manual Password the advanced settings. The default password is 123456. Settings Call Forwarding Preferences Table 6-3 Description of Call Forwarding Preferences Items Default Description Users may reset all call forwarding defaults Reset to Defaults by calling *70 on their phone.
-
Page 31: Speed Dial
The number you want to call. To make a speed dial, e.g. you want to call 18033334444, simply dial *981. The *98 tells TA400/800 that you want to use the Speed Dial and the 1 is the Speed Dial Code for destination number 18033334444. -
Page 32: Prompt Settings
TA400/800 User Manual Prompt Settings This chapter explains prompt settings on TA400/800. Custom Prompts Music on Hold Prompts System Prompts Custom Prompts We can upload the prompts in this page; you can also download it and save it as a backup. -
Page 33: Music On Hold Prompts
TA400/800 User Manual Music on Hold Prompts In this page, we can upload the music on hold prompts. Figure 7-3 Music On Hold The administrator can upload on hold music as follows: 1) Click ―Upload Music on Prompt‖. 2) Click ―Browse‖ to choose the desired audio file. - Page 34 TA400/800 User Manual Figure 7-5 System Prompts Settings Page 34/64...
-
Page 35: Advanced Settings
RADIUS Settings Distinctive Ringtones TA400/800 provides 10 configurable distinctive ringtones. Users could configure different ringtones to match different incoming caller ID. For example, if Inbound Caller Pattern is configured as ―100.‖, all the incoming calls start with digits ―100‖ will ring using cadence ―2000,4000‖ as the following figure shows. -
Page 36: Radius Settings
TA400/800 User Manual configure the tone zone settings on TA FXS Gateway: http://www.itu.int/ITU-T/inr/forms/files/tones-0203.pdf Figure 8-3 Customize Tones Table 8-1 Description of Tone Zone Settings Items Description Choose the country to get pre-programmed tone zone settings or Country/Region choose "User custom for Tone Zone" to configure the settings manually. - Page 37 TA400/800 User Manual Figure 8-4 RADIUS Settings Table 8-2 Description of RADIUS Settings Items Description Enable RADIUS Enable RADIUS on TA FXS Gateway. Primary Server IP Set IP address of the primary server. Primary Server Default is 1813. Specifies the port to be used for the primary Port RADIUS account.
-
Page 38: Network Preferences
Static Route TR-069 Settings LAN Settings After successfully logging in the TA400/800 Web GUI for the first time, users could go System→Network Preferences→LAN Settings to configure the network for TA400/800. Figure 9-1 LAN Settings Table 9-1 LAN Settings... -
Page 39: Service
Figure 9-4 Service Settings Table 9-2 Description of Service Settings Items Description By using SSH, you can log in to TA400/800 and run commands. It's disabled by default. We don't recommend enabling it if not needed. The default port for SSH is 8022. -
Page 40: Vlan Settings
A VPN can provide secure information transport by authenticating users, and encrypting data to prevent unauthorized persons from reading the information transmitted. The VPN can be used to send any kind of network traffic securely. TA400/800 supports OpenVPN. 40/64... -
Page 41: Ddns Settings
Notes: 1. Uncomment ―user‖ and ―group‖ in the ―config‖ file. You can get the config package from the OpenVPN provider. 2. TA400/800 works as VPN client mode only. DDNS Settings DDNS(Dynamic DNS) is a method/protocol/network service that provides the capability for a networked device, such as a router or computer system using the... -
Page 42: Static Route
TA400/800 User Manual Host Name The host name you have got from the DDNS server Note: DDNS allows you to access your network using domain names instead of IP address. The service manages changing IP address and updates your domain information dynamically. -
Page 43: Tr-069 Settings
SOAP/HTTP-based protocol, it provides the communication between customer-premises equipment (CPE) and Auto Configuration Servers (ACS). Yeastar TA400/800 acts as a CPE, enable TR-069 and configure the parameters in the corresponding fields, if configured correctly, the gateway will establish the TR-069 session with the ACS. - Page 44 TA400/800 User Manual STUN Server The STUN Server username. Username STUN Server The STUN server password. Password Connection HTTP URL for an ACS to make a Connection Request notification Request Address to the CPE. Connection Username used to authenticate an ACS making a Connection Request Request to the CPE.
-
Page 45: Security Center
TA400/800 User Manual Security Center This chapter describes how to secure your TA400/800. It is strongly recommended that users configure firewall and other security options on TA400/800 to prevent the attack fraud and the system failure or calls loss. ... -
Page 46: Alert Settings
TA400/800 User Manual 3) Port In ―Port‖ tab, you can check SIP port and HTTP port. You can also enter the relevant page by clicking the button in ―Setting‖ column. Figure 10-3 Security Center—Port Alert Settings If the device is under attack, the system will alert users via call or E-mail. - Page 47 TA400/800 User Manual Figure 10-4 Alert Settings Table 10-1 Description of Alert Settings Phone Notification Settings PHONE Whether to enable phone notification or not. Notification The numbers could be set for alert notification; users can setup multiple extension and outbound phone numbers.
-
Page 48: Ami Settings
TA400/800 using AMI interface. It is disabled by default. If necessary, you can enable it. Figure 10-5 AMI Settings User Name, Password & Port After enabling AMI, you can use this username and password to log in TA400/800. The default port is 5038. 48/64... -
Page 49: Certificates
TA400/800 User Manual Permitted "IP address/Subnet mask" You can set which IP is allowed to log in TA400/800 AMI interface. Certificates TA400/800 supports TLS transport, you can configure FXS port with TLS transport. To use TLS, you should upload certificates first. -
Page 50: Firewall Rules
TA400/800 User Manual Firewall Rules Firewalls are used to prevent unauthorized Internet users from accessing private networks connected to the Internet, especially intranets. All messages entering or leaving the intranet pass through the firewall, which examines each message and blocks those that do not meet the specified security criteria. - Page 51 TA400/800 User Manual Figure 10-8 Common Rules Table 10-3 Description of Common Rules Items Description A name for this rule, e.g. ―HTTP‖. Name Simple description for this rule. E.g. accept the specific host to Description access the Web interface for configuration.
-
Page 52: Ip Blacklist
TA400/800 User Manual Table 10-4 Description of Auto Defense Items Description The port you want to auto defense, for example, 8022. Port Select the protocol. You can select UDP or TCP. Protocol The maximum packets or connections can be handled per unit time. - Page 53 TA400/800 User Manual Table 10-5 Description of Auto Blacklist Rules Items Description Auto defense port Port Auto defense protocol. TCP or UDP. Protocol Allowed IP packets number in the specific time interval. IP Packets The time interval to receive IP packets. For example, IP packets 90, Time interval time interval 60 means 90 IP packets are allowed in 60 seconds.
-
Page 54: System Preferences
4. Log in TA400/800 using the new password. Figure 11-1 Password Settings Date and Time Please adjust the time of TA400/800 (including the time zone) consistent with your local time. Go to System→System Preferences→Date and Time to configure the system date and time. -
Page 55: Auto Provision Settings
MyPBX during boots up. In PNP mode, you just need to place the TA400/800 in the same IP range network with MyPBX, then you can find the TA400/800 and provision it on MyPBX ‖TA Provisioning‖... - Page 56 Server). Figure 11-5 Set MyPBX as a DHCP Server Then select DHCP mode on LAN settings page to make TA400/800 as a DHCP client. Figure 11-6 Set TA400/800 as a DHCP Client Another way to do auto provision is to download configuration file from the configured server URL.
-
Page 57: Firmware Update
With Yes, it will always apply the updated configuration file. Firmware Update TA400/800 can be upgraded to a new firmware version via network or locally. Users could upgrade firmware via HTTP or TFTP. Please go to System→ System Preferences→ Firmware Update to do upgrade. -
Page 58: Upgrade Through Tftp
On option ―Current Directory‖, click ―Browse‖ button, choose the firmware file (BIN file) upgraded patch. Figure 11-9 Configure Tftpd32 Step3. Logon the TA400/800’s Web page and go to System→System Preferences→Firmware Update, choose ―TFTP Server‖. 1) TFTP Server: fill in IP address of tftpd32 server (your PC’s IP address). -
Page 59: Backup And Restore
TA400/800 configurations to a file. Notes: 1. When you have updated the firmware version, it’s not recommended to restore using an old package. 2. Backup from an earlier version cannot be restored on TA400/800 of a later version. Create a New Backup Click to create a new backup. - Page 60 TA400/800 User Manual Reset and Reboot. Figure 11-12 Reset and Reboot 60/64...
-
Page 61: Status
TA400/800 User Manual Status Users could check the system status on Status→System Status, where FXS Port Status, Network Status and System Info can be checked. FXS Port Status Network Status System Info FXS Port Status Figure 12-1 FXS Port Status... -
Page 62: Network Status
TA400/800 User Manual Network status In this page, the IP address of LAN port will appear with their status. Figure 12-2 Network Status If your VLAN or VPN are configured, you can check the status in this page also. System Info In this page, we can check the hardware/firmware version, or the disk usage of TA FXS Gateway. -
Page 63: Reports
TA400/800 User Manual Reports Users could check the call logs, system logs on Status→Reports page, and use the packet Tool and Port Monitor Tool to capture debug logs from TA400/800. Call Logs System Logs Packet Tool ... -
Page 64: Packet Tool
Figure 13-2 System Logs Packet Tool This feature is used to capture packets for technician. Integrate packet capture tool ―Wireshark‖ in TA400/800. Users also could specify the destination IP address and port to get the packets. Figure 13-3 Packet Tool ...
