- Page 1 How to Connect Yeastar TA FXS Gateway to 3CX Version: 1.0 Revised: 2015.07.29 Yeastar Information Technology Co. Ltd.
- Page 2 How to Connect Yeastar TA FXS Gateway to 3CX Contents 1. Introduction ..................3 2. Preparation ..................4 3. VoIP Mode .................... 5 4. SPS/SPX Mode ..................8 2/14...
-
Page 3: Introduction

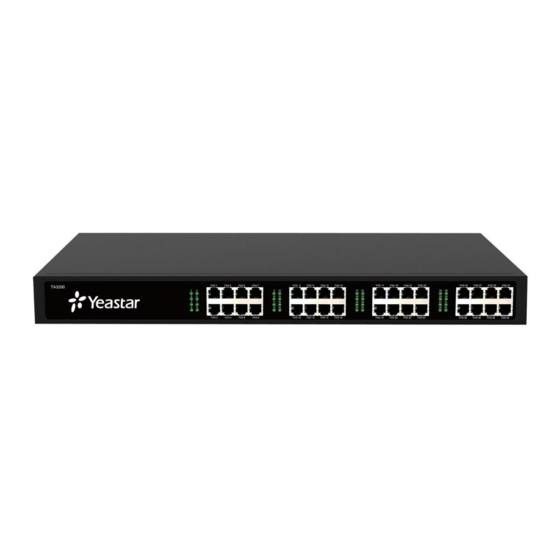

How to Connect Yeastar TA FXS Gateway to 3CX 1. Introduction This application note shows how to connect 3CX Phone System to Yeastar TA FXS gateway. This guide has been tested with Yeastar TA3200 and 3CX firmware version: 12.0.35528.640. Two modes are available for Yeastar TA to connect to 3CX, we call them VoIP trunk mode and Service Provider SIP/IAX trunk mode (SPS/SPX). -
Page 4: Preparation
How to Connect Yeastar TA FXS Gateway to 3CX 2. Preparation Yeastar TA3200 attempts to contact a DHCP server in your network to obtain valid network settings (e.g., the IP address, subnet mask, default gateway address and DNS address) by default. Before connecting Yeastar TA3200 to 3CX phone system, you need to set a static IP address from the same LAN with the 3CX phone system. -
Page 5: Voip Mode
How to Connect Yeastar TA FXS Gateway to 3CX 3. VoIP Mode If you choose VoIP mode, the FXS ports will be registered as the 3CX's SIP extensions, whose functions are the same with other SIP extensions on 3CX. Figure 3. Connect TA3200 and 3CX Phone System via VoIP Mode Step 1. - Page 6 How to Connect Yeastar TA FXS Gateway to 3CX Figure 5. Configure the VoIP Server Template as VoIP Mode Server Name: Type: Enable Register: checked Transport: Hostname/IP: fill in the 3CX phone system IP address, 192.168.2.152 Domain: fill in the 3CX phone system IP address, 192.168.2.152 Step 3.
- Page 7 How to Connect Yeastar TA FXS Gateway to 3CX Step 4. Edit the FXS port Path: Gateway→FXS Port List→FXS Port List Figure 7. Edit the FXS Port Primary Server: choose “3CX(1)”, the VoIP server template configured in Step 2. User Name: the extension username on 3CX phone system, 100.
-
Page 8: Sps/Spx Mode
How to Connect Yeastar TA FXS Gateway to 3CX 4. SPS/SPX Mode If you choose this mode to connect Yeastar TA3200 and 3CX phone system, the FXS port will be registered as a Service Provider SIP/IAX (SPS/SPX) trunk to the 3CX phone system. - Page 9 How to Connect Yeastar TA FXS Gateway to 3CX Figure 11. VoIP Provider 3) Enter External Number and Authentication ID (You can enter any number as long as it is not the same with extension numbers of 3CX, take 9999 as an example here). And click “Next”.
- Page 10 How to Connect Yeastar TA FXS Gateway to 3CX 5) Click "Skip" to finish the SIP trunk configuration. Figure 14. VoIP Provider 6) On "Ports/Trunk status" page, we can check the trunk status. Figure 15. SIP Trunk Status Step 2. Edit one VoIP Server template as SPS mode. Path: Gateway→VoIP Settings→VoIP Server Settings Do not check "Enable Register", choose SIP protocol, and fill in the 3CX phone...
- Page 11 How to Connect Yeastar TA FXS Gateway to 3CX Figure 16. Configure the VoIP Server Template as SPS Mode Server Name: Type: Enable Register: DO NOT check Transport: Hostname/IP: fill in 3CX phone system's IP address, 192.168.2.152 Domain: fill in 3CX phone system's IP address, 192.168.2.152 Step 3.
- Page 12 How to Connect Yeastar TA FXS Gateway to 3CX Path: Gateway→FXS Port List→FXS Port List Figure 18. Edit the FXS Port Number: set a number for the FXS port. The number should be different from the extension numbers on 3CX phone system. Here we set number 500 for FXS port 1. Primary Server: choose “3CX(1)”, the VoIP server template configured on step 2.
- Page 13 How to Connect Yeastar TA FXS Gateway to 3CX Figure 20. Create DID on 3CX Phone System Inbound route name: From_NeoGateTA3200 DID/DDI number/mask: 9999, which is the same with the trunk external number. Available ports: NeoGate_TA3200 Office Hours: Connect to Digital Receptionist Now you can make calls from the phone which is connected to TA3200 FXS port1 to 3CX phone system by dialing number 9999.
- Page 14 How to Connect Yeastar TA FXS Gateway to 3CX Strip: Now, extensions from 100 to 105 on 3CX phone system are allowed to make calls to the phone which is connected to Yeastar TA3200 FXS port 1. To call the phone, you should dial 9500.
