Removal Procedure
8.6

Removal of Power Supply / Control PCB

Warning
Step

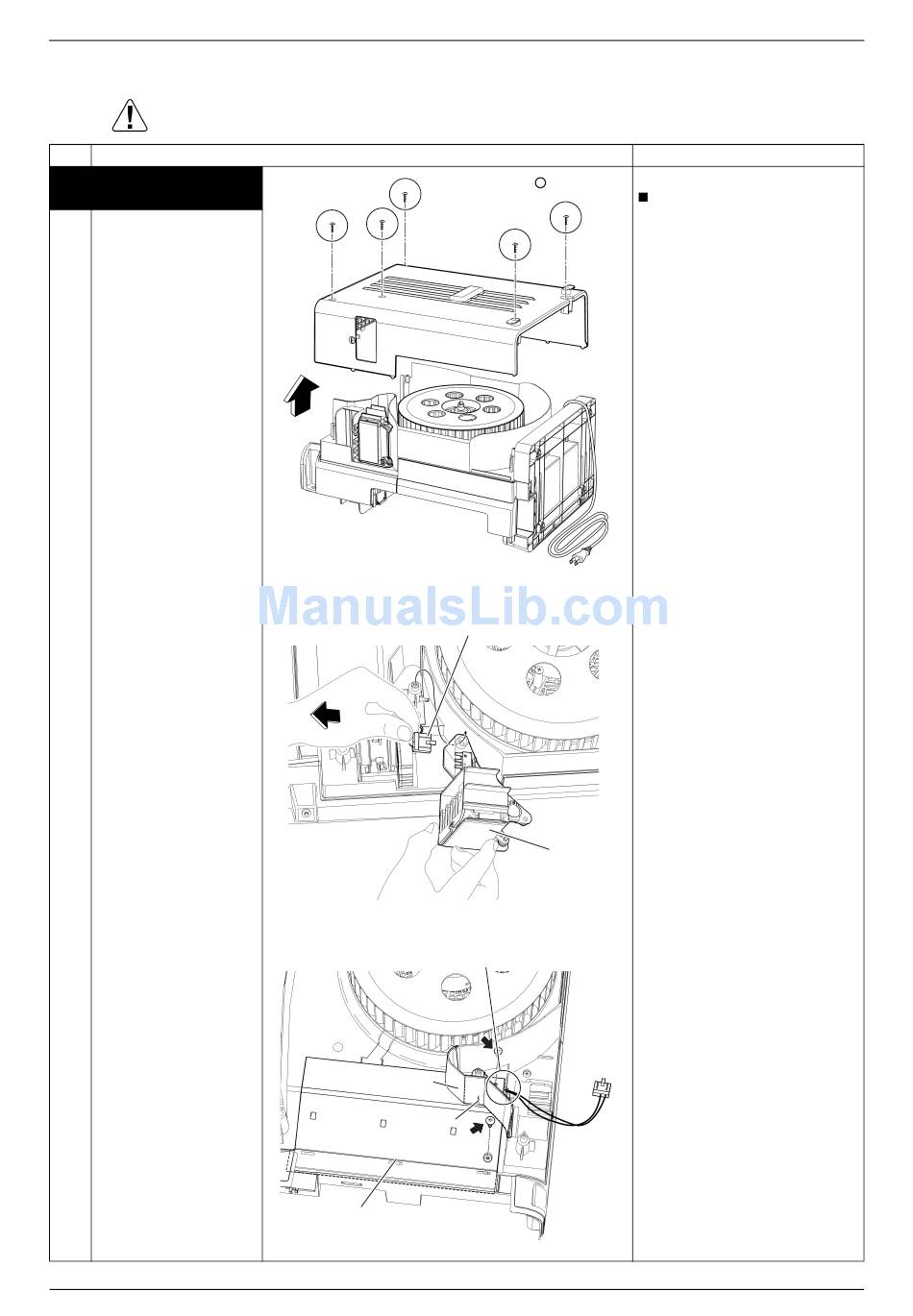

1. Removal of the electric
equipment box cover
Remove the 5 screws
1
of the rear panel.
Disconnect the
2
connector for the limit
switch.
Remove the 2 screws
3
of the electric
equipment box cover.
84
Be sure to wait 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Drip proof plate
Electric equipment
box cover
The screws in
are already
removed
(R9822)
Limit
switch
Holder
(R9823)
Fit the harness to
the groove of the rib
Slit
(R9824)
SiBE81-909
Points
Preparation in advance
Remove the display PCB
and the operation PCB.
Refer to the removal of the
display PCB and the
operation PCB.
★
The electric equipment box
cover has a drip proof plate.
Fit the slit of the plate to the
rib of the cover, and put the
slit into the crack along the
curve.
