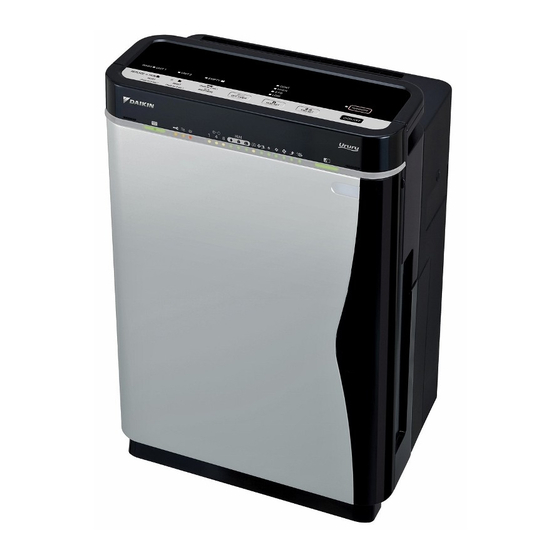

Humidifying air purifi er
Floor Standing Type
Ururu Air Purifi er

OPERATION MANUAL

MODEL
MCK75JVM-K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCK75JVM-K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daikin MCK75JVM-K

Summary of Contents for Daikin MCK75JVM-K

  • Page 1: Operation Manual

    Humidifying air purifi er Floor Standing Type Ururu Air Purifi er OPERATION MANUAL MODEL MCK75JVM-K...
  • Page 2 Features Features The strong decomposition capacity of streamer discharge assuredly removes unpleasant Deodorization odor-causing components in cigarette smoke, formaldehyde, etc. Dust collection A high airfl ow rate nimbly catches pollen, house dust, etc. Humidifi cation The room is quickly humidifi ed by the humidifying with “Vaporization system of high airfl ow rate”. Streamer discharge nimbly decomposes odors and harmful gases by generating fast-moving electrons of high oxidising strength inside the air purifi...

  • Page 3: Table Of Contents

    READ FIRST ■ Safety Precautions .......... 3 ■ Names and Operation of Each Parts ..... 7 ■ Sensitivity Settings of the Dust Sensor ..13 PREPARATIONS BEFORE USE ■ Installation ............. 14 ■ Preparation of Remote Controller ....15 ■ Attach the Filter ..........

  • Page 4: Read First

    READ FIRST Safety Precautions Before use, read these Safety Precautions to ensure proper use. The precautions used in this manual are classifi ed into the following two types. Both contain important safety information, therefore observe them at all times. Improper handling may lead to injury or property Improper handling may lead to serious injury or damage.

  • Page 5: Power Supply

    WARNING • Do not use the unit anywhere there is airborne oil such as machine oil. Airborne oils may lead to cracking, electric shock or ignition. • Do not use the unit anywhere there are abundant oil vapours such as in kitchens, combustible or corrosive gases, or metallic dust. These kinds of environments may lead to fi...
  • Page 6 Safety Precautions CAUTION • Do not use the unit anywhere it is exposed to direct sunlight, rain or wind. Overheating or contact with water may lead to fi re or electric shock. • Do not use the unit anywhere that is hot such as near to heaters. High temperatures may discolour or deform the unit.
  • Page 7 CAUTION • If used where pets are kept, be careful that pets do not urinate on the unit or bite the power supply cord. This may lead to electric shock or fi re. In the event of abuse by pets, stop operation, unplug the power supply cord and contact the service shop.

  • Page 8: Names And Operation Of Each Parts

    Names and Operation of Each Parts Main unit Odor sensor Dust sensor Humidity sensor · Temperature sensor Filter container Holds 6 replacement pleated filters. UNIT2 (Streamer unit) UNIT1 (Plasma ionizer) Ionizing frame Pre-filter (green) Safety guard Removes large dust particles. Deodorizing catalyst unit Absorbs airborne odors and harmful gases using a deodorizing...

  • Page 9: Humidifying Filter

    Operating panel Handle Side panel Front indicator Pocket lock lamps Prevents streamer pocket from opening inadvertently. Use a coin to open. Unlock How to use the pocket lock Coin Lock Unlock Lock Pocket lock To lock, turn to where the meet.
  • Page 10 Names and Operation of Each Parts Operating panel Brightness adjustment Use to set lamp brightness for sleeping or as you prefer. Each time the button is pressed, the brightness of the operating panel lamps and front indicator lamps change as follows. Page 13.
  • Page 11 ATTENTION OFF TIMER button ● The operating panel is covered in a protective sheet to protect against scratching. Each time pressing this button, the OFF Peel the sheet off before use. time changes as follows. ● If the front panel is opened during operation, the unit stops for safety reasons. If the unit malfunctions during operation <Front indicator lamps>...
  • Page 12 Names and Operation of Each Parts Front indicator lamps The readings of room hygrometers and the unit’s humidity indicator lamp may differ. • This is because air currents cause temperature and humidity drifts even in the same room. Consider the humidity indicator lamp as just a reference reading. Child proof lock lamp Regeneration lamp •...
  • Page 13 Humidity indicator lamp (For reference only) This lamp indicates the room humidity detected by humidity sensor. :Humidity: 40% or less :Humidity: Approx. 50% :Humidity: 60% or more In case running the unit just to air purifying operation, the lamp also indicates the humidity level. Odor sensor lamp Odor sensor detects the changes in airborne odors.

  • Page 14: Sensitivity Settings Of The Dust Sensor

    Sensitivity Settings of the Dust Sensor If dust sensor sensitivity is not how you want it, change the setting. Operating panel Press for 10 seconds. While holding down , press • After a short beep sound is emitted and the airfl ow (“ ”...

  • Page 15: Preparations Before Use

    PREPARATIONS BEFORE USE Installation How to install Set the unit in a preferred location. Observe the following installation clearances to ensure unit performance. Min. 100cm from ceilings Airflow Min. 10cm from walls Min. 50cm from walls Min. 50cm from walls NOTE ●...

  • Page 16: Preparation Of Remote Controller

    Preparation of Remote Controller Remote controller setup Remote controller preparations • Battery is already set in the remote controller. To use the remote controller, pulling out the clear sheet from the battery cover. Receiver Using the remote controller • Point the transmitter of the remote controller towards the receiver of the main unit. If an obstruction to the signal, such as a curtain, exists, the remote controller will not operate.

  • Page 17: Attach The Filter

    CAUTION Attach the Filter • Do the following before plugging in the power supply cord. Attach the pleated fi lter Remove the deodorizing catalyst unit. • Holding the deodorizing catalyst unit by the handle, pull the deodorizing catalyst unit upwards and out of the unit. Be sure to attach the pleated fi...

  • Page 18: Water Tank Preparations

    Water Tank Preparations Water tank preparations Air purifying operation can be operated even without water in the tank. Open the cap on the water tank. Add water to the tank and close the cap. Use only tap water. • Add water somewhere that can be wet if spilled. •...
  • Page 19 After attaching the fi lter Restore the front panel. Restore the deodorizing catalyst unit. • Fit the tabs (2 locations) at the bottom of the panel into the • Holding the deodorizing catalyst unit by the handle, fi t the grooves at the bottom of the main unit, and close the projections on the unit into the grooves (4 locations) at the panel.

  • Page 20: How To Operate

    HOW TO OPERATE Air Purifying Operation Socket Plug the power supply cord NOTE Power plug into an electrical socket. ● Do not insert or remove the power plug to turn the unit on/off. Abusive handling may lead to electric shock or fi re because of overheating. Humidification lamp Press •...

  • Page 21: Humidify And Air Purifying Operations

    Humidify and Air Purifying Operations Air purifying operation is in active while humidifying operation. (Humidifi cation cannot run by itself.) ● Do not move the unit while it is running. Displacements may cause water leaks, damage or malfunctions. Humidification lamp Press Press to light the humidifi...

  • Page 22: How To Operate With Remote Controller

    How to Operate with Remote Controller How to operate with remote controller 1. ON/OFF button 2. Auto fan button 3. Fan setting button 4. Turbo button 5. Anti-pollen button 6. Humidify ON/OFF button 7. Humidify setting button 8. OFF TIMER button 9.
  • Page 23 To switch the humidifying operation ON/OFF Press “ ”. • Each time it is pressed, the humidifying operation ON/OFF will switch. • When the humidifying operation ON/OFF is switched humidity indicator lamp indicate temporarily as shown below. • In case the humidifying operation is turned ON: the humidity indicator lamp will be changed and indicate the setting. •...

  • Page 24: How To Use The Recyclable Deodorizing Cartridge

    How to Use the Recyclable Deodorizing Cartridge The recyclable deodorizing cartridge can be removed from the air purifi er and used to deodorize remote locations. Deodorizing capacity can be regenerated with the streamer pocket so as to use the cartridge time and time again. Uses The deodorizing cartridge can be used in the below places.
  • Page 25 After about 2 months (reference only), regenerate the recyclable deodorizing cartridge inside How to regenerate the recyclable the streamer pocket. deodorizing cartridge Suffi cient deodorizing effect may not be obtained if the cartridge is not regenerated periodically. Recyclable deodorizing cartridge regeneration is started and stopped by opening and closing the streamer pocket.

  • Page 26: Quick Reference Table Of Maintenance

    CARE and CLEANING Quick Reference Table WARNING of Maintenance • Before performing maintenance, stop the unit and unplug the power supply cord. If the check lamp lights, check the location that requires attention on the operating panel. • Any of the humidifying filter lamp( ), Air-purifying filter lamp( ), UNIT1/2 lamps, or water supply lamp( ) will light or...
  • Page 27 • Air inlets for Dust/Odor sensors and Temperature/ Humidity sensors Page 27. UNIT2 (Streamer unit) Page 33, 34. Deodorizing catalyst unit Page 28. Pleated filter (front: white, back: blue) Page 30, 31. Front panel Page 27. UNIT1 (Plasma ionizer) Page 33, 34. Pre-filter (green) Page 29.

  • Page 28: Care & Cleaning

    Care & Cleaning Front panel cleaning Wipe • Wipe off dirt with a piece of cloth or tissue moistened with water. • For stubborn dirt, wipe with a cloth moistened with a neutral liquid detergent. CAUTION • Do not use hard bristle brushes, etc. Tools of the sort may scratch the front panel.
  • Page 29 Recyclable deodorizing cartridge Deodorizing catalyst unit Streamer pocket Recyclable deodorizing cartridge cleaning Cannot be washed with detergent Vacuum cleaner Soak, drain and dry • If dust has accumulated, suck it up with a vacuum cleaner. • If bothered by dirt on the cartridge, soak the cartridge in warm or plain water for about 10 minutes, drain thoroughly and dry in a well- ventilated shade for about 1 day.
  • Page 30 Care & Cleaning Pre-fi lter cleaning (About once every 2 weeks) Vacuum cleaner Rinse with water Remove the front panel. Restore the pre-fi lter. • Push the 2 projections (left and right) inwards, and pull the • Align the tabs (4 locations) on the left and right of the front panel upwards and remove.
  • Page 31 Pleated fi lter replacement Cannot be rinsed in water WARNING The pleated fi lter does not need • Before performing maintenance, stop the replacing until the Air-purifying fi lter unit and unplug the power supply cord. lamp lights or fl ashes. Replace If the Air-purifying filter lamp lights or flashes Remove the front panel.
  • Page 32 Care & Cleaning Restore the deodorizing catalyst unit. Restore the front panel. Page 29. • Holding the deodorizing catalyst unit by the handle, fi t the projections on the unit into the grooves (4 locations) at the bottom of the main unit and press the deodorizing catalyst unit into the main unit.
  • Page 33 UNIT1 (Plasma ionizer) removing and attaching CAUTION • Wear rubber gloves to remove and attach the opposite pole plates. Hands can be cut on the opposite pole plates and ionized wires. Remove Attach Remove the front panel. Attach the opposing pole plates. Page 29.
  • Page 34 Care & Cleaning Cleaning UNIT1 (plasma ionizer) and UNIT2 (streamer unit) CAUTION • Before performing maintenance, stop the unit and unplug the power supply cord. • Wear rubber gloves to when wiping or rubbing the units. Soak, drain and dry If UNIT lamps light Hands can be cut on the opposite pole plates and ionized wires.
  • Page 35 UNIT1 UNIT2 CAUTION (Plasma ionizer) (Streamer unit) There are ionized wires to the rear of the opposite pole plates. Be (1) Ionizing frame careful not to snap these wires when removing and attaching the units. • If the unit is run with broken ionized wires, the “UNIT1” lamp lights.
  • Page 36 Care & Cleaning Humidifying fi lter cleaning (About once every 1 week) Soak, drain and dry WARNING How quickly the humidifying fi lter becomes dirty depends on the environment of use. If odors are emitted from the air outlet or if humidifi cation capacity is low (the •...
  • Page 37 Attach the humidifying Restore the humidifying tray. filter and waterwheel. Waterwheel Press inward until • Reattach the humidifying fi lter and waterwheel to hearing clicking the humidifying tray, and push the humidifying tray sound. back into the unit until hearing clicking sound. Humidifi...
  • Page 38 Care & Cleaning Humidifying fi lter replacement (About every 2 years [2 seasons]) Using the unit without replacing the WARNING humidifying fi lter causes mildew, foul odors and humidifi cation loss. • Before performing maintenance, stop the unit and unplug the power supply cord. Replace If the humidifying filter lamp lights or flashes Remove the front panel and water tank.
  • Page 39 Options ATTENTION ● For replacement pleated fi lters, humidifying fi lters or recyclable deodorizing Part Model cartridges contact the service shop. Pleated fi lter (7) KAC998A4E ● If the unit is used with dirty parts Humidifying fi lter (Without frame) (1) KNME998A4E •...

  • Page 40: Troubleshooting

    TROUBLESHOOTING Frequently Asked Questions Questions & Answers Question: Question: The dust sensor does not change from the Does the deodorizing effect of the recyclable orange or red colour. deodorizing cartridge disappear entirely in 2 months time? Answer: This is due to dusts built up in the dust sensor. Answer: Suck up dust accumulated in the dust sensor hole with a The effect should not completely disappear in 2 months time.

  • Page 41: If These Lamps Light Or Flash

    If These Lamps Light or Flash Front indicator lamps If a long beep sound repeat 3 times is emitted and the dust and odor lamps flash (red) at the same time The lamps will blink if the unit is leaned in excess or toppled. Set the unit on a flat floor and press the ON/OFF button.

  • Page 42: Troubleshooting

    The following situations have logical explanations. Troubleshooting Before requesting servicing, make the following checks. If this happens Check Humidity in rooms facing north or rooms near plumbing fi xtures such as bathrooms is normally The current humidity remains high. high because moisture readily accumulates. The readings of the room hygrometer and This is because air currents cause temperature and humidity drifts even in the same room.

  • Page 43: During Operation

    If this happens Check How to resolve Crackling, buzzing, and Securely set it. Page 18. Is the UNIT1 set securely? fi zzes sounds are audible during operation. Has dust accumulated on the ionized wires of the Page 33, 34. Clean it. ionizing frame? A hissing sound heard from UNIT2 during operation.
  • Page 44 The following situations have logical explanations. Troubleshooting Before requesting servicing, make the following checks. If this happens Check How to resolve The unit does not humidify Press if the lamp is out. Is the humidifi er ON/OFF lamp is lit? despite having added water to the water tank.
  • Page 45 MEMO...
  • Page 46 Two-dimensional bar code is a code for manufacturing. 3P234570-1 M08B113 (0811) HT...
