Printronix P6000L User's Reference Manual page 222

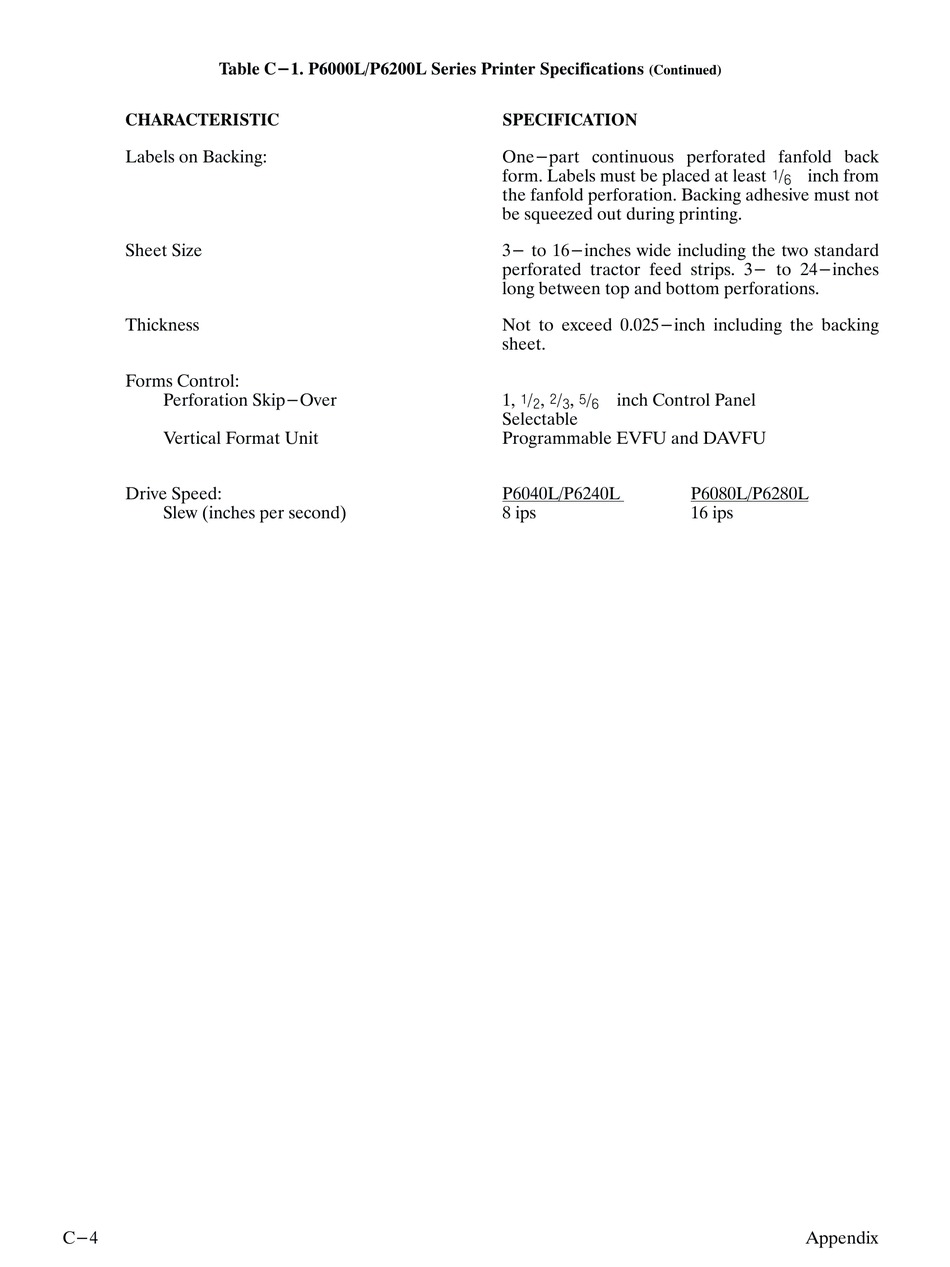

Table C-1. P6000L/P6200L Series Printer Specifications
CHARACTERISTIC
Labels on Backing:
Sheet Size
Thickness
Forms Control:
Perforation Skip-Over
Vertical Format Unit
Drive Speed:
Slew (inches per second)
C-4
(Continued)
SPECIFICATION
One-part continuous perforated fanfold back
form. Labels must be placed at least !/6 inch from
the fanfold perforation. Backing adhesive must not
be squeezed out during printing.
3- to 16-inches wide including the two standard
perforated tractor feed strips. 3- to 24-inches
long between top and bottom perforations.
Not to exceed 0.025-inch including the backing
sheet.
1, !/2, @/3, %/6 inch Control Panel
Selectable
Programmable EVFU and DAVFU
P6040L/P6240L
8 ips
P6080L/P6280L
16 ips
Appendix
