KUDO
MULTI-MODE WST
Rigging Procedures
VERSION 1.0
8. On each KUDO
®
enclosure, pre-select the inter-enclosure angle based on SOUNDVISION simulation results.
9. For each KJACK:
a. Align the U-bracket with the KBUMP holes (threaded insert oriented downwards).
b. Slightly screw the rod.
KUDO_RM_ML_1.0
®
SYSTEM

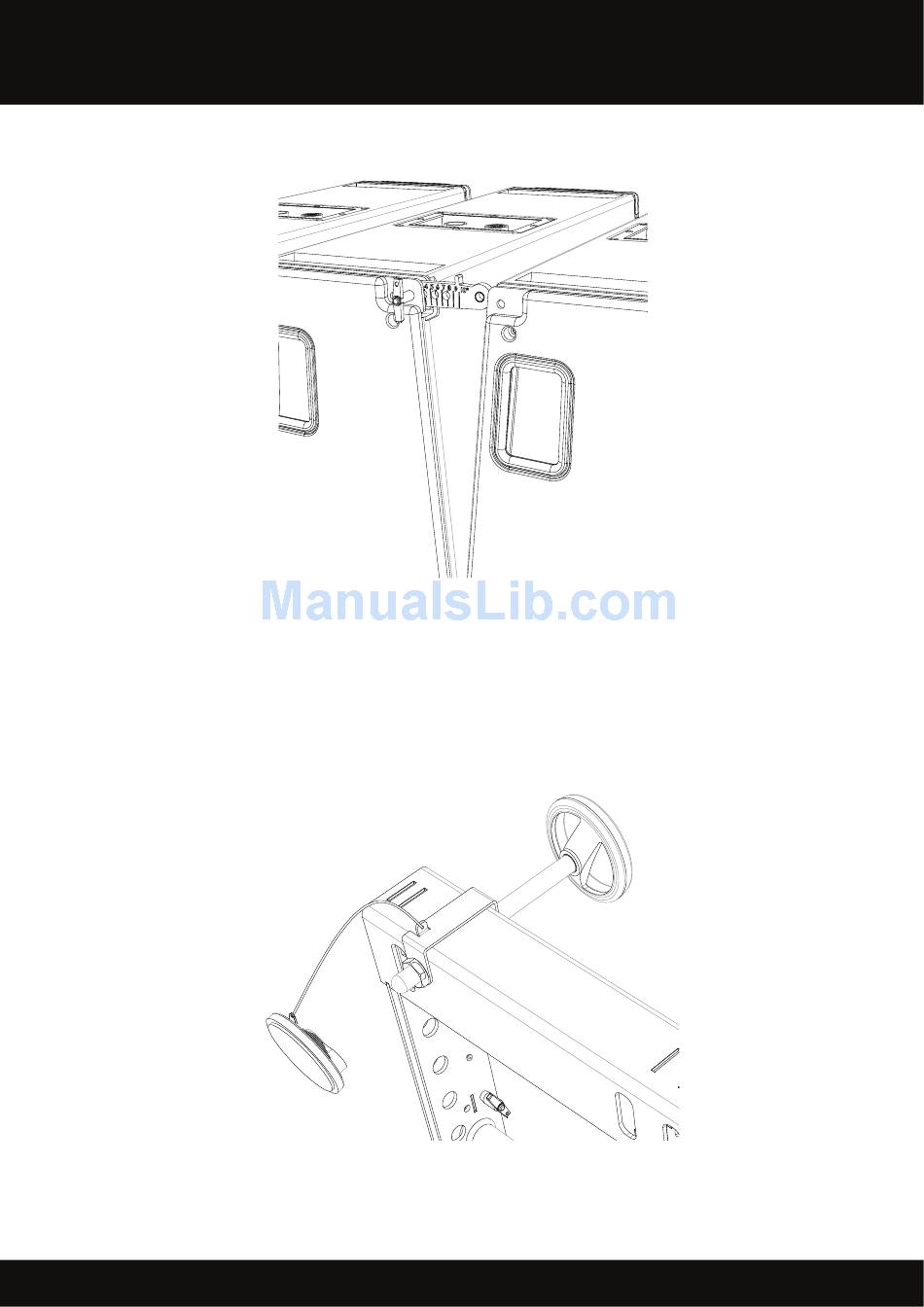

Figure 25: Pre-selecting inter-enclosure angles
Figure 26: Installing KJACK onto KBUMP
w w w . l - a c o u s t i c s . c o m
20 en
