Klift Rigging Accessory - L-Acoustics kudo multi-mode wst Rigging Manual

5.2

KLIFT rigging accessory

The L-ACOUSTICS ® KLIFT rigging accessory has been exclusively designed to fly the L-ACOUSTICS
enclosures as a 10°-constant curvature, horizontal line source array.
The KLIFT is supplied with one 18-shackle (Figure 5) that can support up to 1250 kg / 2756 lb. with an Ultimate
Strength Safety Factor of 5:1. Twelve pick up points are available on the KLIFT to set the site angle. Please refer to
appendix 9.2 for a detailed description of the KLIFT available configurations.
One or more KLIFT accessories can fly horizontal arrays composed of a minimum of 2 KUDO
shows six examples of single or dual suspension point arrays: it can be seen that only symmetrical configurations are
available in order to properly balance the array's center of gravity.
A single KLIFT can support a maximum amount of weight of 522 kg / 1150 lb. and can therefore
!
support up to 6 KUDO
Any configuration containing one or more KLIFT accessories should be prior modeled using
SOUNDVISION software.
Always refer to the mechanical data and warning indications provided in SOUNDVISION to verify
WARNING
that safe system setup safety limits apply (see section ''Mechanical Data'' in the SOUNDVISION
software).
Figure 6
KUDO_RM_ML_1.0

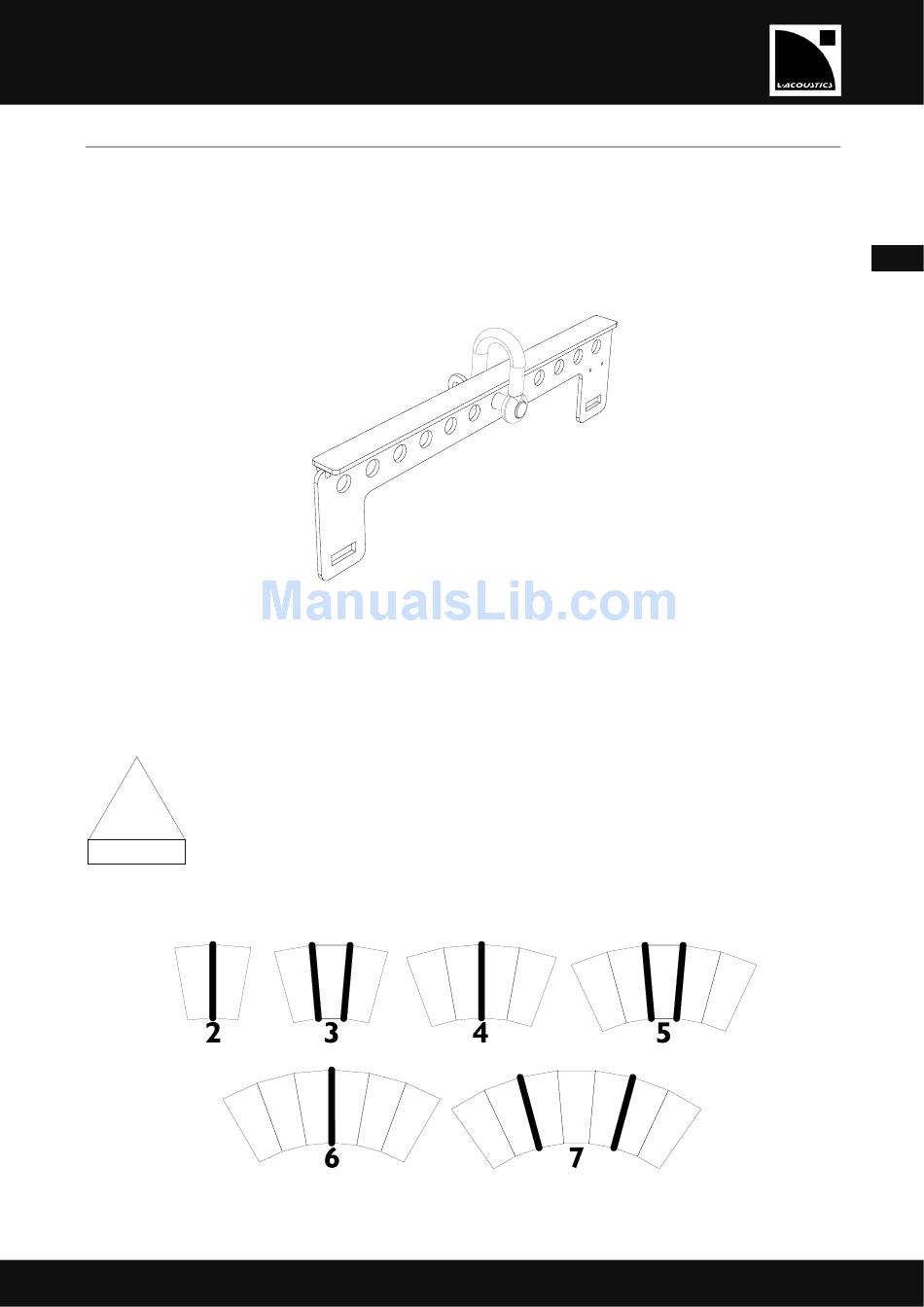

Figure 5: KLIFT rigging accessory with shackle
® enclosures without any additional load.
®
: Two to seven-KUDO horizontal arrays with KLIFT accessories
