5 KUDO RIGGING COMPONENTS
®
5.1

KBUMP rigging structure and KJACK rigging accessories

®
The L-ACOUSTICS KBUMP rigging structure has been exclusively designed to fly or stack the L-ACOUSTICS
KUDO ® enclosures as a variable-curvature, vertical line source array.
The KBUMP is supplied with two 22-shackles (Figure 3) that can support up to 2000 kg / 4409 lb. each with an Ultimate
Strength Safety Factor of 5:1. Thirteen pick up points are available on the central spreader bar section and side bars
allowing for a wide variety of hoist set up. Please refer to appendix 9.1 for a detailed description of the KBUMP rigging
options examples.
!
KBUMP can fly a maximum amount of weight of 1830 kg / 4034 lb.
Therefore, a maximum of 21 KUDO
structure without any additional load.
Always refer to the mechanical data and warning indications provided in SOUNDVISION to verify
that safe system setup safety limits apply (see section ''Mechanical Data'' in the SOUNDVISION
WARNING
software).
KUDO_RM_ML_1.0

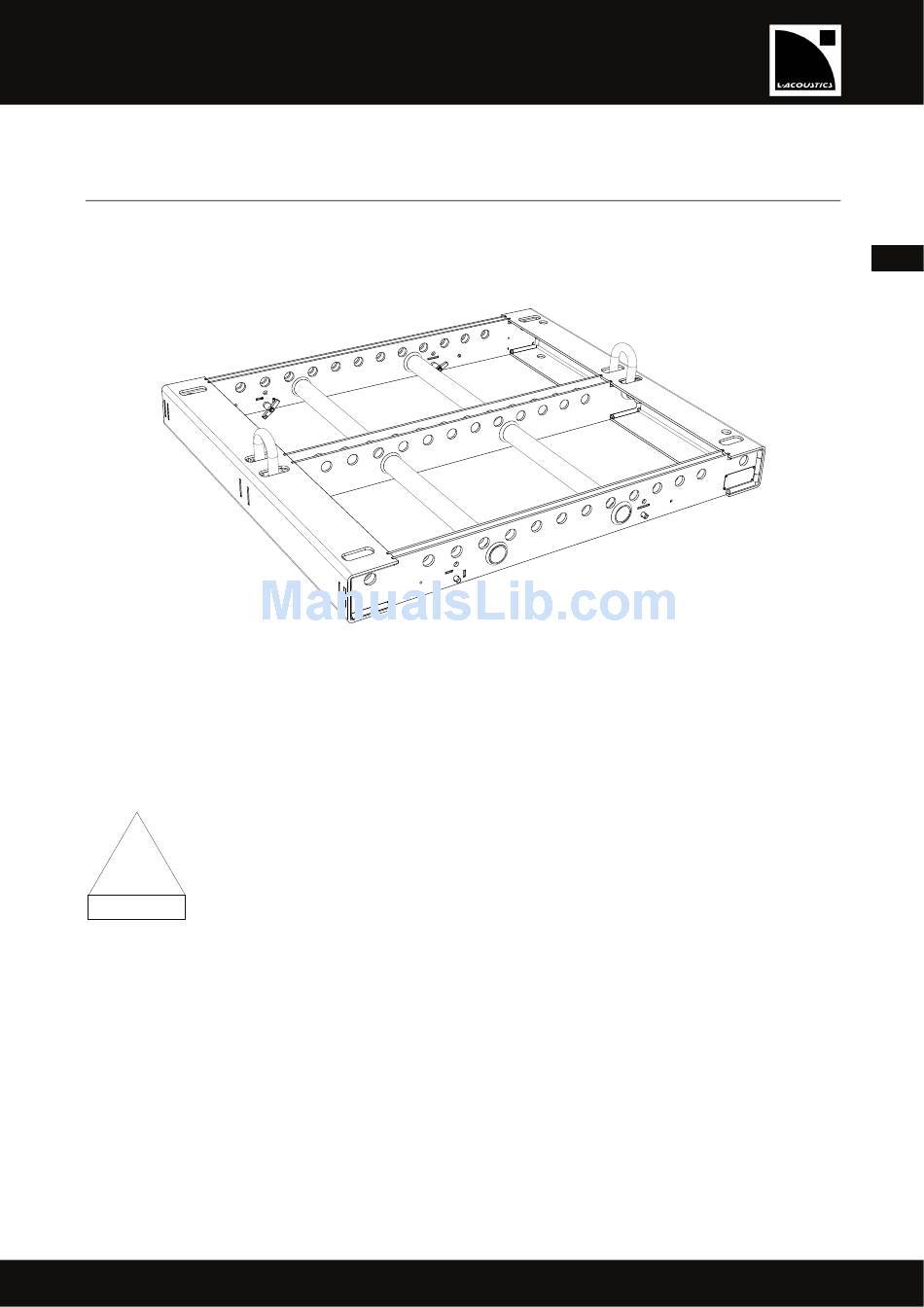

Figure 3: KBUMP with two shackles
® enclosures can be flown underneath the KBUMP rigging
