8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to sepa-
rate
the aileron from the wing panel. Use caution
Note : Work the aileron up and down sev-
eral times to "work in" the hinges
and check for proper movement.

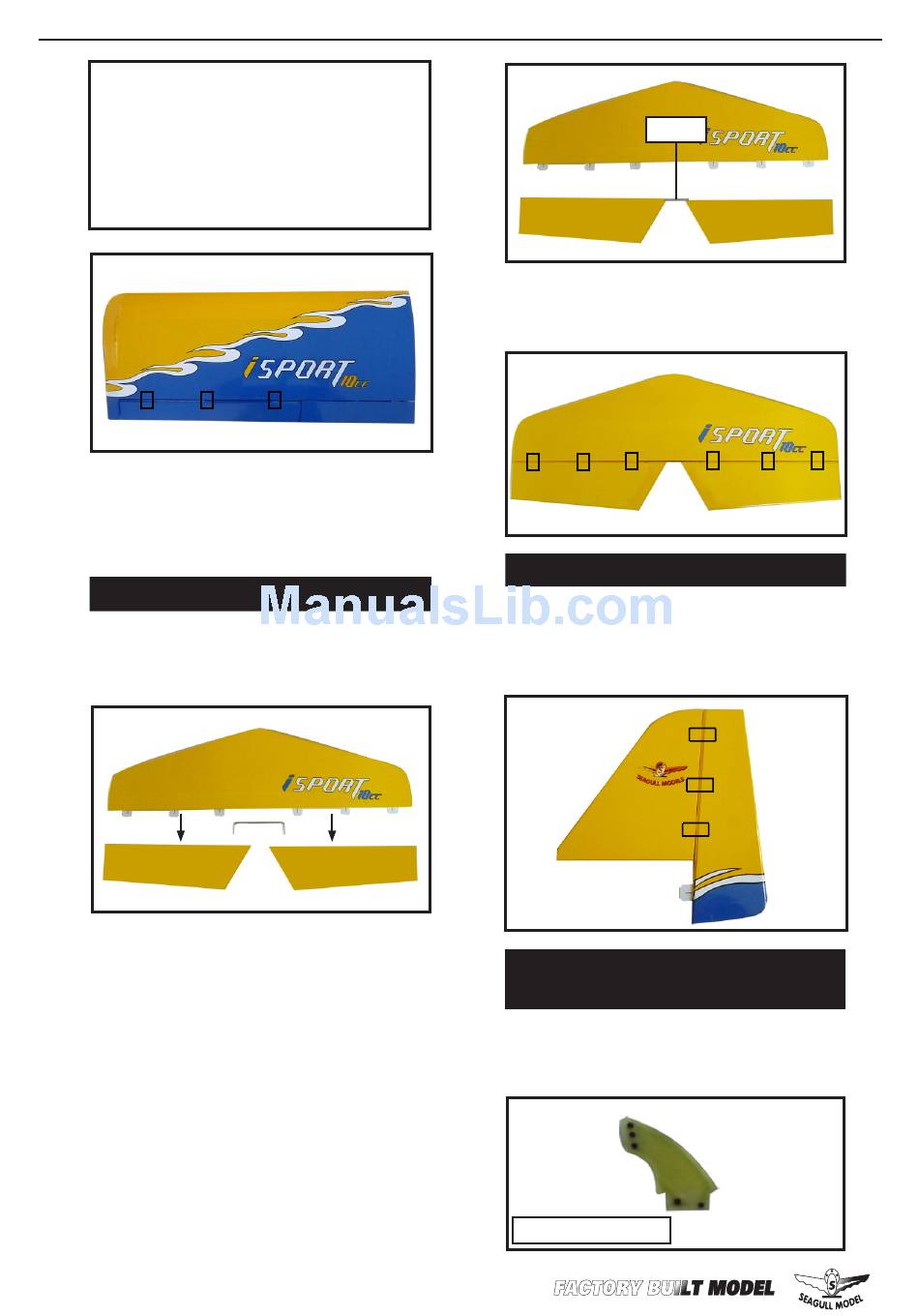

HINGING THE ELEVATORS.

1) Locate the item for this sectiom of the
manual.
2) Carefully remove the elevator from
one of the horizontal stabilizer panels.
Note the position of the hinges.
3) Remove each hinge from the hori-
zontal stabilizer panel and elevator
and place a T-pin in the center of each
hinge. Slide each hinge into the eleva-
tor until the T-pi n is snug against the
elevator. This will help ensure an equal
amount of hinge is on either side of the
hinge line when the elevator is mount-
ed to the horizontal stabilizer panel.
6
Instruction Manual.
Epoxy.
Glue the hinge hinges in place using the
same techniques used to hing the ailerons.

HINGING THE RUDDER.

Glue the rudder hinges in place using
the same techniques used to hinge the ai-
lerons.
INSTALL THE AILERONS CONTROL
HORN.
Locate the hardware necessary to install
the control horns for the ailerons.
Aileron control horn.
