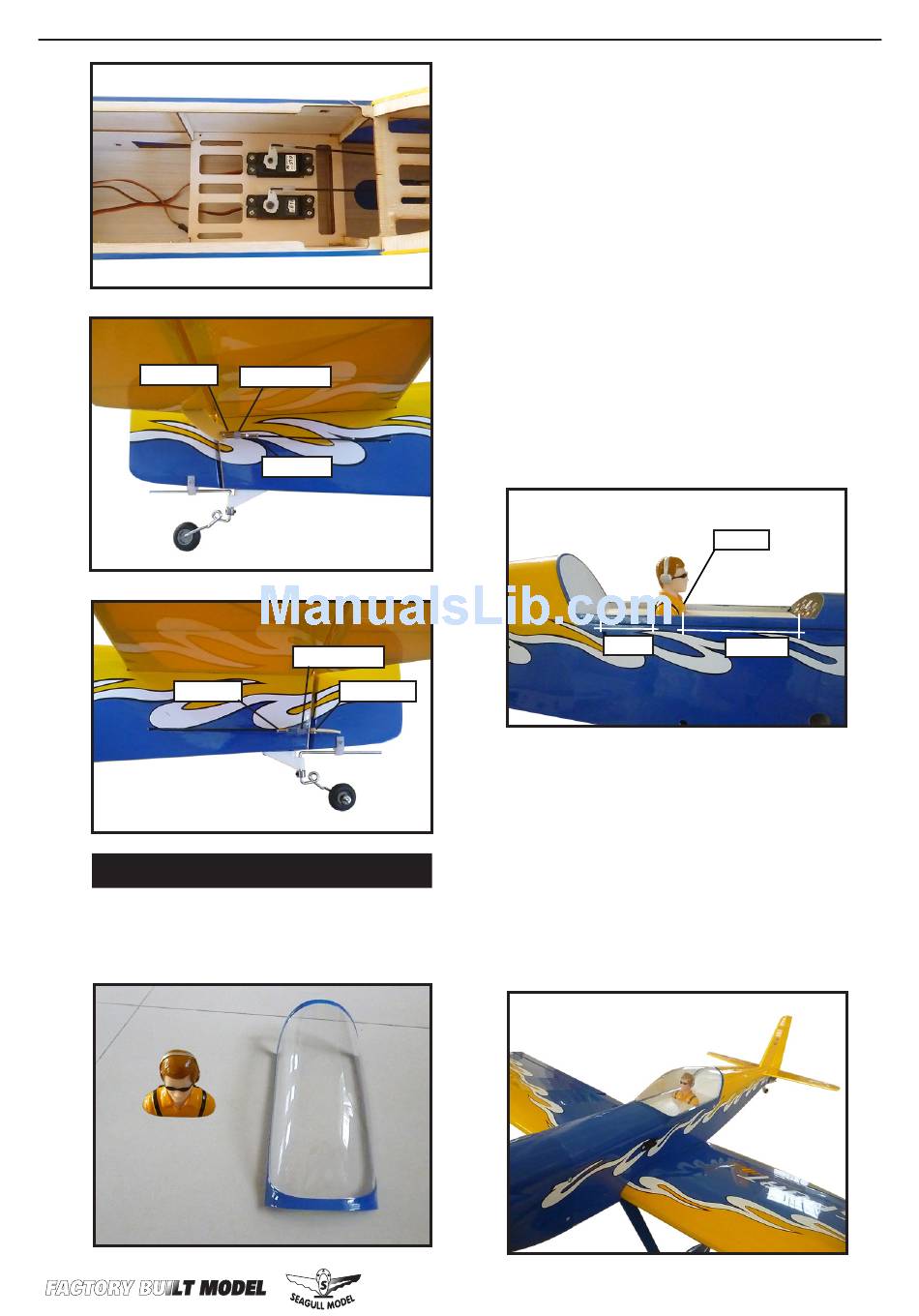

INSTALLATION PILOT .
1) Locate items necessary to install pilot,
.
cockpit panel, and canopy.
WWW.SEAGULLMODELS.COM
Fuel Tubing.
M2 clevis.
2) A scale pilot is included with this ARF.
The Seagull Pilot included fitting well to
the cockpit. (or you can order others scale
pilot figures made by Seagull factory.
They are available at Seagull distributors.)
If you are going to install a pilot figure,
please use a sanding bar to sand the base
of the figure so that it is flat.
3) Position the pilot figure on the canopy
floor as show. Locate the oval shaped on
the canopy floor and remove the cover-
ing. Use epoxy to glue this into the base
of the pilot figure and glue the cockpit
panel in place with C/A glue, please see
pictures as shown.
70mm
4) Position the canopy onto the fuselage.
Trace around the canopy and onto the fu-
selage using a felt-tipped pen.
- Apply a bead of canopy glue around the
inside edge of the canopy. Position the
canopy onto the hatch. Use tape to hold
the canopy secure until the glue fully
cures.
Epoxy.
125mm
