Seagull Models ISPORTS 10cc Assembly Manual page 24

ISPORT 10-15cc

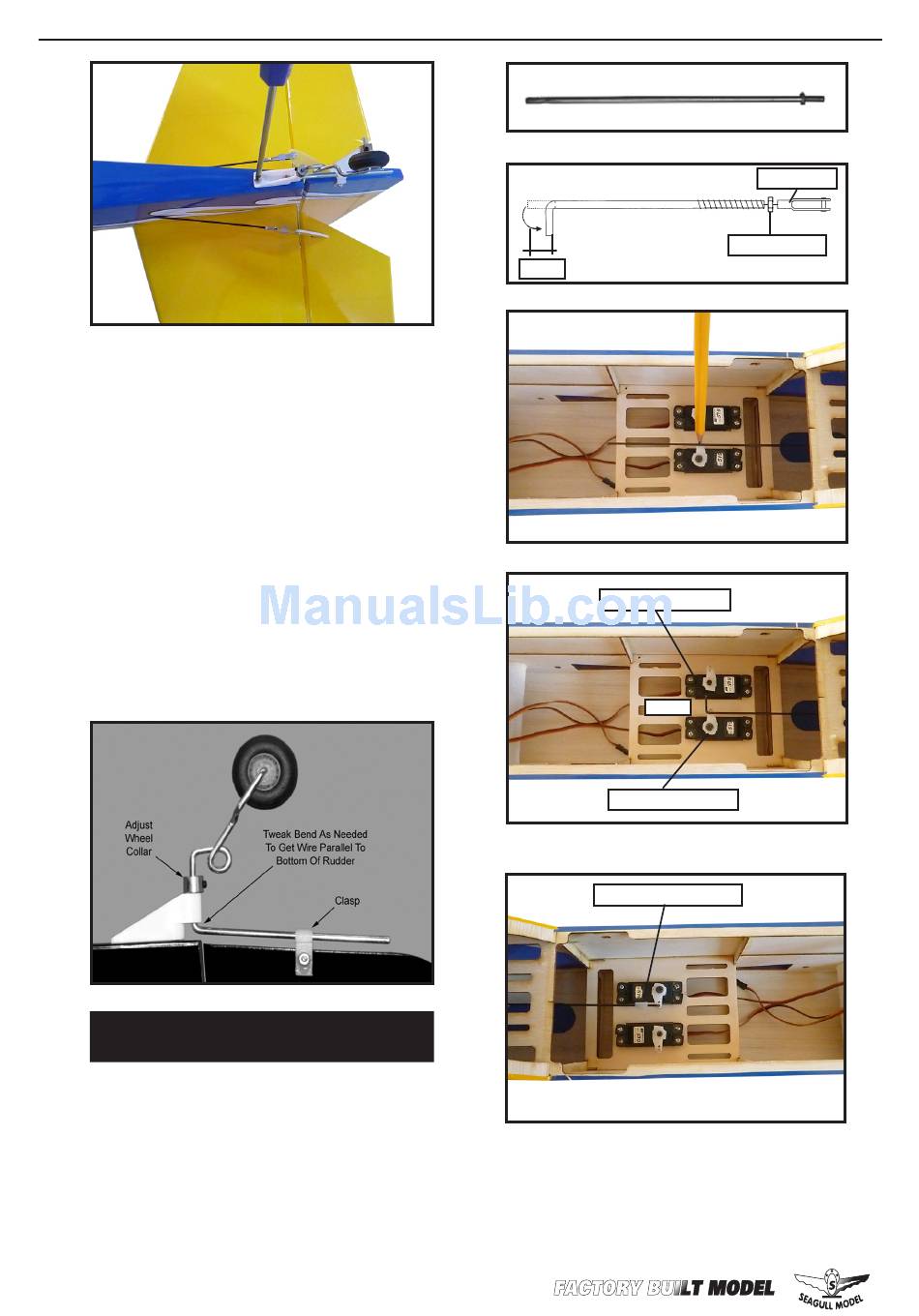

2) Adjust the wheel collar shown to set the
height of the tailwheel wire. Then check
to see if the long steering leg of the tail-
wheel wire is parallel to the bottom of the
rudder. The wire may need to be tweaked
slightly to make it parallel.
3) Slide the Nylon Rudder Steering Clasp
onto the bottom of the rudder and onto
the tailwheel wire at the same time. Lo-
cate the clasp at the halfway point on the
wire, and then drill a hole for the M2 x
15mm Bolt. Insert the bolt through the
hole and tighten down the M2 Hex nut to
clamp the bracket in place.
ELEVATOR - RUDDER PUSHROD
HORN INSTALLATION.
1) Install the elevator control horn using
the same method as with the aileron con-
trol horns.
2) Position the elevator control horn on
the both side of elevator.
24
Instruction Manual.
8mm
Elevator pushrod.
8mm
Rudder pushrod.
Nylon Snap keeper.
M2 clevis.
M2 lock nut.
