ISPORT 10-15cc

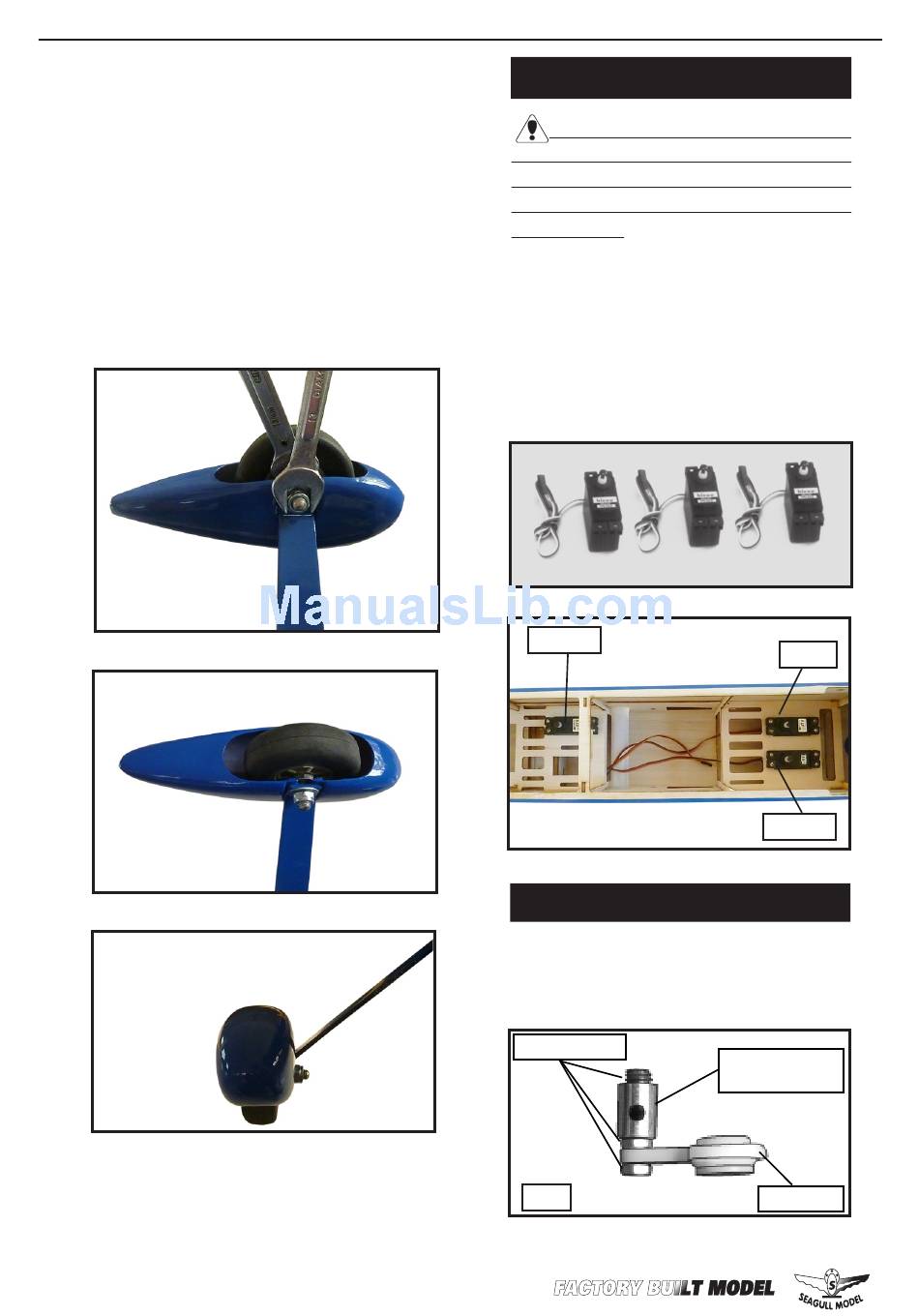

6) Slide the threaded end of the axle
through the hole in the bottom of the
landing gear leg. Use a washer and lock-
nut to tighten the axle to the landing gear.
Make sure to use threadlock on the nut so
it won't vibrate loose in flight as shown.
7) Tighten the setcrews using a hex
wrench to secure the collars on the axle
over the flat spot to retain the wheel as
shown.
Repeat steps as above to attach remain-
ing wheel pants to the landing gear.
12
Instruction Manual.

INSTALLING THE FUSELAGE SERVOS.

Because the size of servos differ, you
may need to adjust the size of the precut
opening in the mount. The notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the
servo into the aileron servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
Throttle.
THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Loctite secure.
1PCS.
.
Rudder.
Elevator.
Adjustable servo
connector.
Servo arm.
