Elevator - Rudder Servo Installation; Horizontal Stabilizer - Seagull Models 540 Assembly Manual

EDGE 540.

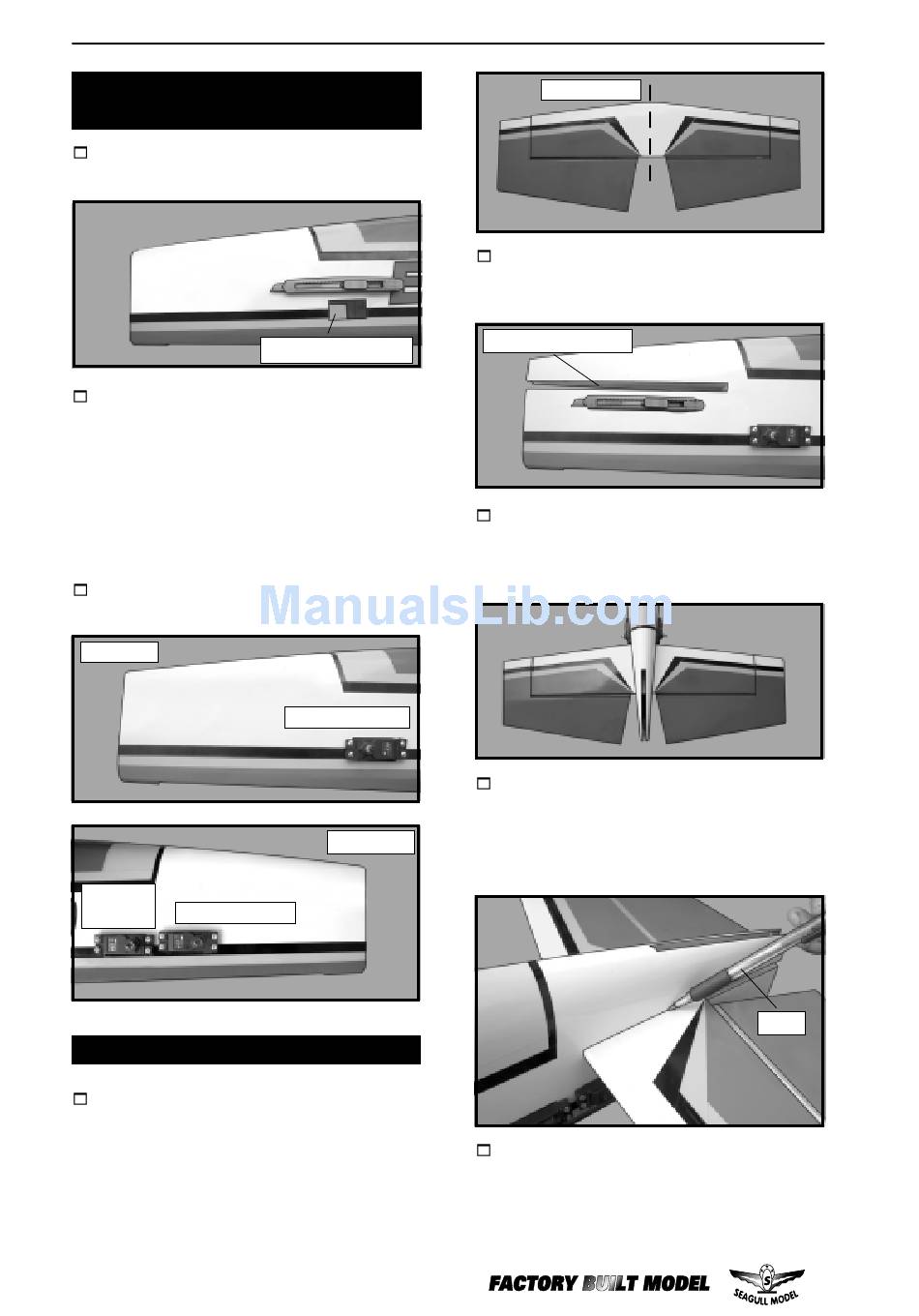

ELEVATOR - RUDDER SERVO
INSTALLATION.
Locate and cut out the covering film from
1)
the servo holes in both sides of fuselage.
2) Install the rubber grommets and brass
collets onto the elevator and rudder servo. Test
fit the servo into the aileron servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
3) Secure the servos with the screws pro-
vided with your radio system.
Left side.
Elevator
Rudder servo.
servo.

HORIZONTAL STABILIZER.

1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the trail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
16
Remove covering.
Elevator servo.
Right side.
Instruction Manual.
Center line.
2) Using a modeling knife, carefully re-
move the covering at mounting slot of horizon-
tal stabilizer ( both side of fuselage).
Remove covering.
3) Slide the stabilizer into place in the pre-
cut slot in the rear of the fuselage. The stabi-
lizer should be pushed firmly against the front
of the slot.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
5) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a model-
ing knife.
Pen.
