Evaluation Board User Guide
EVALUATION BOARD SOFTWARE QUICK START PROCEDURES
The control software and USB drivers for
8EBZ1
accompany the
EVAL-ADF4360-8EBZ1
To install the software, use the following steps:
1.
Open ADF4360_setup.msi.
2.
The install wizard guides you through the installation
process. The software is installed in a default directory called
C:/Program Files/Analog Devices/ADF4360.
The software requires Microsoft's .NET Framework Version 3.5
or later to be installed on your machine. The installer automati-
cally downloads the framework from the Microsoft website if you
do not have this installed. If you do not have an Internet connec-
tion or have a slow connection on the PC, you can install the
.NET framework directly from the CD. Do this by double-clicking
dotnetfx.exe. Once installed, run ADF4360_Setup.msi again.
WINDOWS XP OS
After you have installed the software, install the USB drivers.
To do so, use the following steps:
1.
Plug a USB cable into the USB connector on the evaluation
board. The Found New Hardware box opens. See Figure 5.
2.
Choose Install from a list or specified location
(Advanced).

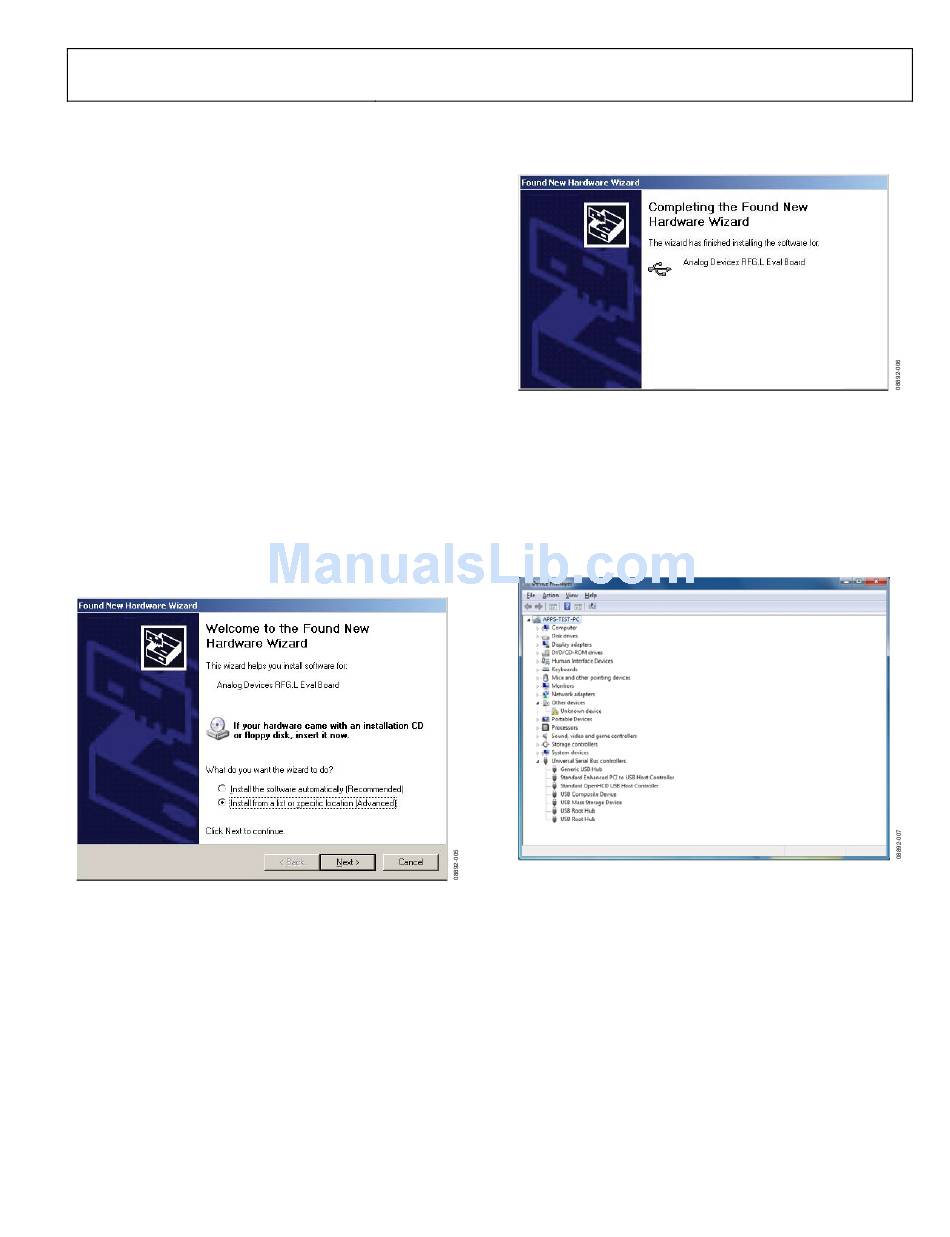

Figure 5. New Hardware Wizard
3.
Click Continue Anyway when asked about Windows Logo
testing.
EVAL-ADF4360-
on a CD.
www.BDTIC.com/ADI
Rev. A | Page 5 of 16
If the installation is successful, the message in Figure 6 appears.
Figure 6. Successful Installation
WINDOWS VISTA OS AND WINDOWS 7 (32-BIT) OS
For Windows Vista or Windows 7 (32-bit), you must manually
install the drivers. To do so, use the following steps:
1.
Find the new unknown device (the evaluation board)
in Device Manager and double-click it to open the
properties. The device should be Unknown device,
under Other devices (see Figure 7).
Figure 7. Device Manager
UG-105
