UG-105
2. Click Update Driver in the properties window (see
Figure 8).

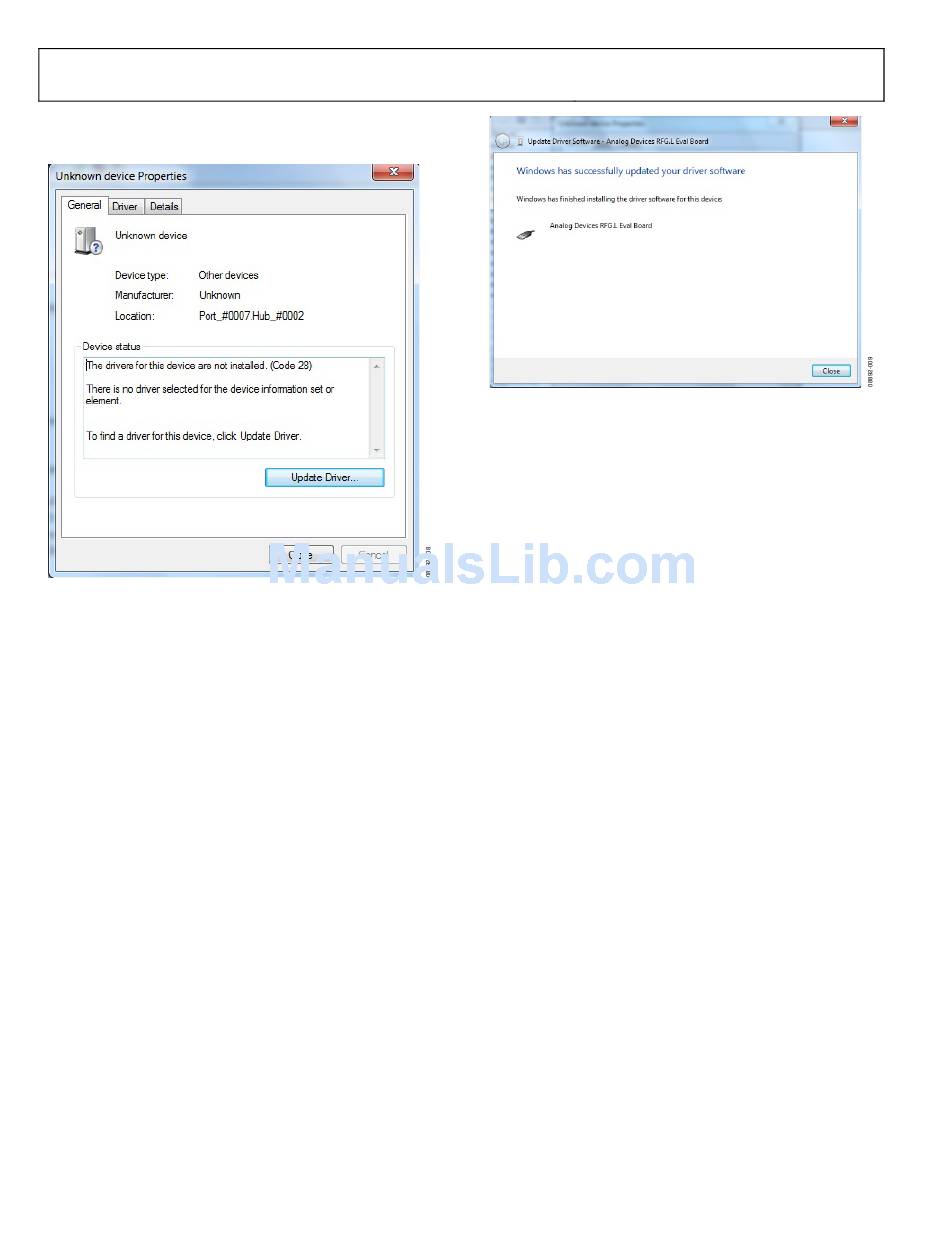

Figure 8. Unknown Device Properties
3. On the Update Driver Software dialog box, choose
Browse my computer for driver software.
4. Browse to C:\Program Files\Analog Devices\ADF4360.
5. Click OK or Next.
6. If prompted by Windows security, choose Install this
driver software anyway.
7. If the installation is successful, the message in Figure 9
appears.
www.BDTIC.com/ADI
Rev. A | Page 6 of 16
Evaluation Board User Guide
Figure 9. Successful Installation

WINDOWS 7 (64-BIT) OS

Windows 7 64-bit uses a different driver than 32-bit systems. To
install this driver:
1. Disconnect the USB evaluation board.
2. Open ADF4360_setup.msi.
3. The install wizard guides you through the installation
process. The software is installed in a default directory called
C:/Program Files/Analog Devices/ADF4360.
4. Connect your USB evaluation board. The driver should be
found automatically.
Note that installing this driver package disables older versions
of Analog Devices PLL software; therefore, only install if needed.
