EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

INSTALLING THE ACE SOFTWARE AND
ADMV4640 PLUGINS AND DRIVERS
The EVAL-ADMV4640Z software uses the Analog Devices, Inc.,
ACE software. Ensure that the
setting up or using the EVAL-ADMV4640Z. For instructions on how
to install and use the ACE software, go to www.analog.com/ACE.
If the ACE software has already been installed on the PC, en-
sure that it is the latest version that is shown on the
log.com/ACE page.
1. Install the latest version of ACE software. In the ACE Setup
window, ensure that the SDP Drivers, LRF Drivers, and NET
4.8 installations are selected (see

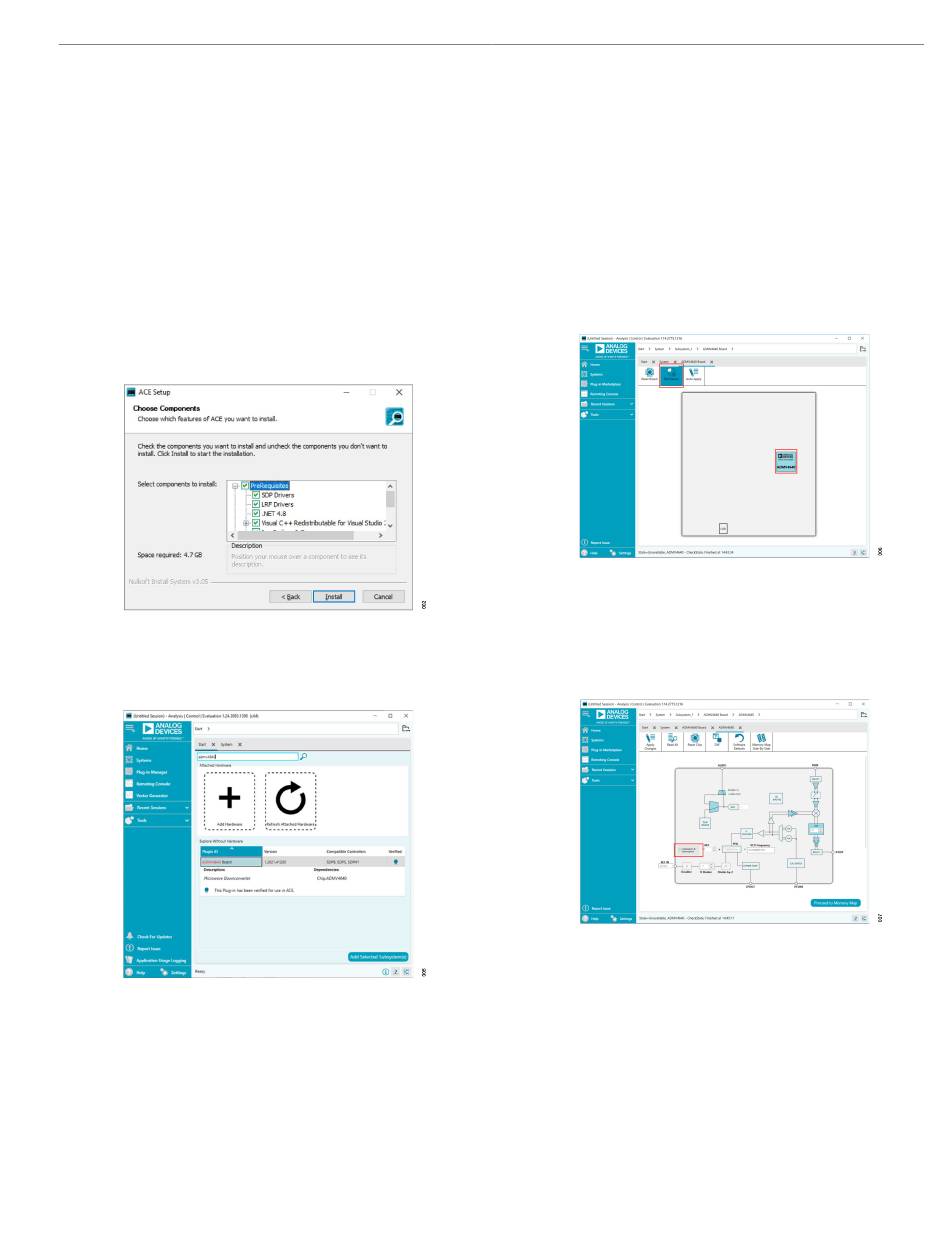

Figure 3. Drivers to Install with ACE Software
2. Open the ACE software and the EVAL-ADMV4640Z plugin
appears (see Figure 4).
Figure 4. EVAL-ADMV4640Z Plugin Window

CONFIGURING THE BOARD

To set up the EVAL-ADMV4640Z, take the following steps:
1. Connect the SDP-S controller board to the J3 connectors on the
EVAL-ADMV4640Z.
2. Connect the USB cable to the PC and then to the
controller board.
analog.com
ACE software is installed before
www.ana-
Figure 3). Then click Install.
SDP-S
EVAL-ADMV4640
3. Connect the 5 V clip lead on the power supply to the red
VCC_5V test point on the EVAL-ADMV4640Z, and connect
the GND clip lead on the power supply to the black GND1
test point. The power supply current limiting must be set to
approximately 500 mA.
4. Open the ACE software. The ADMV4640 Board plugin ap-
pears in the Attached Hardware section. Double-click the
EVAL-ADMV4640Z plugin. The ADMV4640 Board tab opens
(see Figure 5).
5. Click off the Poll Device button and double-click the
ADMV4640 button (see Figure
Figure 5. ADMV4640 Board Tab
6. The ADMV4640 block diagram appears (see
7. Click the Initialization & Optimization button in the
ADMV4640 block diagram to initialize the device before opera-
tion.
Figure 6. ADMV4640 Block Diagram in the ACE Software
8. To set up the RF, use the following settings and measure the
output at the IFOUT port:
REF_IN port: reference frequency = 25 MHz, 3 dBm, and dc
►
block is needed.
RF input: RF frequency = 12 GHz, −30 dBm.
►
The gain is at minimum attenuation. Note that the chip tem-
►
perature is higher than 25°C for the reference frequency and
RF frequency conditions and there is part to part variation.
The gain may be lower than the typical specifications in the
ADMV4640 data sheet.
5).
Figure 6).
