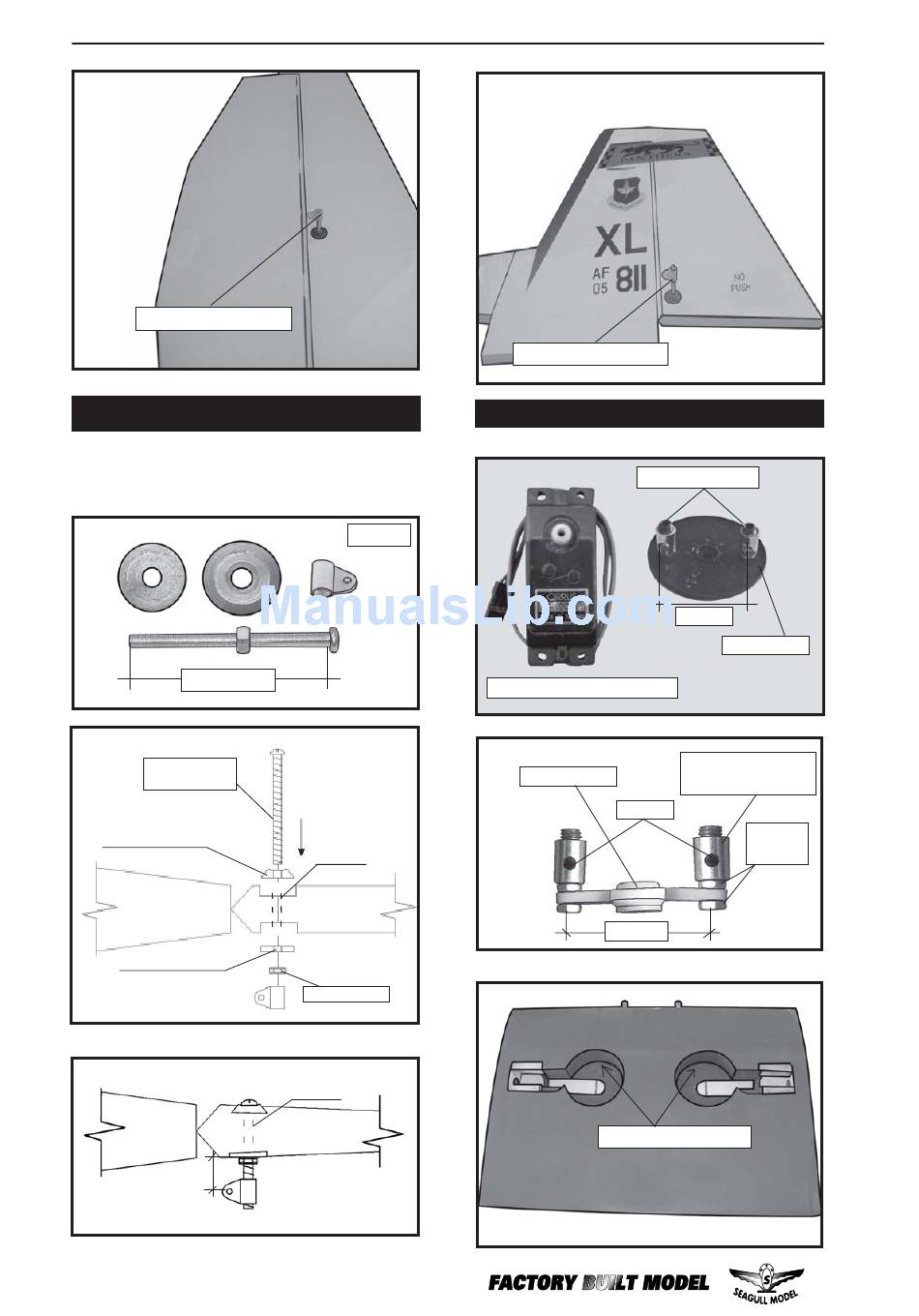

Elevator control horn.

RUDDER CONTROL HORN.

Rudder control horn:
Using the same techniques used aileron
control horn. See picture below.
3mmx35mm.
CONTROL HORN
.
M3 SCREW
.
ALUMINUM WASHER
FUSELAGE
.
ALUMINUM WASHER
Fuselage.
18mm
.
6
.
1 sets.
EPOXY.
Rudder
.
M3 LOCK NUT
EPOXY.
Rudder.
Instruction Manual.
Rudder control horn.
SERVO GEAR INSTALLATION.
Metal connector.
Servo for retractable only.
Servo arm.
3mm.
25mm.
Remove covering.
25mm.
Servo arm.
Adjustable servo
connector.
loctile
secure.
