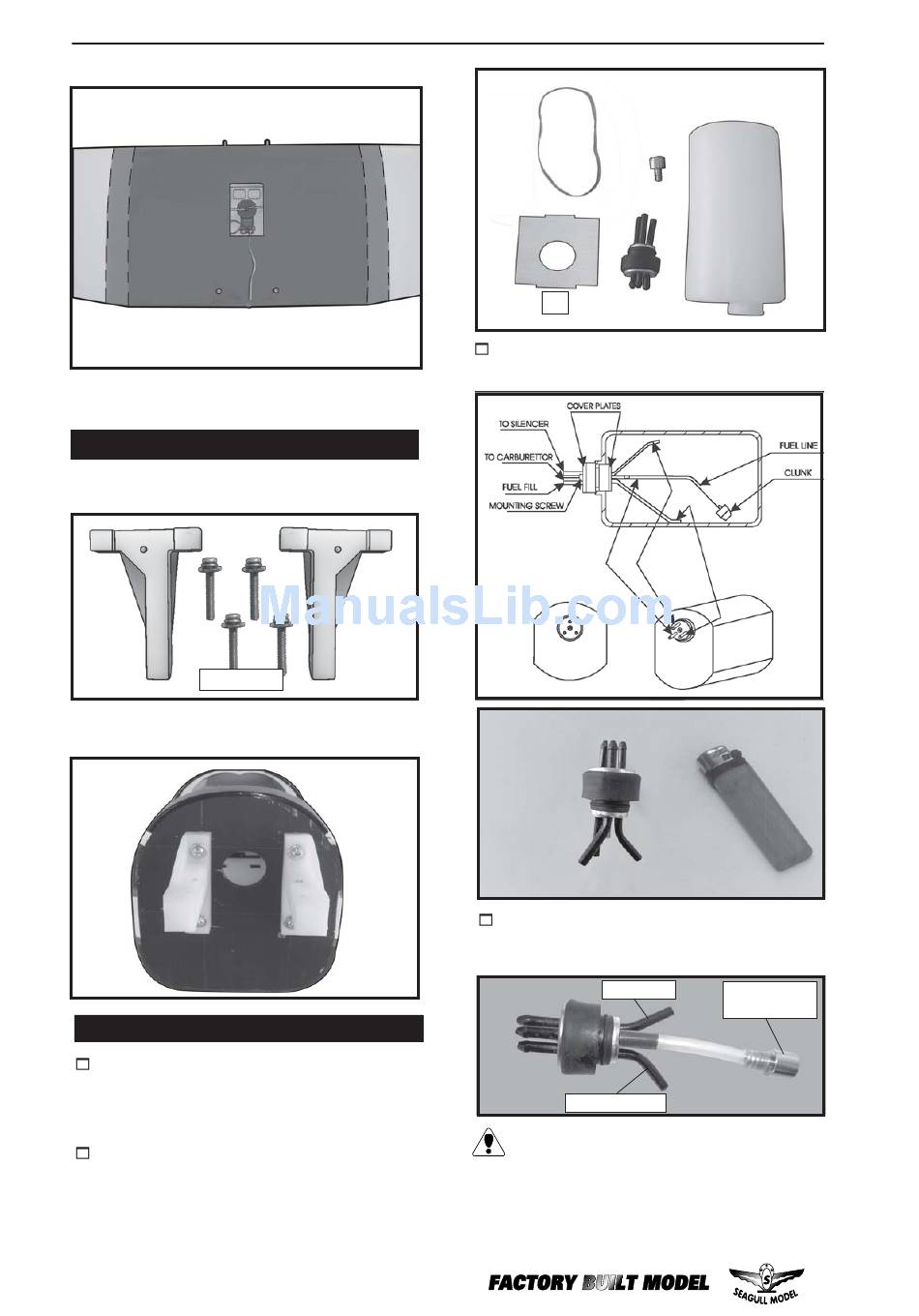

ENGINE MOUNT INSTALLATION.

See pictures below.Make yourself the
template of your engine on paper.
M4x30mm.
Mark and drill 4 holes for engine mount.
Insert 4 blind nuts to firewall.

INSTALLING THE STOPPER ASSEMBLY.

1) Using a modeling knife, carefully cut off
the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length of
silicon fuel line. Connect one end of the line to
the weighted fuel pick up and the other end to
the nylon pick up tube.
10
.
3) Carefully bend the second nylon tube up
at a 45º angle. This tube is the vent tube.
heat gun or lighter to permanently set the
angle of the tube.
tube should rest just below the top surface
of the tank. It should not touch the top of
the tank.
Instruction Manual.
A.
4) Carefully heat the vent tube using a
Vent tube.
Fuel Fill Tube.
When the stopper assembly is in-
stalled in the tank, the top of the vent
Fuel Pick up
Tube.
