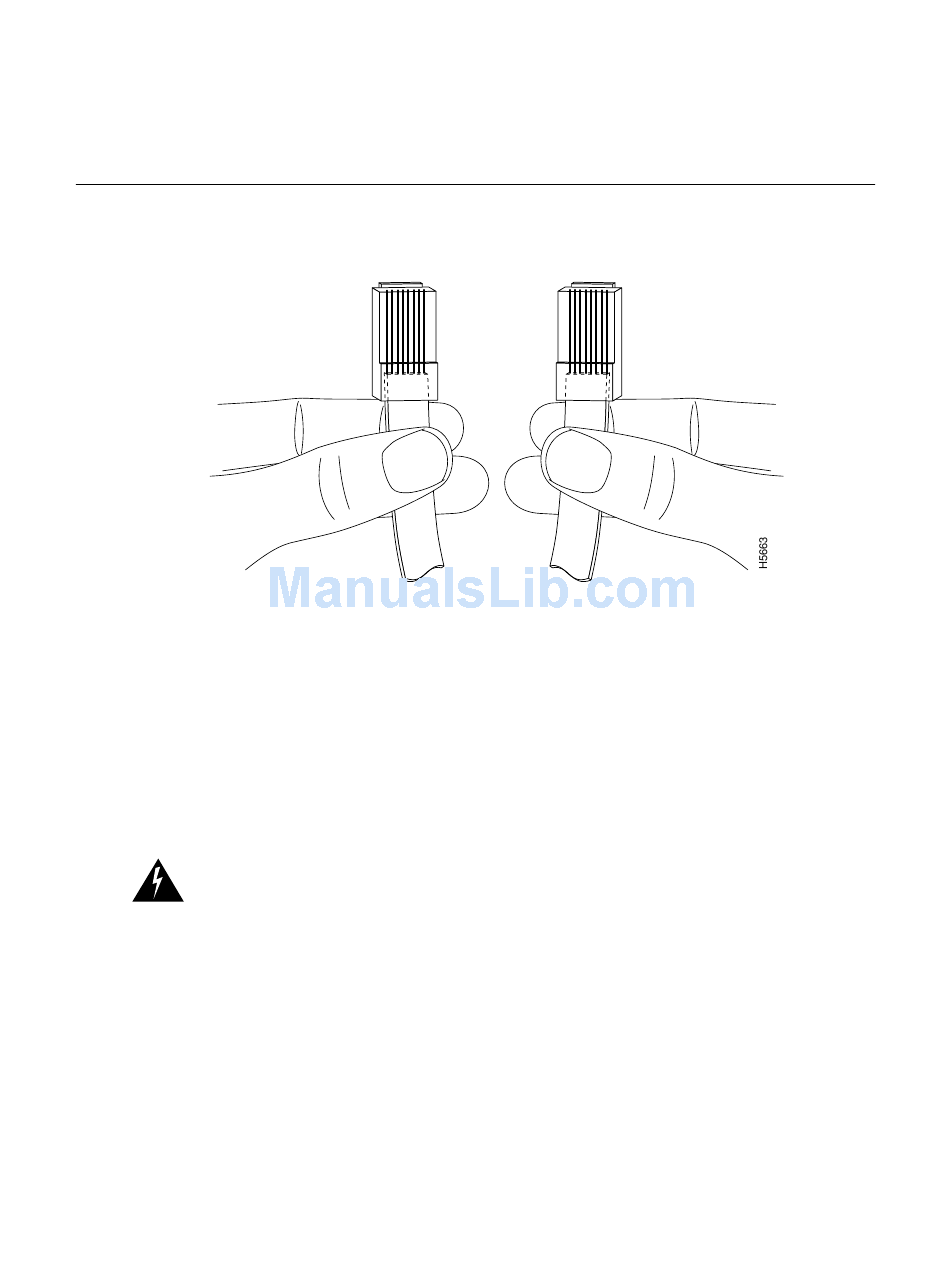

Figure 3-19
Examine the sequence of colored wires to determine the type of RJ-45 cable as follows:
Straight-through—The colored wires are in the same sequence at both ends of the cable.
Crossover—The first (far left) colored wire at one end of the cable is the third colored
wire at the other end of the cable, and the second colored wire at one end of the cable is
the sixth colored wire at the other end of the cable.

Connecting Power

Warning
source.
This section provides the procedures for connecting AC-input and DC-input power to your
Cisco 7200 VXR router.
RJ-45 Cable Identification
Read the installation instructions before you connect the system to its power
Connecting Power
Installing a Cisco 7200 VXR Router 3-29
