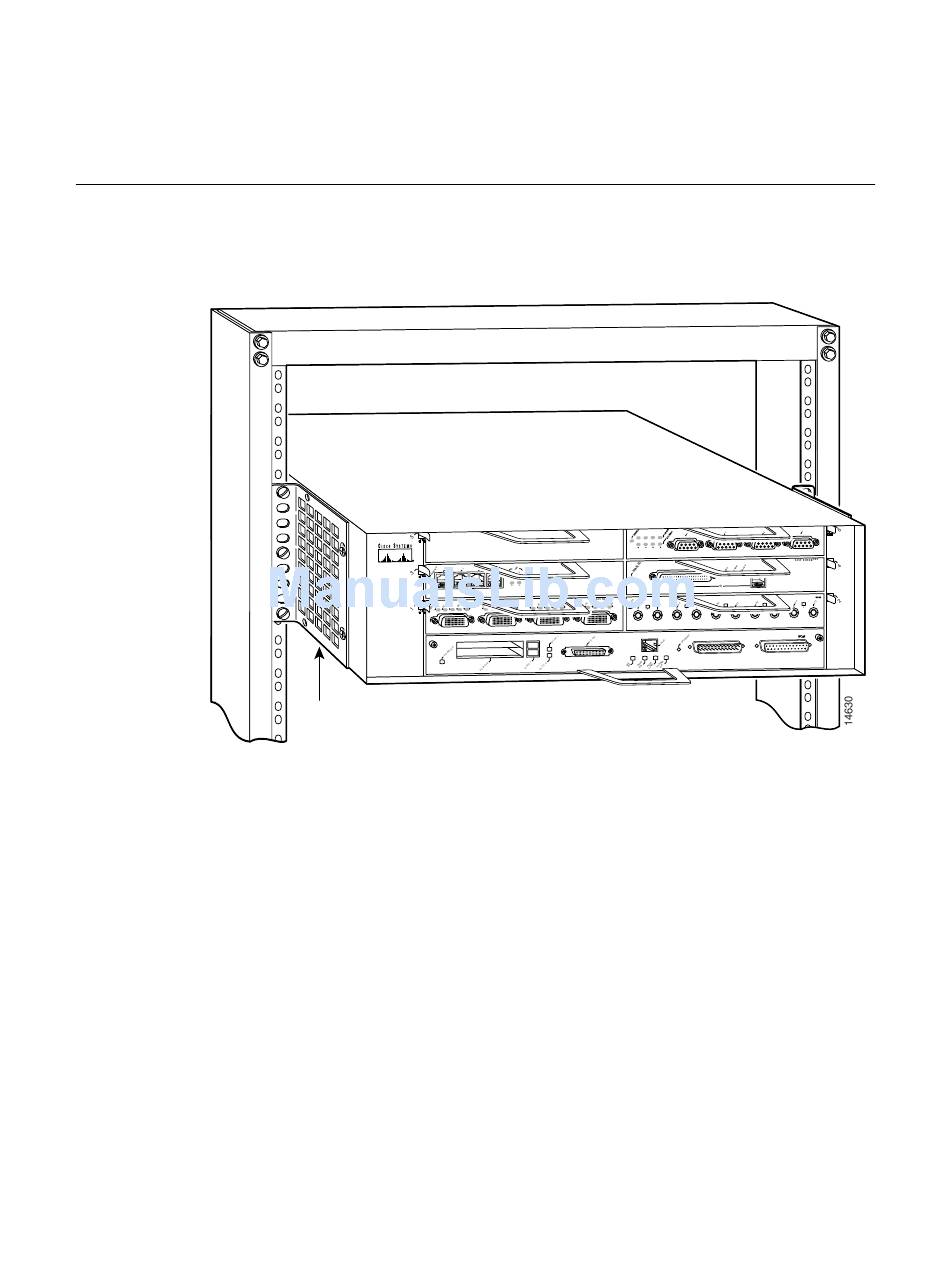

Figure 3-3
Installing the Chassis in a Telco-Type Rack—Front Installation
Shown
Cisco 7200
Series VXR
Rack-mount bracket
If you plan to install the cable-management brackets on a Cisco 7200 VXR router that you
are rack-mounting, you must install the cable-management brackets and the rack-mount
brackets on the chassis before you install the chassis in the rack.
There are two cable-management bracket configurations when you rack-mount a
Cisco 7200 VXR router from the front. In the first configuration, the cable-management
brackets are installed over the rack-mount brackets, and four screws secure both sets of
brackets to the chassis. (See Figure 3-4.) In the second configuration, two screws secure
each rack-mount bracket to the chassis, and two additional screws secure each
cable-management bracket to a rack-mount bracket. (See Figure 3-5.)
Rack-Mounting a Cisco 7200 VXR Router
ETHERNET 10BT
FAST ETHERNET INPUT/OUTPUT CONTROLLER
Installing a Cisco 7200 VXR Router 3-5
TOKEN RING
ETHERNET-10BFL
