Field-Replaceable Units
Note
supplies are contained in the configuration notes 280-Watt AC-Input Power Supply
Replacement Instructions and 280-Watt DC-Input Power Supply Replacement Instructions.
These configuration notes accompany every 280W AC-input power supply and every
280W DC-input power supply that is shipped from the factory as a FRU. These
configuration notes are also available on the Documentation CD-ROM and on CCO.
A handle on the AC and DC power supplies provide a grip point for removing and replacing
the power supply. (Figure 1-17 shows the faceplate of the AC-input power supply.
Figure 1-18 shows the faceplate of the DC-input power supply.) Two captive installation
screws secure the power supply to the chassis and seat the power supply in the router
midplane. A power OK LED indicates that the power supply is delivering +5 VDC to the
router midplane.

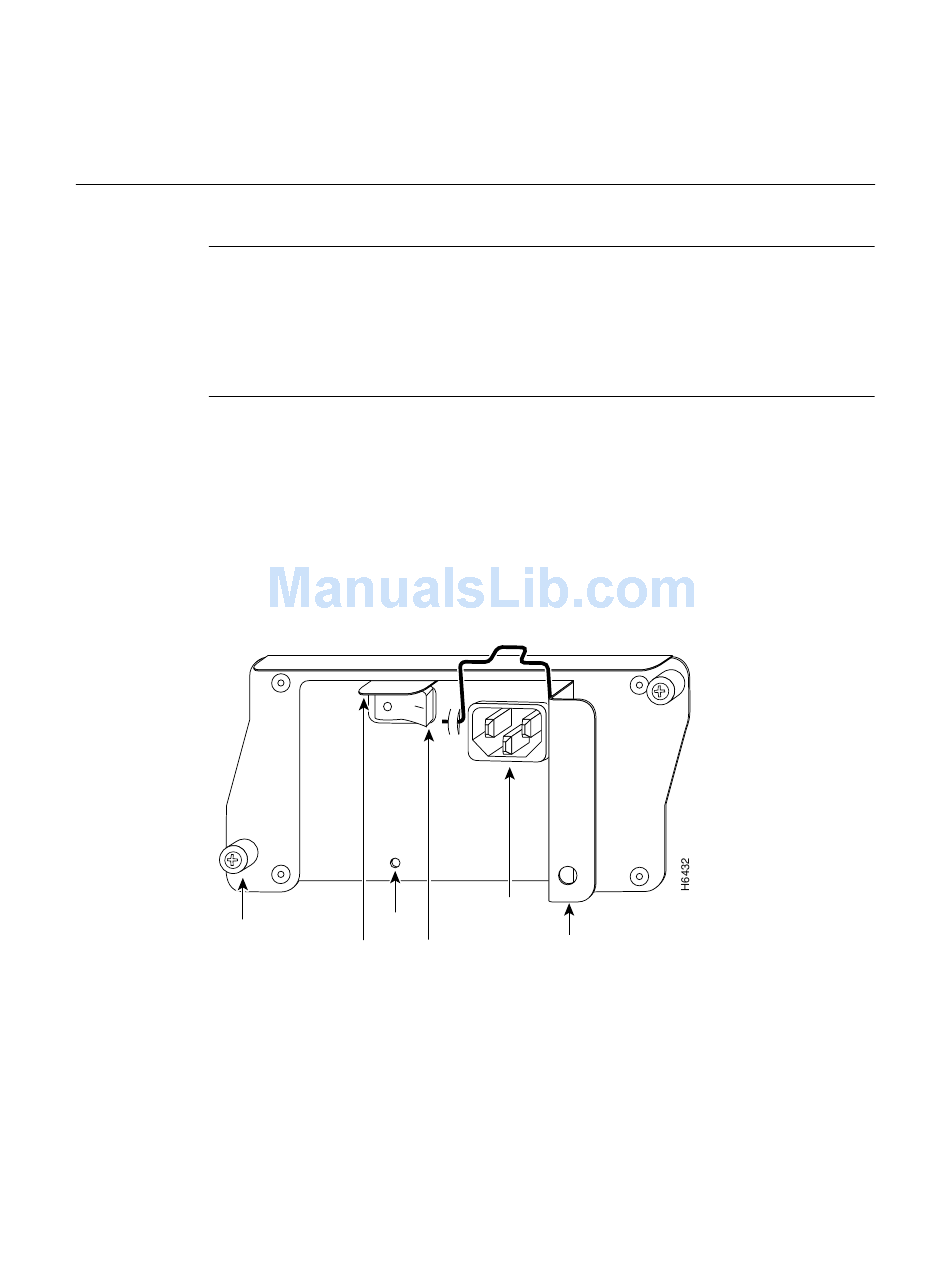

Figure 1-17
Captive
installation
screw
1-40 Cisco 7200 VXR Installation and Configuration Guide
Detailed instructions for handling and replacing the Cisco 7200 series power
Cisco 7200 Series AC-Input Power Supply
OK LED
Power
Power
switch switch
guard
AC-input
receptacle
Handle
