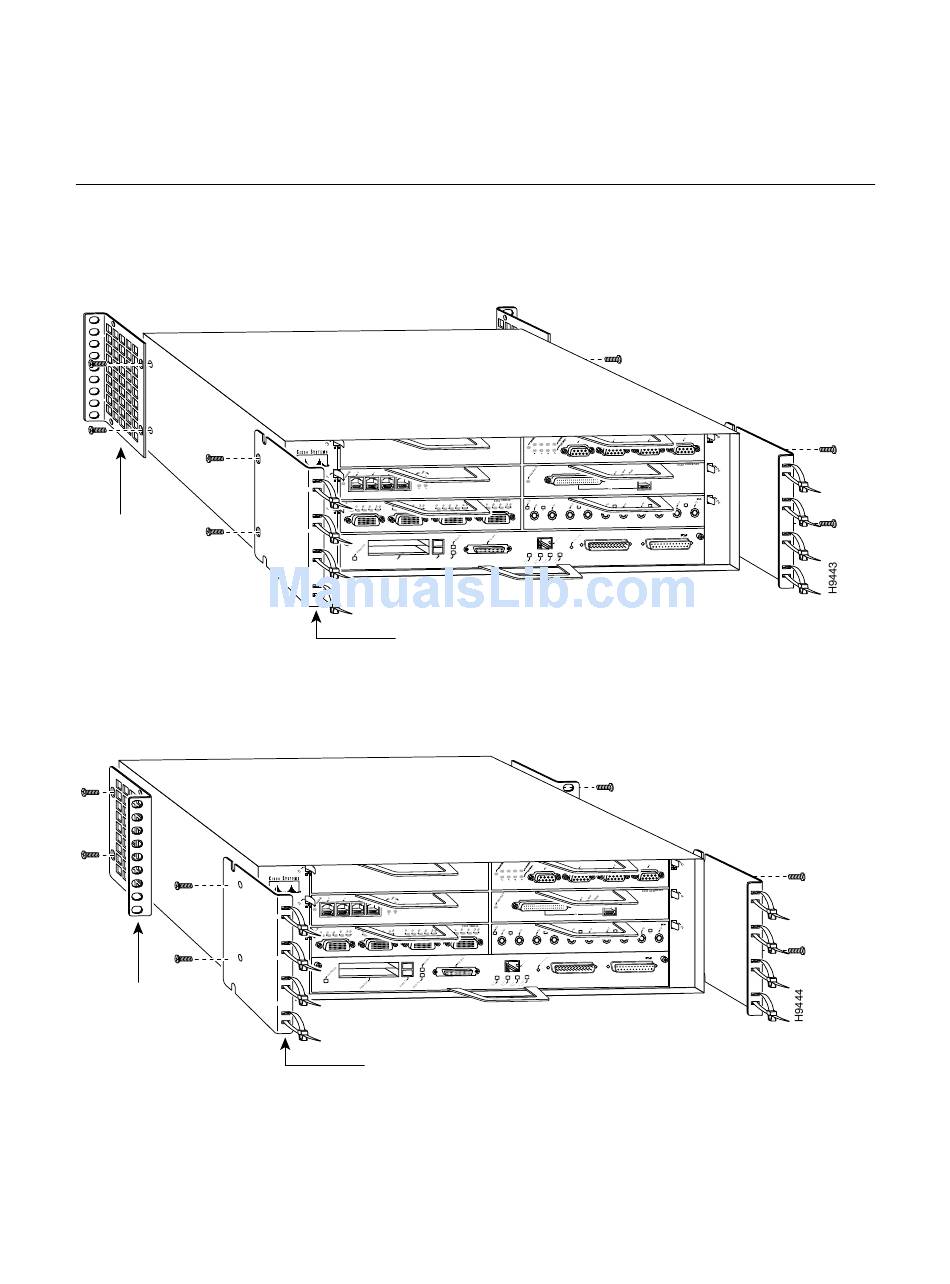

Figure 3-8
Installing the Rack-Mount Brackets on the Rear of the Chassis so the Front
Protrudes from the Rack
Rack-mount
bracket
Figure 3-9
Installing the Rack-Mount Brackets on the Rear of the Chassis so the Front
Is Recessed in the Rack
Rack-mount
bracket
Attaching the Chassis Rack-Mount and Cable-Management Brackets
Cisco 7200
Series
Cable-management bracket
Cisco 7200
Series
Cable-management bracket
ETHERNET 10BT
FAST ETHERNET INPUT/OUTPUT CONTROLLER
ETHERNET 10BT
ETHERNET-10BFL
FAST ETHERNET INPUT/OUTPUT CONTROLLER
Installing a Cisco 7200 VXR Router 3-11
TOKEN RING
ETHERNET-10BFL
TOKEN RING
