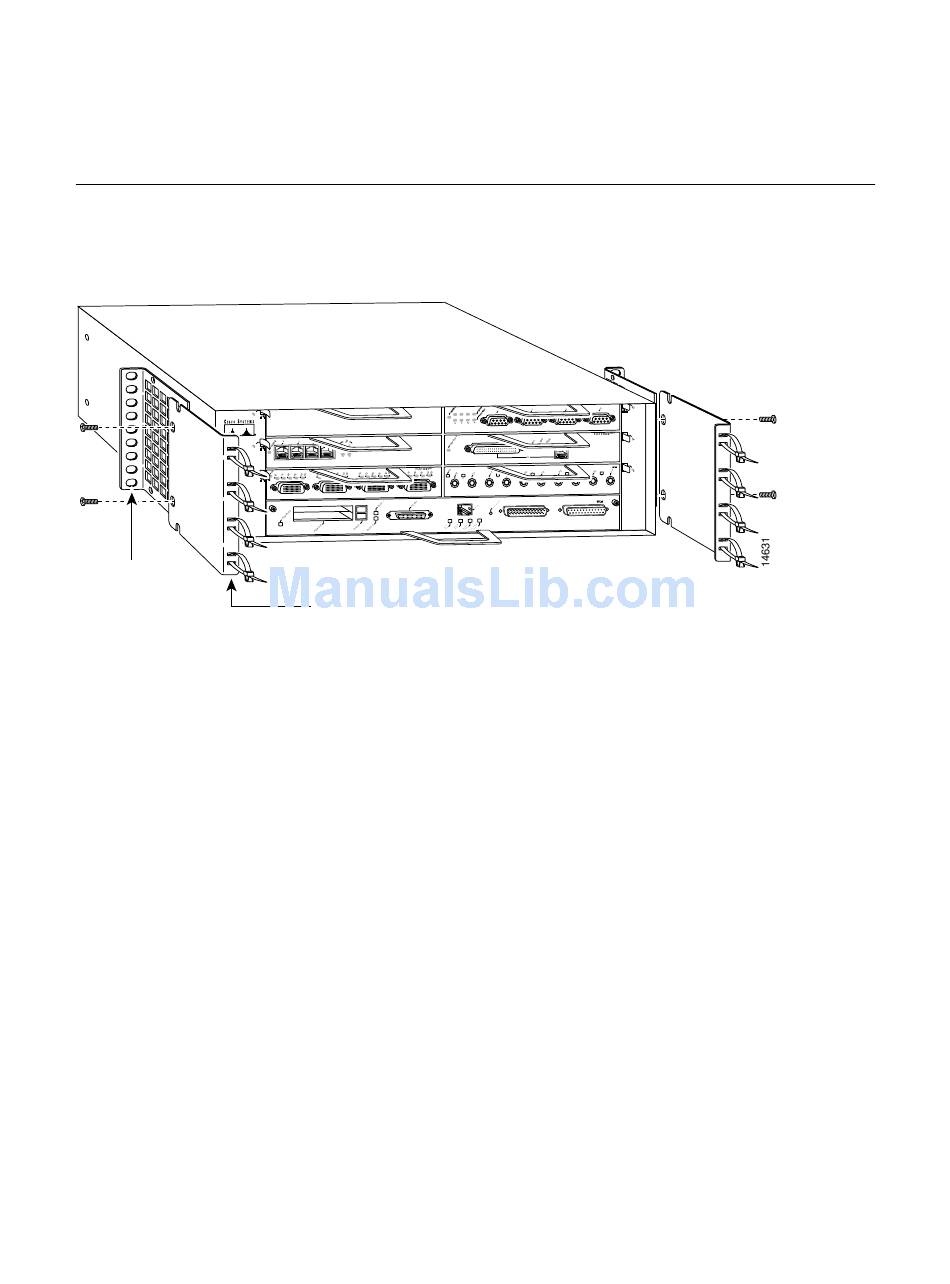

Figure 3-6 Installing the Rack-Mount Brackets on the Front of the Chassis so the Front
Protrudes from the Rack
Cisco 7200
Series VXR
Rack-mount
bracket
Step 3
Attaching the Chassis Rack-Mount and Cable-Management Brackets
ETHERNET 10BT
Cable-management bracket
If you want the front of the chassis recessed in the rack, align the first
rack-mount bracket to the threaded holes in the right side of the chassis as shown
in Figure 3-7.
Thread two M4 x 8-mm Phillips flathead screws through the bracket into the side
of the chassis and use a number 2 Phillips screwdriver to tighten the screws.
Then align the first cable-management bracket to the rack-mount bracket and
thread two M4 x 8-mm Phillips flathead screws through the two brackets. Use a
number 2 Phillips screwdriver to tighten the screws. (See Figure 3-7.)
TOKEN RING
ETHERNET-10BFL
FAST ETHERNET INPUT/OUTPUT CONTROLLER
Installing a Cisco 7200 VXR Router 3-9
