LED Indications
The lit LED indicates the selected scan pattern for hand-held and counter-top mode. In
hand-held mode, pressing the Scan Pattern Mode Selector button selects the next pattern,
and lights the corresponding LED. (The counter-top laser pattern is selectable only via
programming bar code.) When a bar code is successfully decoded, all three LEDs light
momentarily.
Single Scan Line
(Smart Raster) Pattern
Maintenance
The M2000 scanner is designed to provide reliable service over an extended period of time.
The only maintenance required is cleaning the exit window.
•
Do not allow any abrasive material to touch the window.
•
Remove any dirt particles with a damp cloth.
•
Wipe the window using a tissue moistened with ammonia/water.
•
Do not spray water or other cleaning liquids directly into the window.
2-10
TM
M2000 Series Product Reference Guide
Raster Pattern
Indicator
Indicator

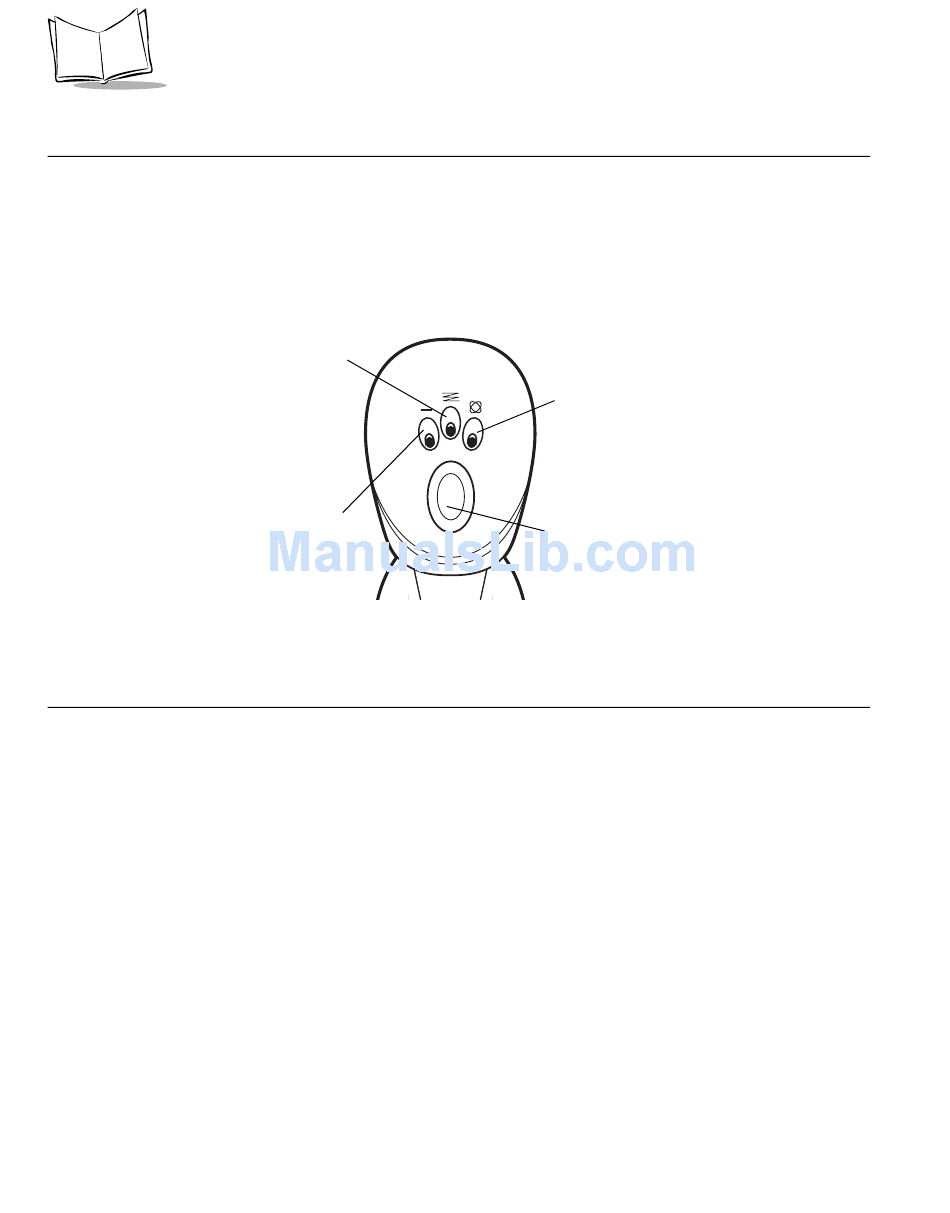

Figure 2-6. Laser Pattern Indicators
Omni/Semi-omni
Pattern Indicator
Scan Pattern Mode
Selector
