Connecting your Scanner to a Host

To connect the M2000 to your host:
1. Power down the host.
2. Connect the interface cable to the receptacle in the back of the M2000 base. Listen
for a click.
Interface Cable
3. Gently tug the cable to ensure the connector is properly secured.
4. Connect the other end of the interface cable to the host (refer to your terminal
manual to locate the correct port).
5. If necessary, plug the power supply into the power jack on the interface cable. Plug
the other end of the power supply into an AC outlet.
6. If you are using a Synapse cable, the scanner autodetects your host. If you are
using another cable, set the M2000 to communicate with your particular POS host
by scanning the appropriate bar code(s) in
7. Power up the host.
8. Three power-up beeps sound and all three LEDs light, indicating the scanner is
operational.

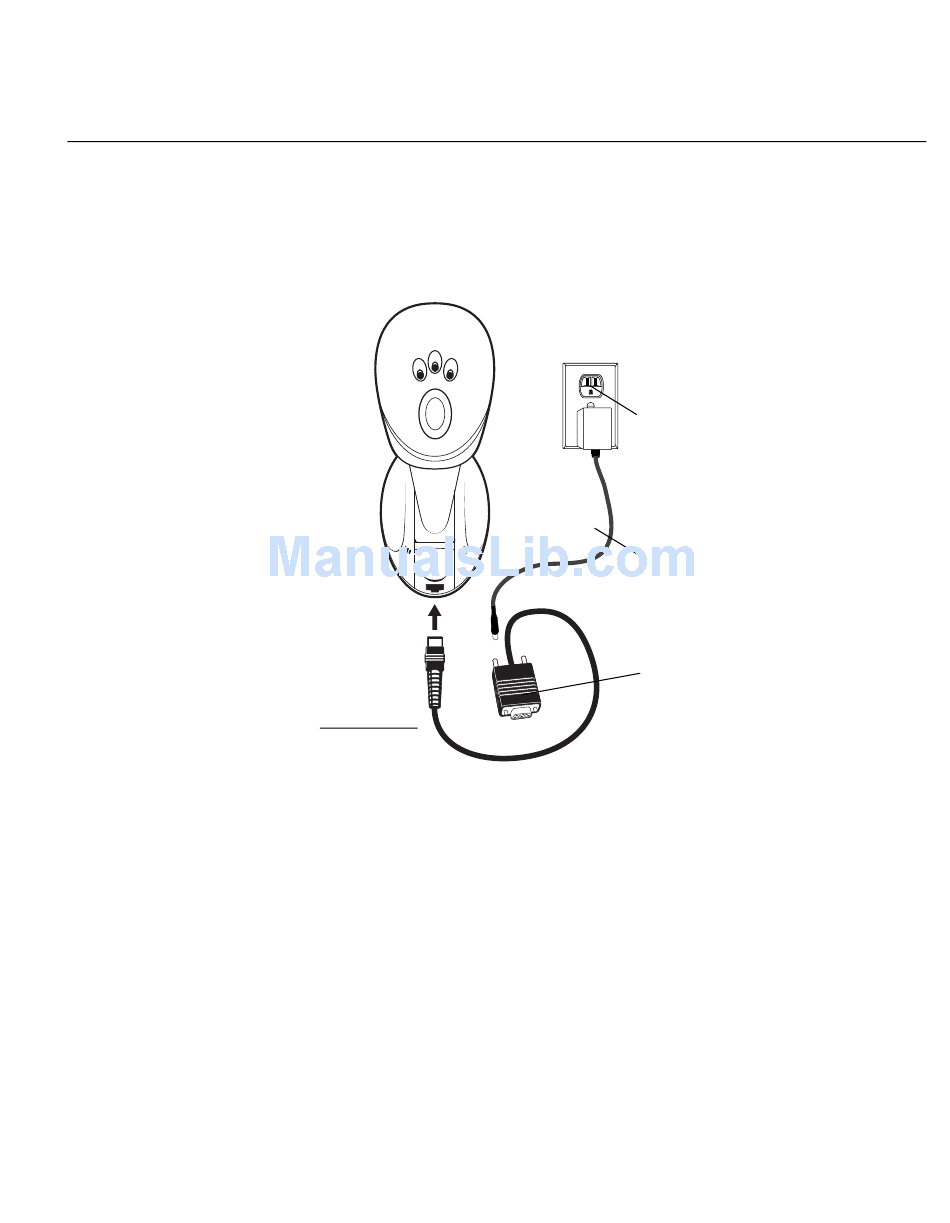

Figure 1-2. Plugging Connector into Scanner
Setting Up Your Scanner
AC Outlet
Power Supply
(Optional)
To Host
Chapter 3, Parameter Menus.
1-3
