LOCATING HEATER
This heater is designed to be mounted on a
wall. For convenience and efficiency, install
heater:
1. Where there is easy access for operation,
inspection, and service.
2. In the coldest part of room.

FASTENING HEATER TO WALL

Mounting Bracket
The mounting bracket is located on back panel
of heater (see Figure 5). It has been taped
there for shipping. Remove mounting bracket
from back panel.

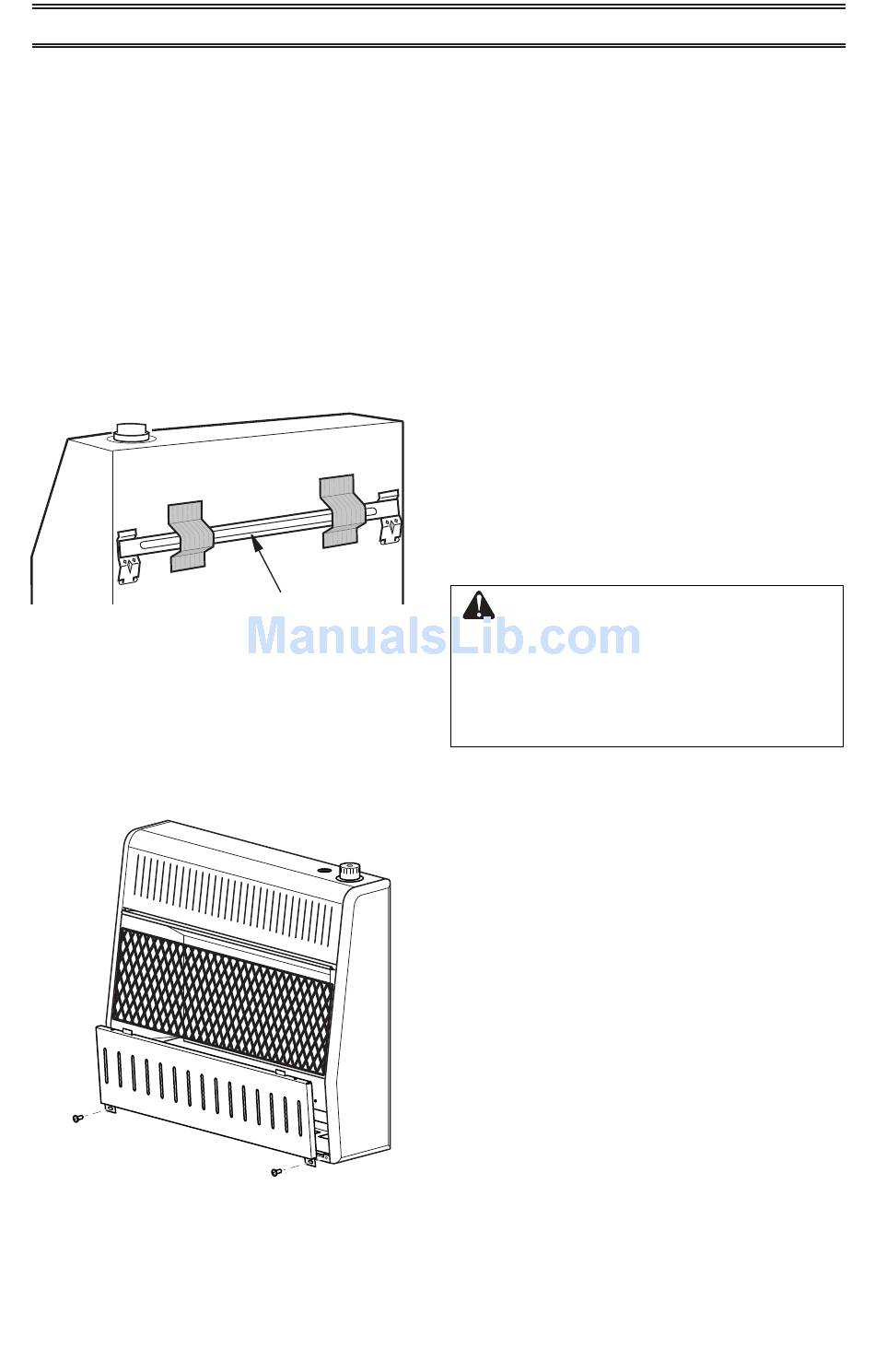

Figure 5 - Mounting Bracket Location
Removing Front Panel of Heater
1. Remove two screws near bottom corners
of lower front panel.
2. Pull bottom of lower front panel forward,
then down (see Figure 6).
Figure 6 - Removing Front Panel Of
200218-01A
INSTALLATION
Mounting Bracket
Heater
www.usaprocom.com
Methods For Attaching Mounting
Bracket To Wall
Use only the last hole on each end of mount-
ing bracket to attach bracket to wall. Attach
mounting bracket to a wall only in one of two
ways:
1. Attaching to wall stud: This method pro-
vides the strongest hold. Insert mounting
screws through mounting bracket and into
wall studs.
2. Attaching to wall anchor: This method
allows you to attach mounting bracket to
hollow walls (wall areas between studs)
or to solid walls (concrete or masonry).
Decide which method better suits your needs.
Either method will provide a secure hold for
the mounting bracket.
Marking Screw Locations
1. Tape mounting bracket to wall where
heater will be located. Make sure mount-
ing bracket is level.
WARNING: Maintain minimum
clearances shown in Figure
4, page 10. If you can, provide
greater clearances from floor and
joining wall.
2. Mark screw locations on wall (see Figure
7). Note: Mark only last hole on each end
of mounting bracket. Insert mounting
screws through these holes only.
3. Remove tape and mounting bracket from
wall.
Attaching Mounting Bracket To Wall
Note: Wall anchors, mounting screws, and
spacers are in hardware package. The hard-
ware package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to wall studs:
1. Drill holes at marked locations using 9/64"
drill bit.
2. Place mounting bracket onto wall. Line
up last hole on each end of bracket with
holes drilled in wall.
3. Insert mounting screws through bracket
and into wall studs.
4. Tighten screws until mounting bracket is
firmly fastened to wall studs.
11
