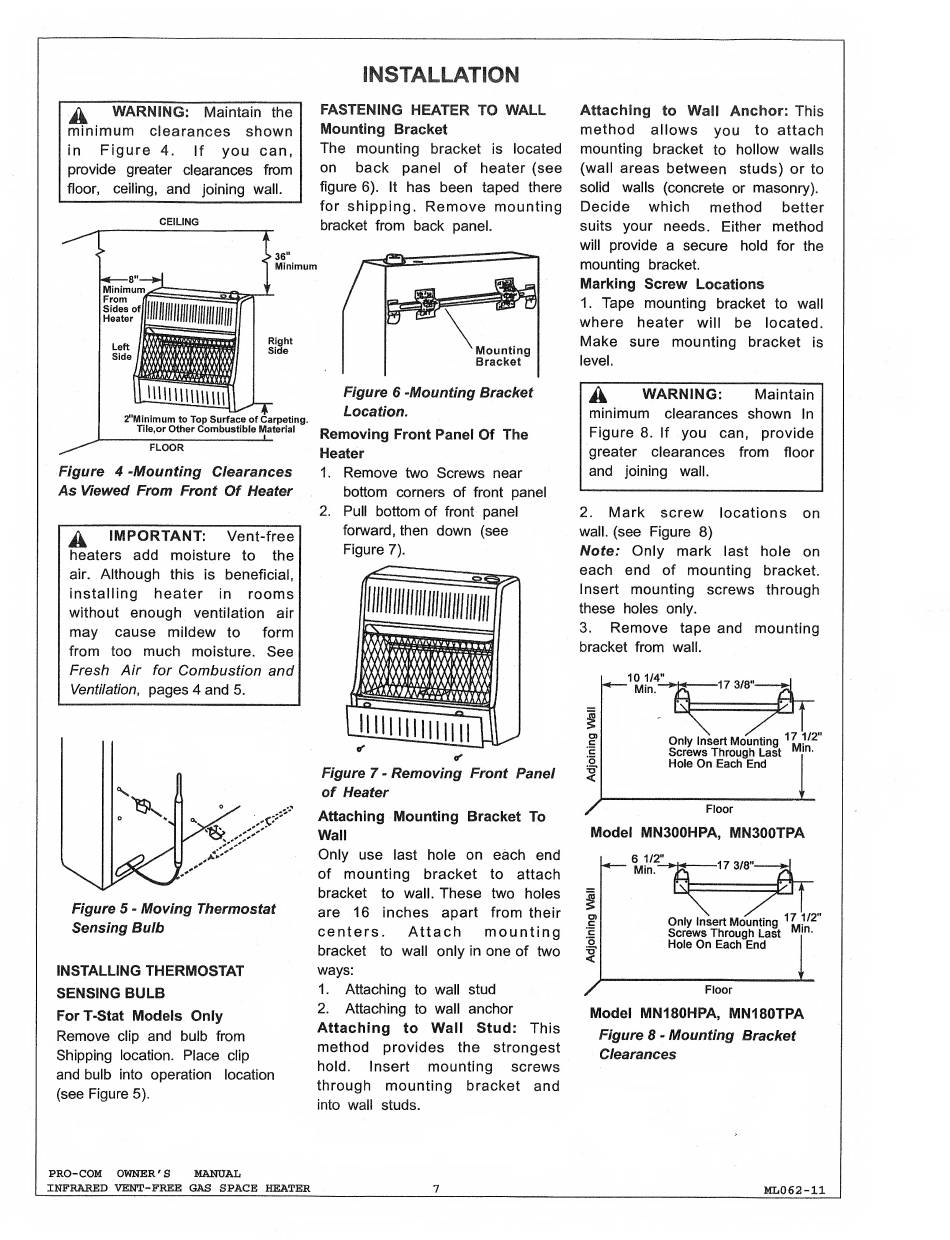

INSTALLATSON
WARNING: Maintain the
minimum clearances shown
in Figure 4. If you can,
provide greater clearances from
floor, ceiling, and joining wall.
CEILING
Figure 4 -Mounting Ciearances
As Viewed From Front Of Heater
^ IfVfPORTANT: Vent-free
heaters add moisture to the
air. Although this is beneficial,
installing heater In rooms
without enough ventilation air
may cause mildew to form
from too much moisture. See
Fresh Air for Combustion and
Ventilation, pages 4 and 5.
Figure 5 - Moving Thermostat
Sensing Buib
INSTALLING THERMOSTAT
SENSING BULB
ForT-Stat Models Only
Remove clip and bulb from
Shipping location. Place clip
and bulb into operation location
(see Figure 5).
FASTENING HEATER TO WALL
Mounting Bracket
The mounting bracket is located
on back panel of heater (see
figure 6). It has been taped there
for shipping. Remove mounting
bracket from back panel.
Figure 6 -Mounting Bracket
Location.
Removing Front Panel Of The
Heater
1. Remove two Screws near
bottom corners of front panel
2. Pull bottom of front panel
forward, then down (see
Figure 7).
Figure 7 - Removing Front Panei
of Heater
Attaching Mounting Bracket To
Wall
Only use last hole on each end
of mounting bracket to attach
bracket to wall. These two holes
are 16 inches apart from their
centers. Attach mounting
bracket to wall only in one of two
ways:
1. Attaching to wall stud
2. Attaching to wall anchor
Attaching to Wall Stud: This
method provides the strongest
hold. Insert mounting screws
through mounting bracket and
into wall studs.
Attaching to Wail Anchor: This
method allows you to attach
mounting bracket to hollow walls
(wall areas between studs) or to
solid walls (concrete or masonry).
Decide which method better
suits your needs. Either method
will provide a secure hold for the
mounting bracket.
Marking Screw Locations
1. Tape mounting bracket to wall
where heater will be located.
Make sure mounting bracket is
level.
"a WARNING: Maintain
minimum clearances shown In
Figure 8. If you can, provide
greater clearances from floor
and joining wall.
2. Mark screw locations on
wall, (see Figure 8)
Note: Only mark last hole on
each end of mounting bracket.
Insert mounting screws through
these holes only.
3. Remove tape and mounting
bracket from wall.
Model MN3O0HPA, MN300TPA
Model MN180HPA, MN180TPA
Figure 8 - Mounting Bracket
Ciearances
PRO-COM OWNER'S MANUAL
INFRARED VENT-FREE GAS SPACE HEATER_7_ ML062-11
